AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

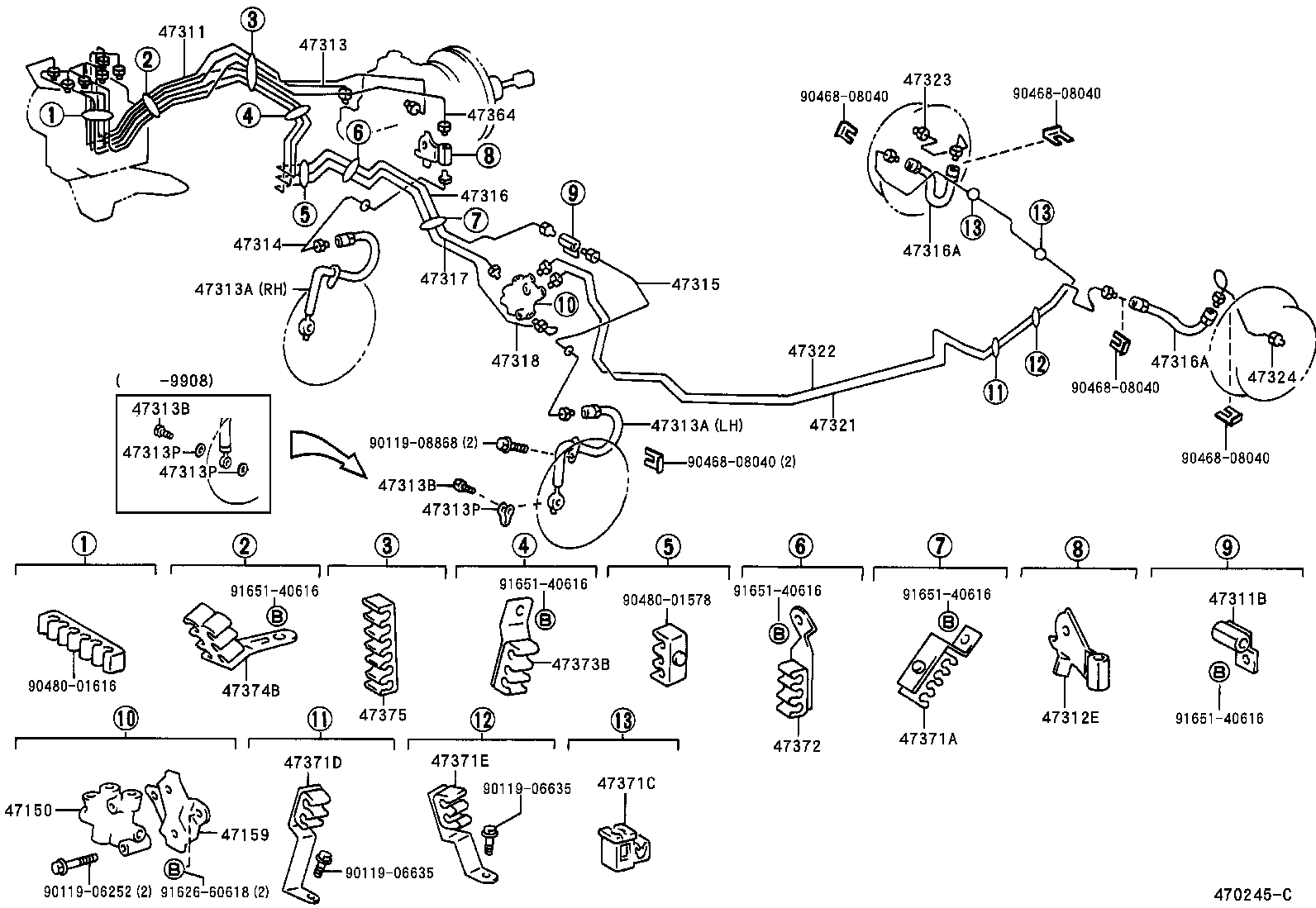

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12150 |
AE111 |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-12070 |
AE111 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-12580 |
AE111 |
1 | ||
| 47311-12620 |
AE111 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10116 |
AE111 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90904-12007 |
AE111 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-12430 |
AE111 |
1 | ||
| 47313-12390 |
AE111 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02911 |
AE111 RH |
1 | ||
| 90947-02912 |
AE111 LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02911 |
AE111 RH |
1 | ||
| 90947-02912 |
AE111 LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111 |
2 | ||
| 90401-10015 |
AE111 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AE111 |
2 | ||
| 90401-10015 |
AE111 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE111 |
4 | ||
| 47389-50020 |
AE111 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE111 |
4 | ||
| 47389-50020 |
AE111 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
AE111 |
4 | ||
| 47389-50020 |
AE111 |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-12290 |
AE111 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-12450 |
AE111 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-12270 |
AE111 |
1 | ||
| 47316-12320 |
AE111 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02921 |
AE111 |
2 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-12170 |
AE111 |
1 | ||
| 47317-12140 |
AE111 |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-12280 |
AE111 |
1 | ||
| 47318-12310 |
AE111 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-12130 |
AE111 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-12280 |
AE111 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-12250 |
AE111 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-12210 |
AE111 |
1 | ||
| 47364 - TUBE, FRONT BRAKE, NO.13 | ||||
| 47364-12110 |
AE111 |
1 | ||
| 47364-12160 |
AE111 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-12090 |
AE111 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-12150 |
AE111 |
2 | ||
| 90949-01B45 |
AE111 |
2 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47375-12040 |
AE111 |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47375-12060 |
AE111 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-12060 |
AE111 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-12010 |
AE111 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-12030 |
AE111 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01856 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-06252 | ||||
| 90119-06635 | ||||
| 90119-08868 | ||||
| 90468-08040 | ||||
| 90480-01578 | ||||
| 90480-01616 | ||||
| 91626-60618 | ||||
| 91651-40616 | ||||

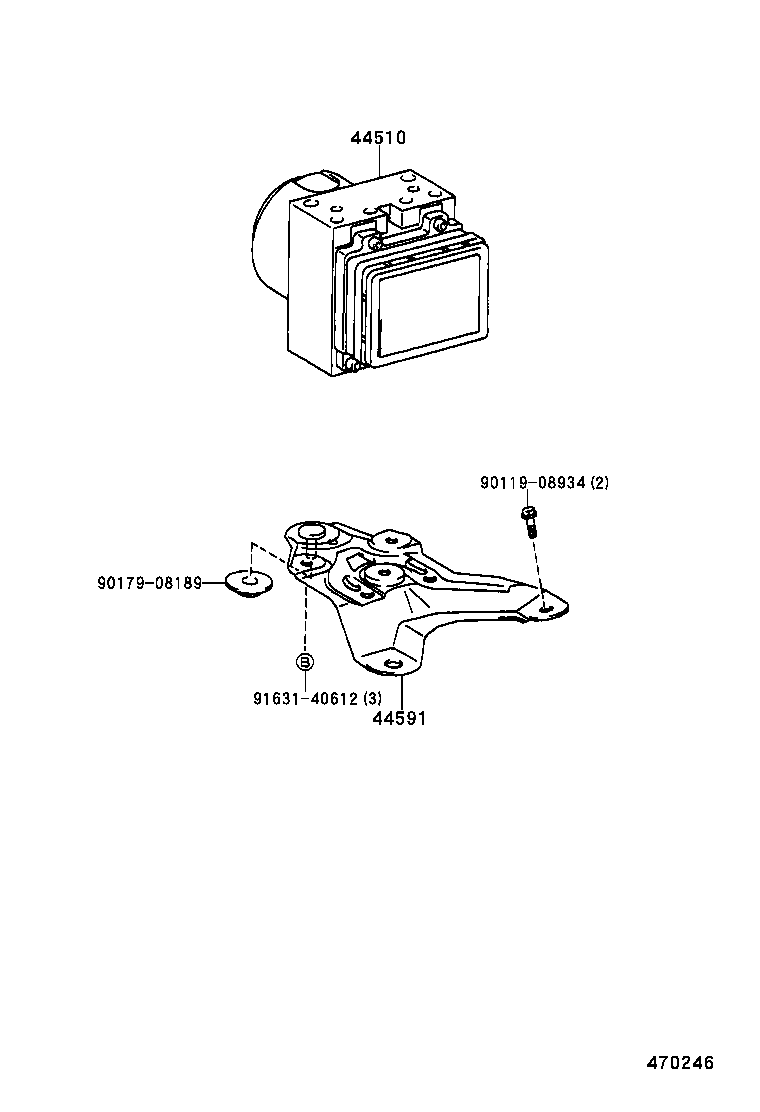

ILLUST NO. 2 OF 2(9805-9904)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-13050 |
AE111 |
1 | ||
| 44510-12210 |
AE111 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-12030 |
AE111 |
1 | ||
| 44591-12050 |
AE111 |
1 | ||
| 44590-12040 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-08934 | ||||
| 90179-08189 | ||||
| 91631-40612 | ||||

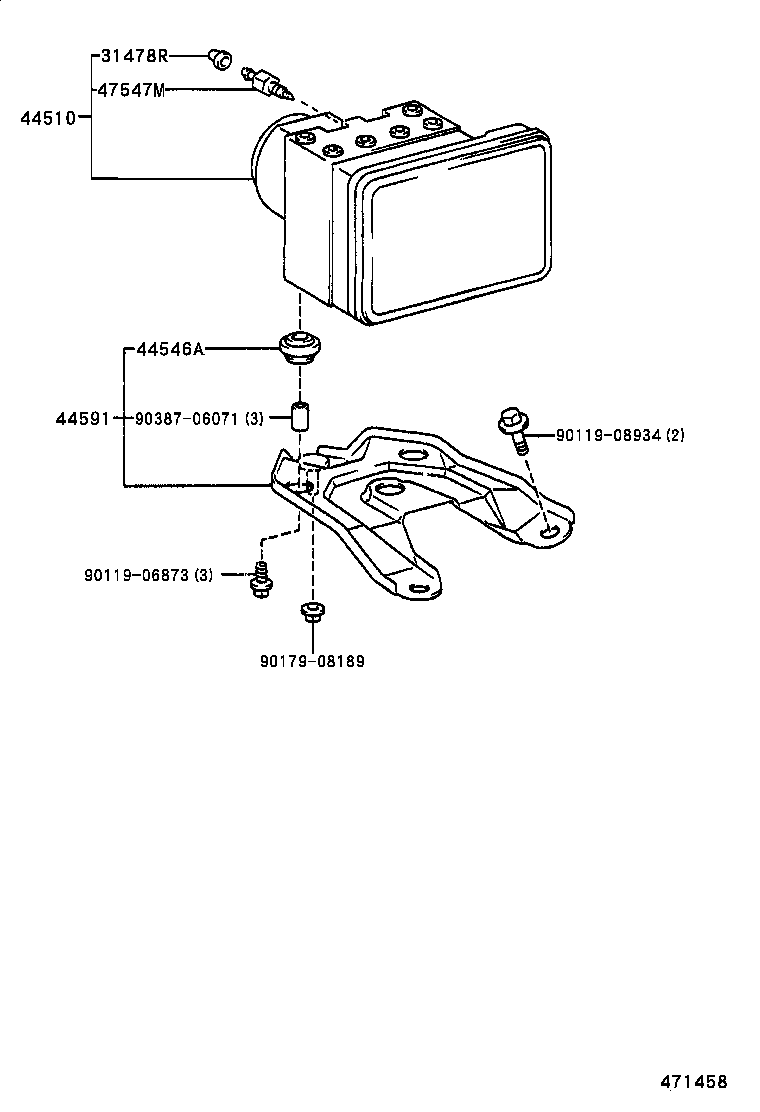

ILLUST NO. 2 OF 2(9904- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478R - CAP, BLEEDER PLUG(FOR BRAKE ACTUATOR) | ||||
| 31478-30010 |
AE111 |
1 | ||
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-13050 |
AE111 |
1 | ||
| 44510-12210 |
AE111 |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12100 |
AE111 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44590-12030 |
AE111 |
1 | ||
| 44591-12050 |
AE111 |
1 | ||
| 44590-12040 |
AE111 |
1 | ||
| 47547M - PLUG, BLEEDER(FOR BRAKE ACTUATOR) | ||||
| 47547-22020 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-06873 | ||||
| 90119-08934 | ||||
| 90179-08189 | ||||
| 90387-06071 | ||||
