AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

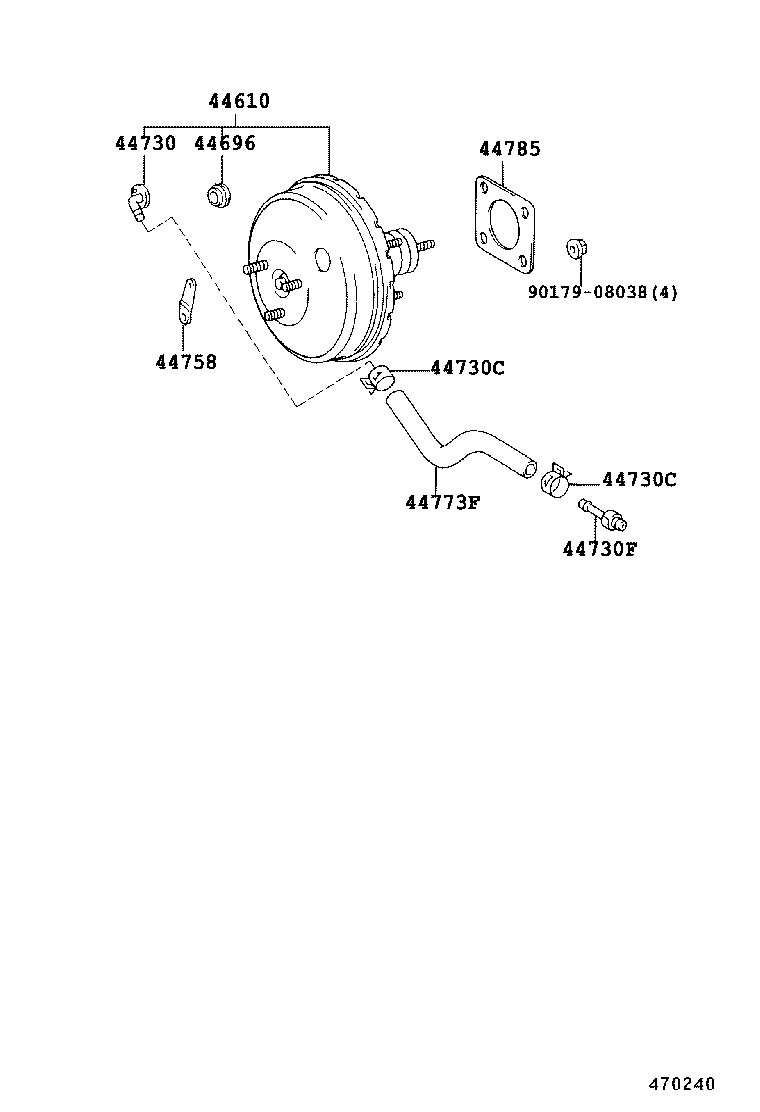

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44730F 44758 44773F 44785 9017908038
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-13050

AE111

 1
44696 - GROMMET, CHECK VALVE
90480-24517

AE111

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-12050

AE111

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AE111

 2
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

AE111

 2
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

AE111

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-12300

AE111

 1
44773F - HOSE, UNION TO CHECK VALVE
44773-12600

AE111

 1
44785 - GASKET, BRAKE BOOSTER
44785-20020

AE111

 1
Common parts
90179-08038
