AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

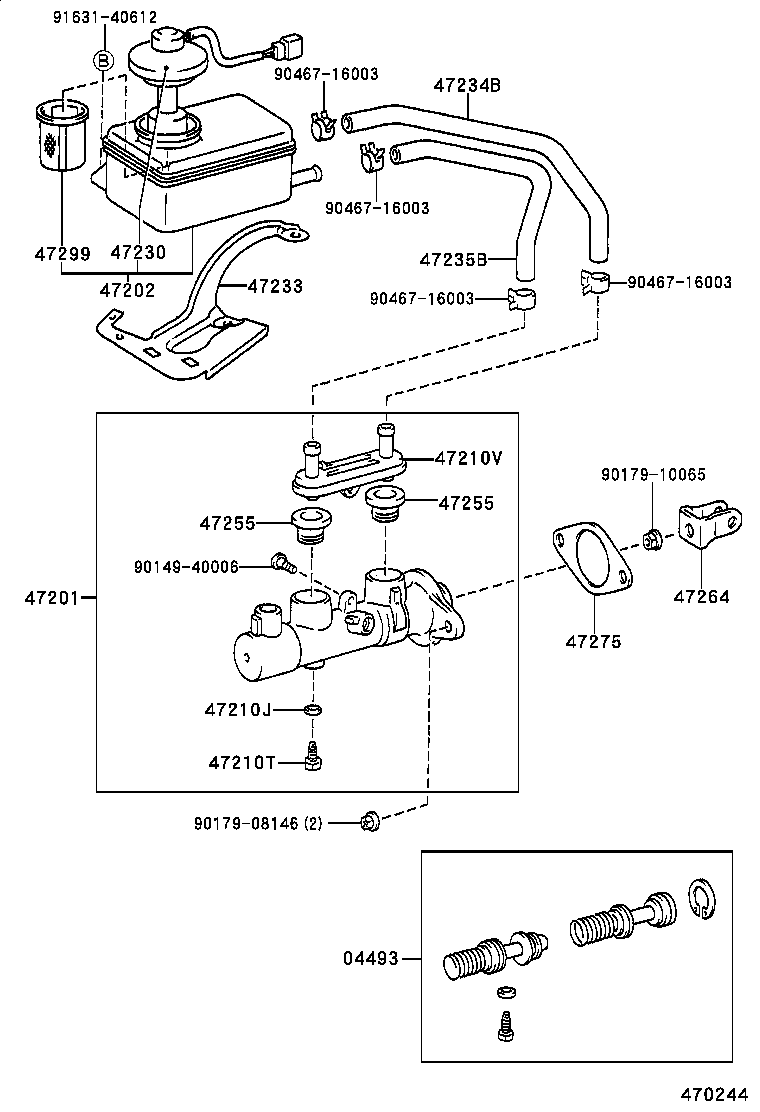

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-12200 |
AE111 |
1 | ||
| 04493-32080 |
AE111 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-44060 |
AE111 |
1 | ||
| 47201-13060 |
AE111 |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-13030 |
AE111 |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
AE111 |
1 | ||
| 90029-43001 |
AE111 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
AE111 |
1 | ||
| 47210V - UNION(FOR BRAKE MASTER CYLINDER) | ||||
| 90029-40011 |
AE111 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-13030 |
AE111 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-13010 |
AE111 |
1 | ||
| 47234B - TUBE, RESERVOIR, NO.1 | ||||
| 47234-13010 |
AE111 |
1 | ||
| 47235B - TUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2 | ||||
| 47235-13010 |
AE111 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AE111 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AE111 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-20070 |
AE111 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
AE111 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-32010 |
AE111 |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| 90467-16003 | ||||
| 91631-40612 | ||||
