AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

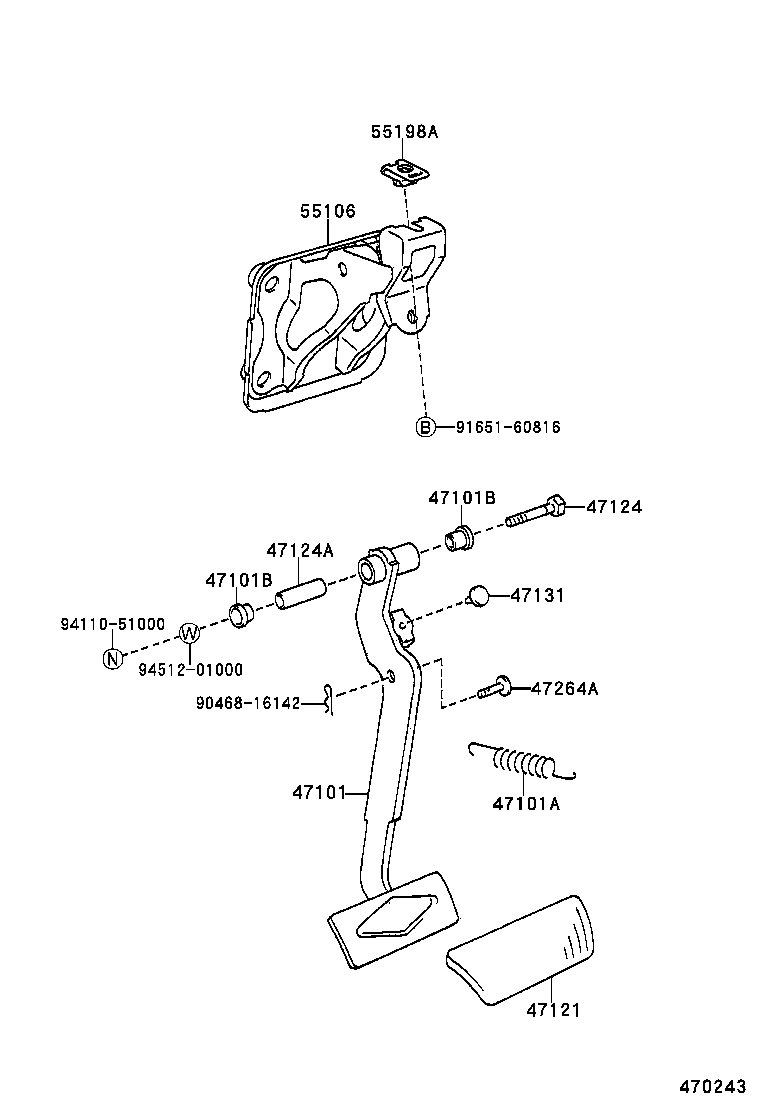

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 55198A 9046816142 9165160816 9411051000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-12540

AE111

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-14037

AE111

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AE111

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

AE111

 2
47121 - PAD, BRAKE PEDAL
47121-12020

AE111

 1
47124 - SHAFT, BRAKE PEDAL
90101-10039

AE111

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
90387-10003

AE111

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

AE111

 1
47264A - PIN(FOR PUSH ROD)
47148-12020

AE111

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-13010

AE111

 1
55198A - HOLDER, BRAKE AWAY MOUNTING BOLT
55198-13010

AE111

 1
Common parts
90468-16142
91651-60816
94110-51000
94512-01000
