AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

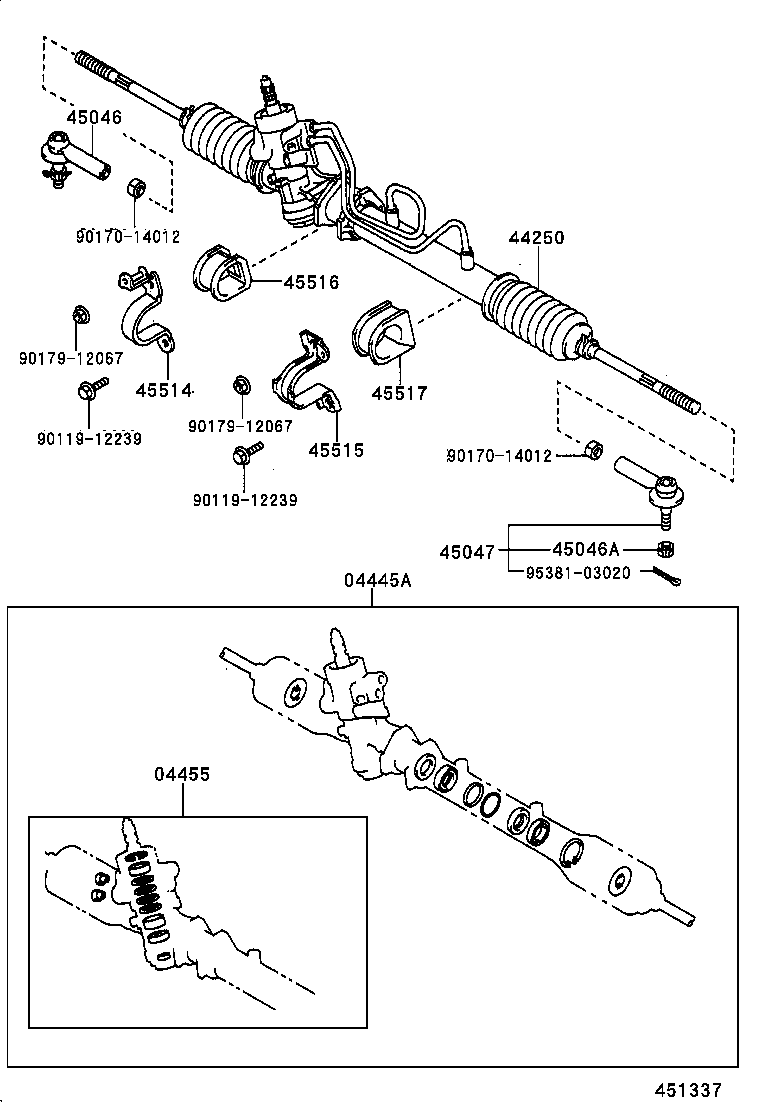

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-12150 |
AE111 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-12090 |
AE111 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-12620 |
AE111 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29305 |
AE111 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
AE111 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29305 |
AE111 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-12090 |
AE111 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-12170 |
AE111 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-12060 |
AE111 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-12111 |
AE111 |
1 | ||
| Common parts | ||||
| 90119-12239 | ||||
| 90170-14012 | ||||
| 90179-12067 | ||||
| 95381-03020 | ||||

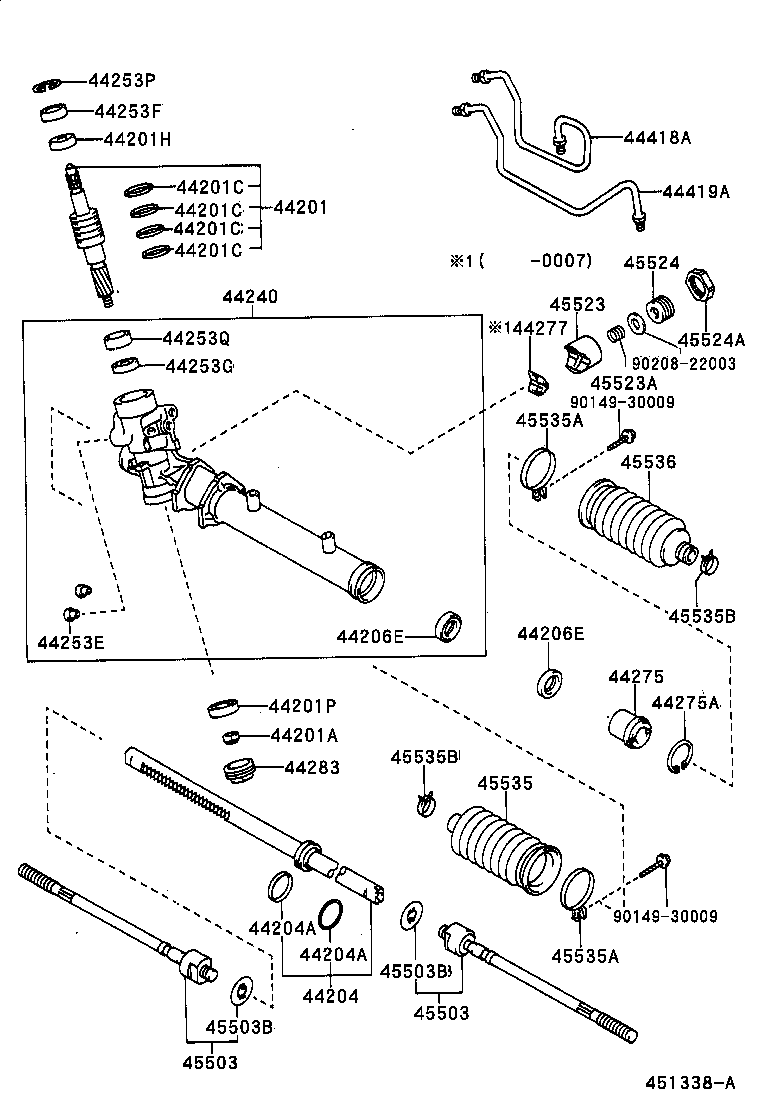

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-12371 |
AE111 |
1 | ||
| 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) | ||||
| 90179-12098 |
AE111 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE111 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE111 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE111 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33002 |
AE111 |
4 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90369-19005 |
AE111 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90363-12008 |
AE111 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-12160 |
AE111 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37004 |
AE111 OUTER |
1 | ||
| 90301-33003 |
AE111 INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37004 |
AE111 OUTER |
1 | ||
| 90301-33003 |
AE111 INNER |
1 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24009 |
AE111 |
2 | ||
| 90310-24012 |
AE111 |
2 | ||
| 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-24009 |
AE111 |
2 | ||
| 90310-24012 |
AE111 |
2 | ||
| 44240 - HOUSING ASSY, POWER STEERING RACK | ||||
| 44240-12280 |
AE111 |
1 | ||
| 44253E - SEAT, UNION(FOR POWER STEERING RACK HOUSING) | ||||
| 90410-06002 |
AE111 |
2 | ||
| 44253F - SEAL, OIL, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90311-19007 |
AE111 |
1 | ||
| 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23005 |
AE111 |
1 | ||
| 44253P - RING, HOLE SNAP(FOR POWER STEERING RACK HOUSING) | ||||
| 90521-41003 |
AE111 |
1 | ||
| 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) | ||||
| 90389-28001 |
AE111 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-12090 |
AE111 |
1 | ||
| 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) | ||||
| 90521-50002 |
AE111 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-12040 |
AE111 |
1 | ||
| 44283 - CAP, RACK HOUSING | ||||
| 44283-12010 |
AE111 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-12130 |
AE111 |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-12130 |
AE111 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19215 |
AE111 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19215 |
AE111 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE111 OD=35.2 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14009 |
AE111 OD=35.2 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-12080 |
AE111 |
1 | ||
| 45053-12010 |
AE111 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-35040 |
AE111 |
1 | ||
| 90501-30015 |
AE111 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-12041 |
AE111 |
1 | ||
| 45524-42010 |
AE111 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-33003 |
AE111 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12100 |
AE111 |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-52001 |
AE111 |
2 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90460-52001 |
AE111 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
AE111 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19019 |
AE111 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-12100 |
AE111 |
1 | ||
| Common parts | ||||
| 90149-30009 | ||||
| 90208-22003 | ||||
