AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

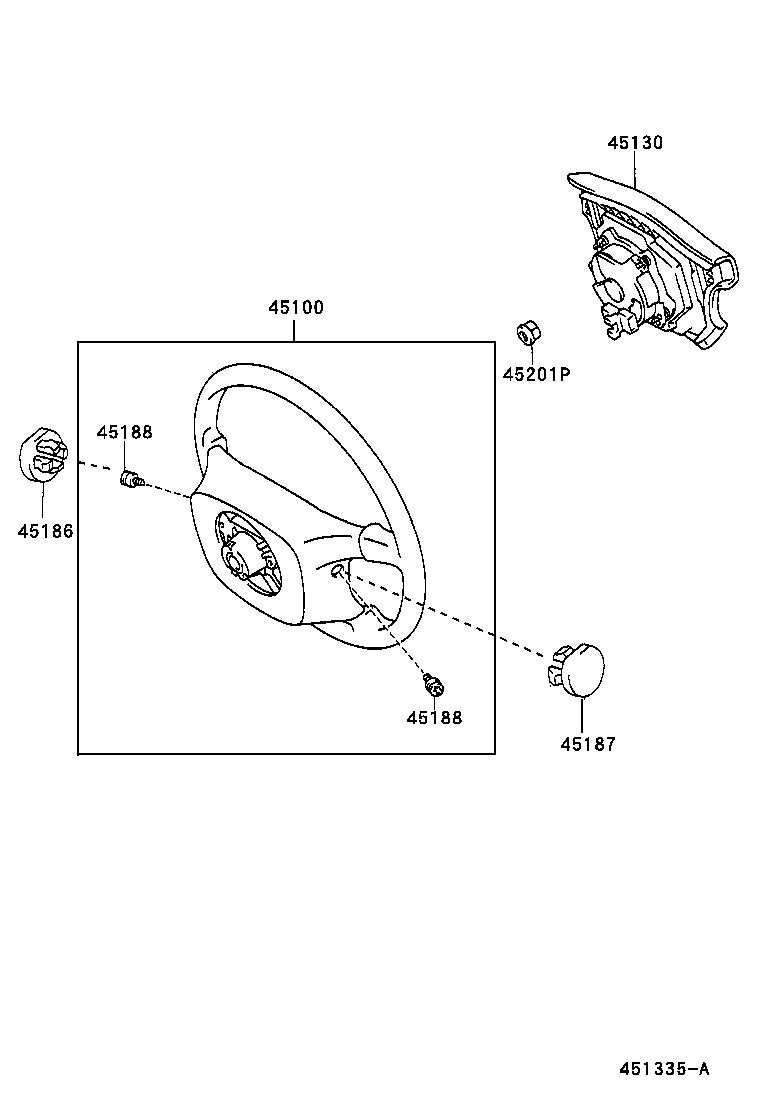

Click highlighted areas on diagram

4-SPOKE, URETHANE

diagram 45100 45130 45186 45187 45188 45188 45201P
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-13010B0

AE111

4-SPOKE,URETHANE,DK.CHARCOAL,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-1A130B0

AE111

DK.CHARCOAL,TRIM1#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-33050B1

AE111

DK.CHARCOAL,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45186-33050B1

AE111

DK.CHARCOAL,TRIM1#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

AE111

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
90148-60011

AE111

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

AE111

 1
