AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

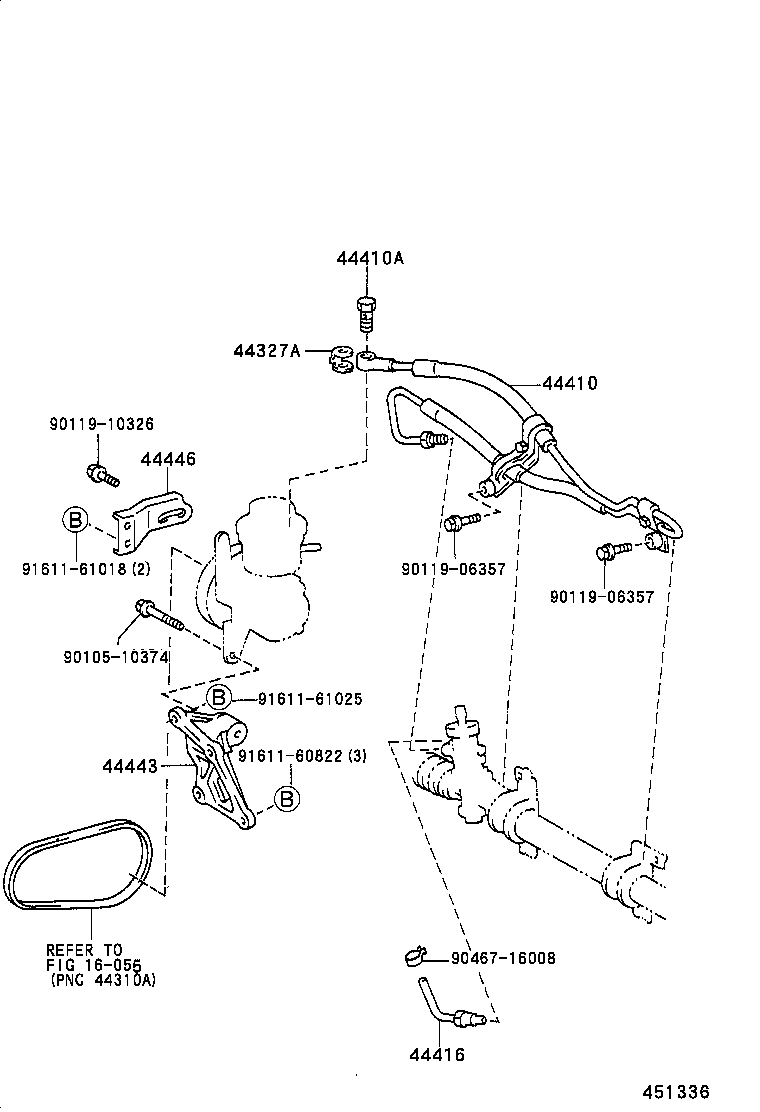

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AE111 |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-12500 |
AE111 |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16012 |
AE111 |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44406-12181 |
AE111 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12100 |
AE111 |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-12060 |
AE111 |
1 | ||
| Common parts | ||||
| 90105-10374 | ||||
| 90119-06357 | ||||
| 90119-10326 | ||||
| 90467-16008 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| Linked diagrams | ||||
| 1605 | ||||
