AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

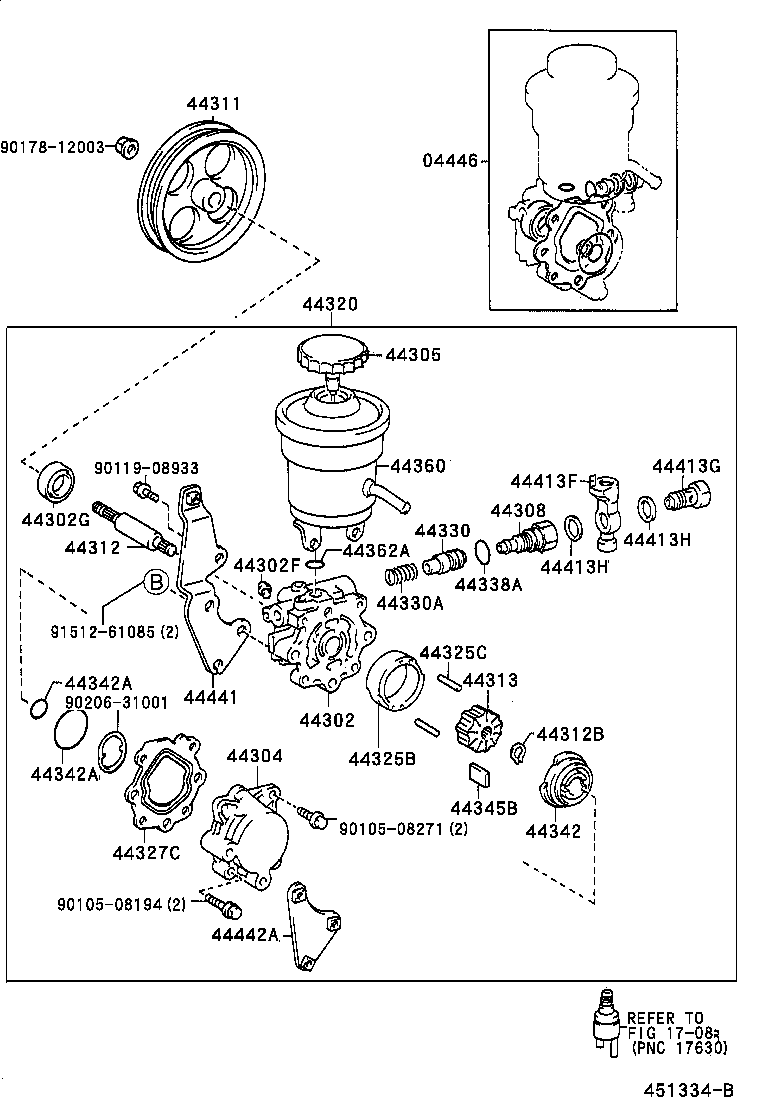

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-32011 |
AE111 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-12160 |
AE111 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
AE111 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18015 |
AE111 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-26031 |
AE111 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22040 |
AE111 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-28010 |
AE111 |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12090 |
AE111 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-32020 |
AE111 |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AE111 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-26060 |
AE111 NO MARK |
1 | ||
| 44313-26100 |
AE111 MARK 4 |
1 | ||
| 44313-26070 |
AE111 MARK 1 |
1 | ||
| 44313-26090 |
AE111 MARK 3 |
1 | ||
| 44313-26080 |
AE111 MARK 2 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-12391 |
AE111 |
1 | ||
| 44325B - RING, VANE PUMP CAM | ||||
| 44325-12290 |
AE111 MARK 2 |
1 | ||
| 44325-12270 |
AE111 NO MARK |
1 | ||
| 44325-12280 |
AE111 MARK 1 |
1 | ||
| 44325-12300 |
AE111 MARK 3 |
1 | ||
| 44325-12310 |
AE111 MARK 4 |
1 | ||
| 44325C - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04071 |
AE111 L=23.3,OD=4.0 |
2 | ||
| 44327C - GASKET, VANE PUMP HOUSING | ||||
| 44327-26010 |
AE111 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12570 |
AE111 MARK A |
1 | ||
| 44330-12590 |
AE111 MARK C |
1 | ||
| 44330-12580 |
AE111 MARK B |
1 | ||
| 44330-12620 |
AE111 MARK F |
1 | ||
| 44330-12600 |
AE111 MARK D |
1 | ||
| 44330-12610 |
AE111 MARK E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-13034 |
AE111 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-19013 |
AE111 ID=19.2,OD=22.3 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-26020 |
AE111 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
AE111 INNER |
1 | ||
| 90301-18007 |
AE111 OUTER |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-47001 |
AE111 INNER |
1 | ||
| 90301-18007 |
AE111 OUTER |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-26020 |
AE111 L=14.998 |
10 | ||
| 44345-26040 |
AE111 L=14.994 |
10 | ||
| 44345-26010 |
AE111 L=15.000 |
10 | ||
| 44345-26030 |
AE111 L=14.996 |
10 | ||
| 44345-26050 |
AE111 L=14.992 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44306-12160 |
AE111 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-11016 |
AE111 |
1 | ||
| 44413F - TUBE, PRESSURE FEED, NO.2 | ||||
| 44413-12160 |
AE111 |
1 | ||
| 44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2) | ||||
| 96341-41603 |
AE111 |
1 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
AE111 |
2 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
AE111 |
2 | ||
| 44441 - BRACKET, PUMP, FRONT | ||||
| 44441-12070 |
AE111 |
1 | ||
| 44442A - BRACKET, VANE PUMP, REAR | ||||
| 44442-12020 |
AE111 |
1 | ||
| Common parts | ||||
| 90105-08194 | ||||
| 90105-08271 | ||||
| 90119-08933 | ||||
| 90178-12003 | ||||
| 90206-31001 | ||||
| 91512-61085 | ||||
| Linked diagrams | ||||
| 1708 | ||||
