AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

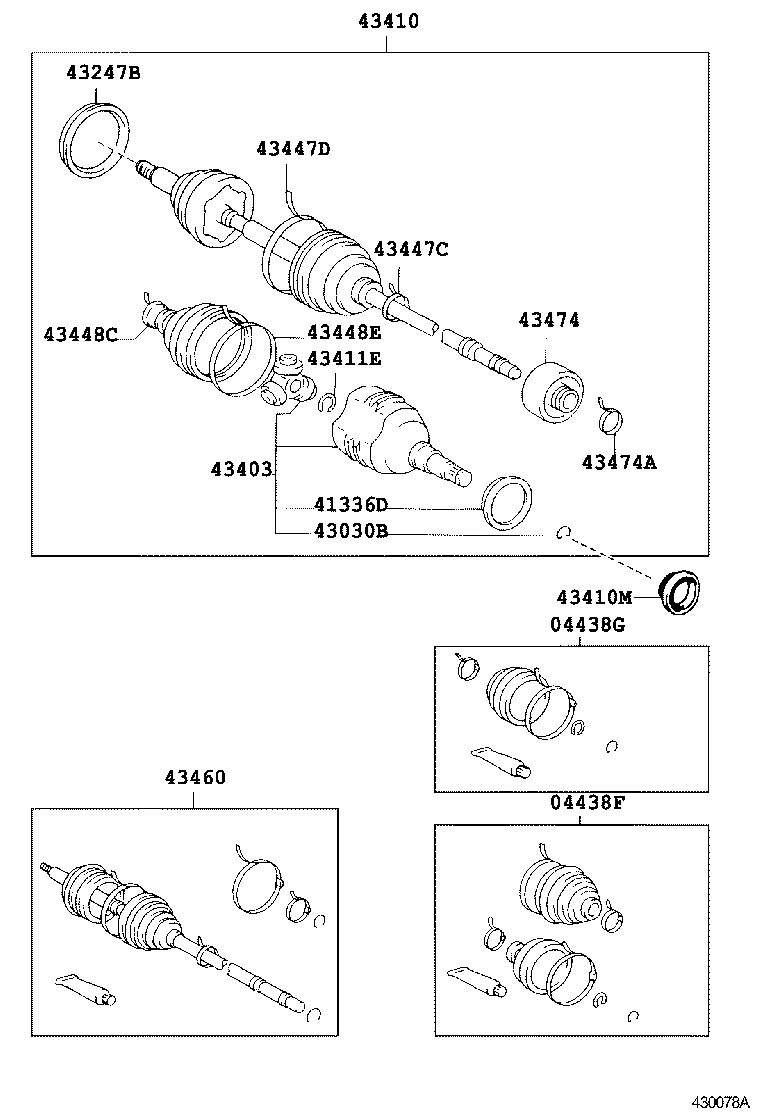

Click highlighted areas on diagram
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH | ||||
| 04438-12172 |
AE111 |
1 | ||
| 04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH | ||||
| 04438-12410 |
AE111 |
1 | ||
| 41336D - COVER, FRONT DRIVE SHAFT DUST, RH | ||||
| 41336-12010 |
AE111 |
1 | ||
| 43030B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) | ||||
| 90521-26004 |
AE111 |
1 | ||
| 43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2 | ||||
| 43247-12010 |
AE111 |
1 | ||
| 43403 - JOINT SET, FRONT AXLE INBOARD, RH | ||||
| 43403-12040 |
AE111 |
1 | ||
| 43410 - SHAFT ASSY, FRONT DRIVE, RH | ||||
| 43410-20451 |
AE111 |
1 | ||
| 43410M - OIL SEAL, FRONT DRIVE SHAFT, RH | ||||
| 90311-34012 |
AE111 |
1 | ||
| 90311-34023 |
AE111 |
1 | ||
| 43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) | ||||
| 90520-22005 |
AE111 |
1 | ||
| 43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01078 |
AE111 ID=32.7 |
1 | ||
| 42345-16010 |
AE111 ID=32.5 |
1 | ||
| 43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) | ||||
| 90949-01080 |
AE111 ID=88.2 |
1 | ||
| 42345-16020 |
AE111 ID=88.0 |
1 | ||
| 43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 42345-16010 |
AE111 |
1 | ||
| 90949-01078 |
AE111 |
1 | ||
| 43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) | ||||
| 90949-01076 |
AE111 |
1 | ||
| 42345-16040 |
AE111 |
1 | ||
| 43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH | ||||
| 43460-29168 |
AE111 |
1 | ||
| 43474 - DAMPER, DRIVE SHAFT | ||||
| 43474-12040 |
AE111 |
1 | ||
| 43474A - CLAMP (FOR DRIVE SHAFT DAMPER SETTING) | ||||
| 42345-16030 |
AE111 |
1 | ||
(9805- )

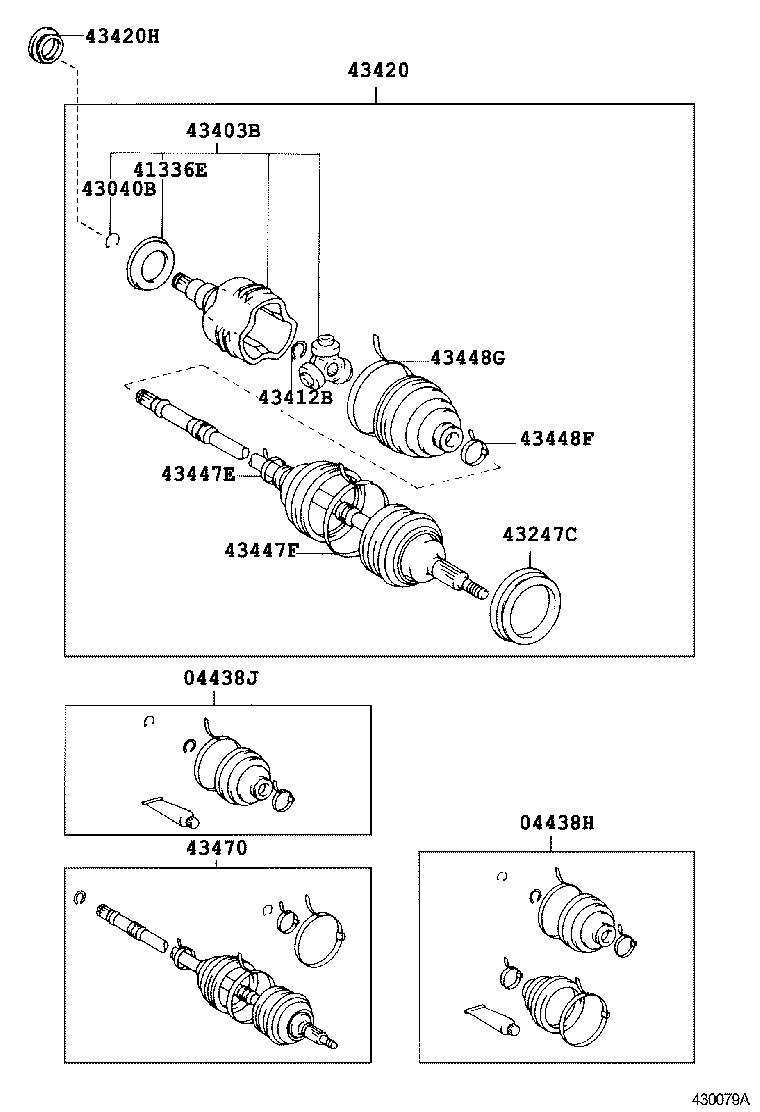

Click highlighted areas on diagram
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH | ||||
| 04438-12172 |
AE111 |
1 | ||
| 04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH | ||||
| 04438-12410 |
AE111 |
1 | ||
| 41336E - COVER, FRONT DRIVE SHAFT DUST, LH | ||||
| 41336-12010 |
AE111 |
1 | ||
| 43040B - RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT LH) | ||||
| 90521-26004 |
AE111 |
1 | ||
| 43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2 | ||||
| 43247-12010 |
AE111 |
1 | ||
| 43403B - JOINT SET, FRONT AXLE INBOARD, LH | ||||
| 43403-12040 |
AE111 |
1 | ||
| 43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) | ||||
| 90520-22005 |
AE111 |
1 | ||
| 43420 - SHAFT ASSY, FRONT DRIVE, LH | ||||
| 43420-20282 |
AE111 |
1 | ||
| 43420H - OIL SEAL, FRONT DRIVE SHAFT, LH | ||||
| 90311-34013 |
AE111 |
1 | ||
| 90311-34026 |
AE111 |
1 | ||
| 43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
AE111 ID=32.5 |
1 | ||
| 90949-01078 |
AE111 ID=32.7 |
1 | ||
| 43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) | ||||
| 42345-16020 |
AE111 ID=88.0 |
1 | ||
| 90949-01080 |
AE111 ID=88.2 |
1 | ||
| 43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 42345-16010 |
AE111 |
1 | ||
| 90949-01078 |
AE111 |
1 | ||
| 43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) | ||||
| 90949-01076 |
AE111 |
1 | ||
| 42345-16040 |
AE111 |
1 | ||
| 43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH | ||||
| 43470-29238 |
AE111 |
1 | ||
