Toyota Spacio AE111 DISC WHEEL & WHEEL CAP

Part #	Description	Period	Qty

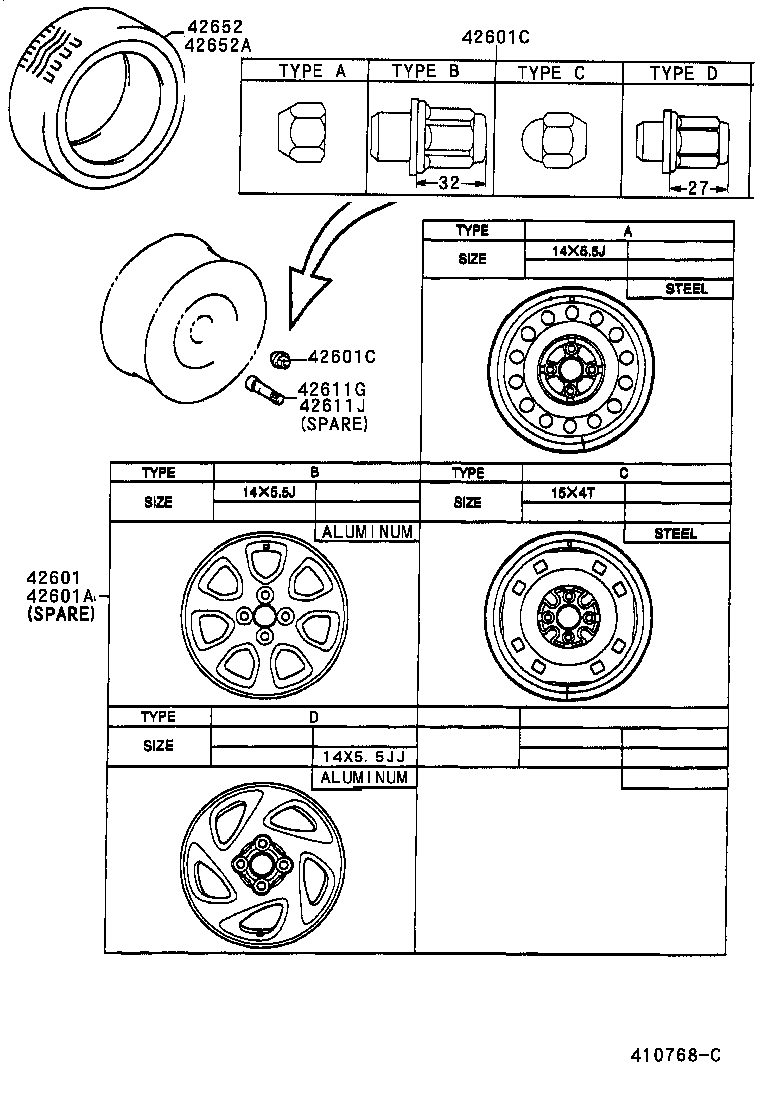

42601 - WHEEL, DISC
42611-1A14001	AE111 14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK	05/1998 - 12/2999	4
42611-1A370	AE111 14X5.5JJ,TYPE B:REFER TO ILLUSTRATION	05/1998 - 12/2999	4
42601A - WHEEL, DISC (FOR SPARE)
42611-1A010	AE111 15X4T,TYPE C:REFER TO ILLUSTRATION	05/1998 - 12/2999	1
42601C - NUT, HUB (FOR AXLE)
90942-01058	AE111 TYPE B:REFER TO ILLUSTRATION	05/1998 - 12/2999	16
90942-01007	AE111 TYPE A:REFER TO ILLUSTRATION	05/1998 - 04/1999	16
90942-01021	AE111 TYPE C:REFER TO ILLUSTRATION	04/1999 - 12/2999	16
42601C - NUT, HUB (FOR AXLE)
90942-01058	AE111 TYPE B:REFER TO ILLUSTRATION	05/1998 - 12/2999	16
90942-01007	AE111 TYPE A:REFER TO ILLUSTRATION	05/1998 - 04/1999	16
90942-01021	AE111 TYPE C:REFER TO ILLUSTRATION	04/1999 - 12/2999	16
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009	AE111	05/1998 - 12/2999	4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009	AE111	05/1998 - 12/2999	1
42652 - TIRE
42652-1A310	AE111 185/65R14 86S,*Y/H	05/1998 - 12/2999	4
42652-1A290	AE111 185/65R14 86S,B/S,D/L,T/Y,Y/H	05/1998 - 12/2999	4
42652A - TIRE (FOR SPARE)
42652-40040	AE111 T135/70D15	05/1998 - 12/2999	1

Click highlighted areas on diagram

Part #	Description	Period	Qty

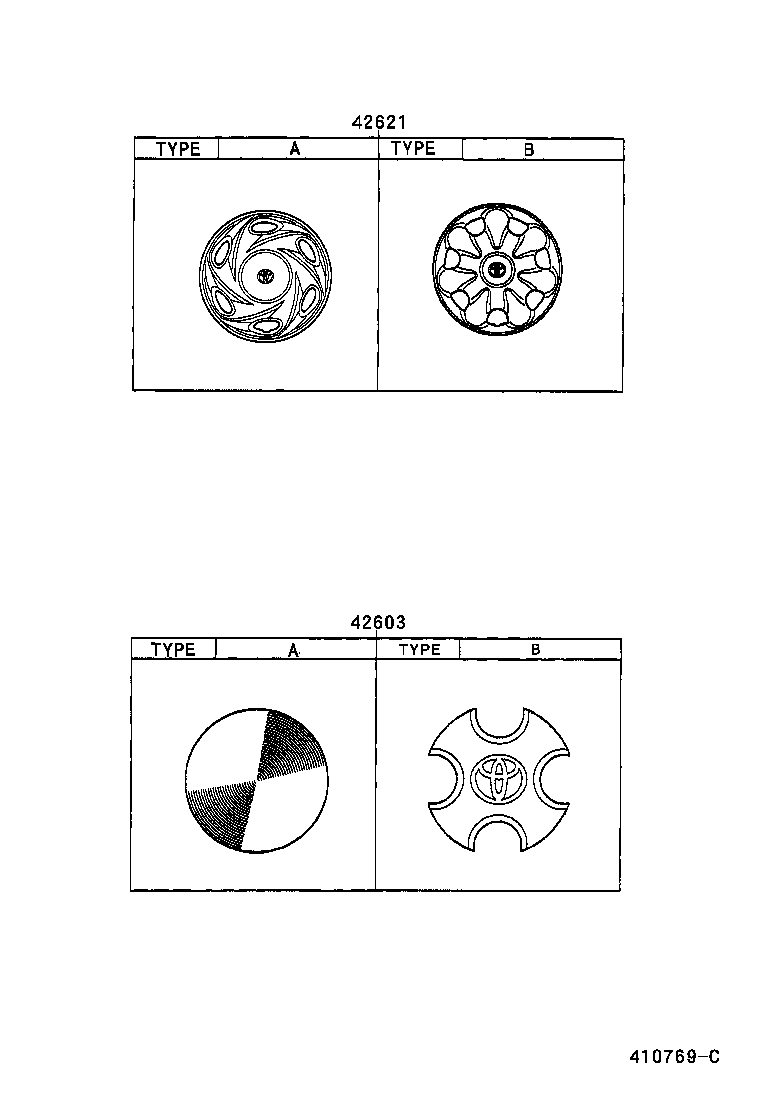

42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-12640	AE111 *ALU,TYPE A:REFER TO ILLUSTRATION	05/1998 - 12/2999	4
42621 - CAP, WHEEL
42602-13020	AE111 TYPE A:REFER TO ILLUSTRATION	05/1998 - 04/1999	4
42602-12490	AE111	04/1999 - 12/2999	4

Click highlighted areas on diagram

AE111R-FPPEK (1998)
