AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

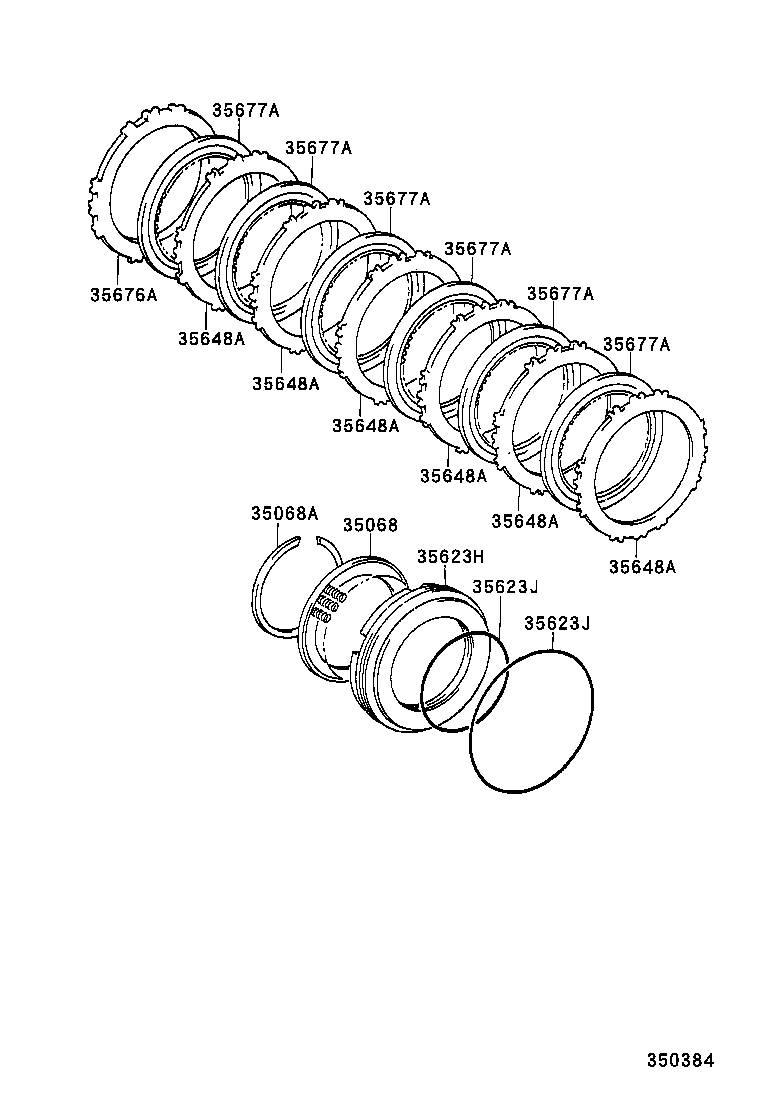

Click highlighted areas on diagram
A246E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN | ||||
| 35068-12010 |
AE111 |
1 | ||
| 35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING | ||||
| 90520-90001 |
AE111 |
1 | ||
| 35623H - PISTON, 1ST & REVERSE BRAKE | ||||
| 35623-12030 |
AE111 |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94001 |
AE111 INNER |
1 | ||
| 90301-99131 |
AE111 OUTER |
1 | ||
| 90301-99022 |
AE111 OUTER |
1 | ||
| 90301-94004 |
AE111 INNER |
1 | ||
| 35623J - RING, O (FOR 1ST & REVERSE BRAKE) | ||||
| 90301-94001 |
AE111 INNER |
1 | ||
| 90301-99131 |
AE111 OUTER |
1 | ||
| 90301-99022 |
AE111 OUTER |
1 | ||
| 90301-94004 |
AE111 INNER |
1 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AE111 |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AE111 |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AE111 |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AE111 |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AE111 |
6 | ||
| 35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35648-12020 |
AE111 |
6 | ||
| 35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE) | ||||
| 35676-12030 |
AE111 T=3.5 |
1 | ||
| 35676-32010 |
AE111 T=3.5 |
1 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AE111 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AE111 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AE111 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AE111 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AE111 |
6 | ||
| 35677A - DISC, CLUTCH (FOR 1ST & REVERSE BRAKE) | ||||
| 35677-20070 |
AE111 |
6 | ||
