AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

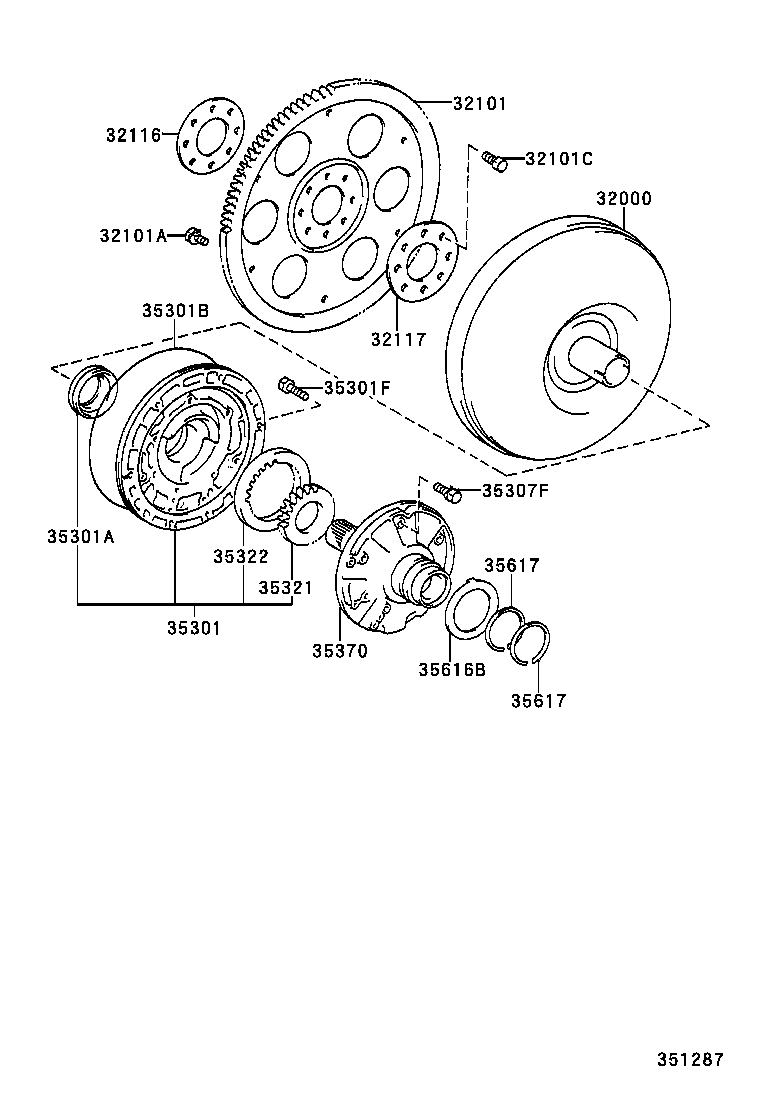

Click highlighted areas on diagram

A246E

diagram 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35307F 35321 35322 35370 35616B 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-12190

AE111

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-12060

AE111

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08498

AE111

*8-1.25PX12-8,BLACK

 5
90109-08113

AE111

*8-1.25PX12-8.4,GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

AE111

*10-1.25PX18-13

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-12010

AE111

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-12010

AE111

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35035-20010

AE111

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38082

AE111

 1
90311-38020

AE111

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99024

AE111

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08198

AE111

*8-1.25PX28-28

 6
35307F - BOLT (FOR STATOR SHAFT)
90119-06808

AE111

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-12080

AE111

T=9.450-9.459

 1
35321-12110

AE111

T=9.481-9.490

 1
35321-12070

AE111

T=9.440-9.449

 1
35321-12100

AE111

T=9.471-9.480

 1
35321-12090

AE111

T=9.460-9.470

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12080

AE111

T=9.460-9.470

 1
35322-12090

AE111

T=9.471-9.480

 1
35322-12060

AE111

T=9.440-9.449

 1
35322-12100

AE111

T=9.481-9.490

 1
35322-12070

AE111

T=9.450-9.459

 1
35370 - SHAFT ASSY, STATOR
35370-12050

AE111

 1
35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35616-32010

AE111

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32011

AE111

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32011

AE111

 2
