AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

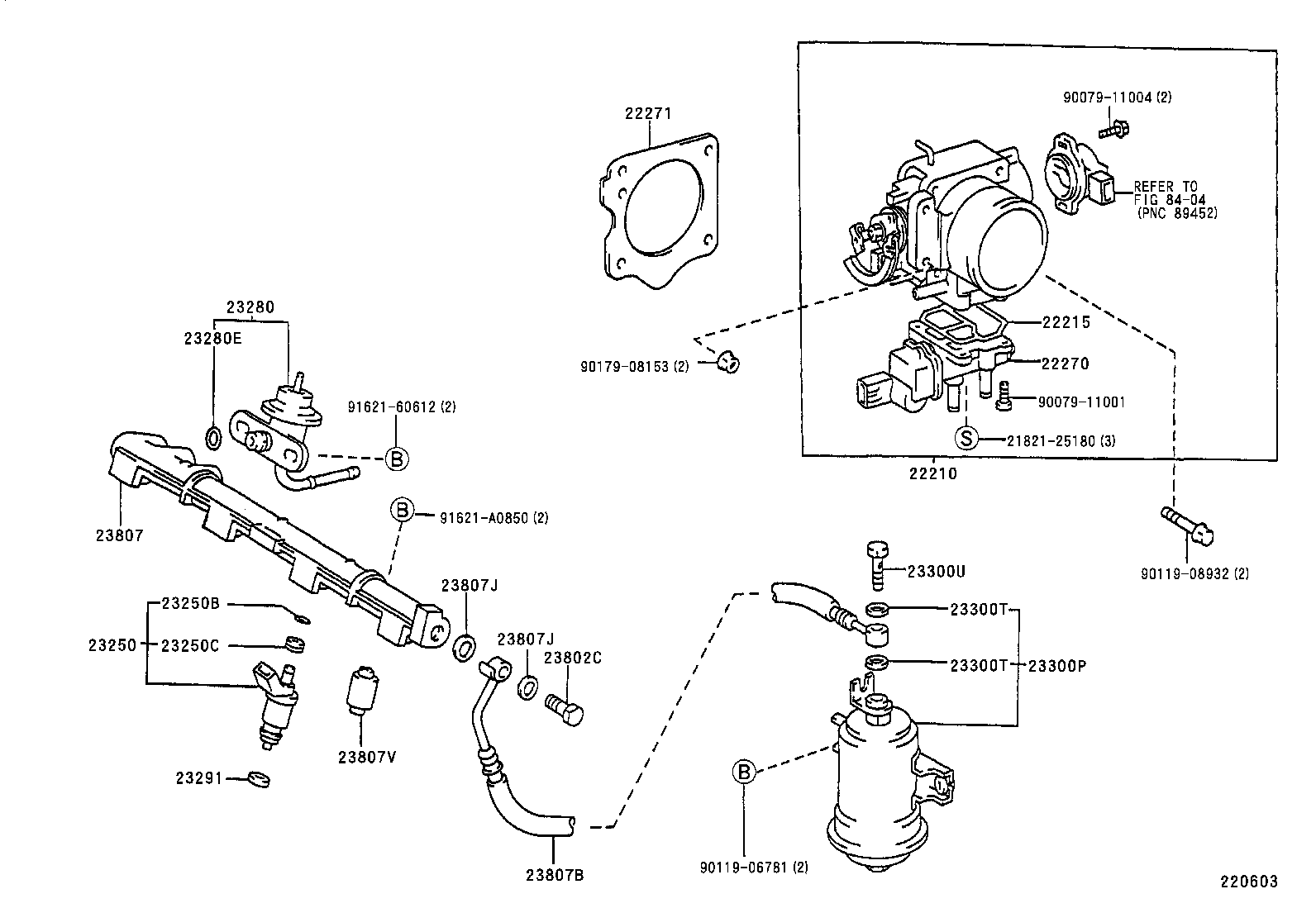

ILLUST NO. 1 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-1A060 |
4AFE..AE111 |
1 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
4AFE..AE111 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-16090 |
4AFE..AE111 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-15020 |
4AFE..AE111 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-15040 |
4AFE..AE111 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4AFE..AE111 |
4 | ||
| 90301-07024 |
4AFE..AE111 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4AFE..AE111 |
4 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-15020 |
4AFE..AE111 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07024 |
4AFE..AE111 |
1 | ||
| 90301-07001 |
4AFE..AE111 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4AFE..AE111 |
4 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-19285 |
4AFE..AE111 |
1 | ||
| 23300-19515 |
4AFE..AE111 NEW ZEALAND OR SINGAPORE SPEC |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4AFE..AE111 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4AFE..AE111 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4AFE..AE111 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-12097 |
4AFE..AE111 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23814-15050 |
4AFE..AE111 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-15240 |
4AFE..AE111 |
1 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
4AFE..AE111 |
2 | ||
| 23807J - GASKET, PIPE FUEL DELIVARY INLET | ||||
| 90430-12026 |
4AFE..AE111 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08020 |
4AFE..AE111 |
2 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 90079-11001 | ||||
| 90079-11004 | ||||
| 90119-06781 | ||||
| 90119-08932 | ||||
| 90179-08153 | ||||
| 91621-60612 | ||||
| 91621-A0850 | ||||
| Linked diagrams | ||||
| 8404 | ||||

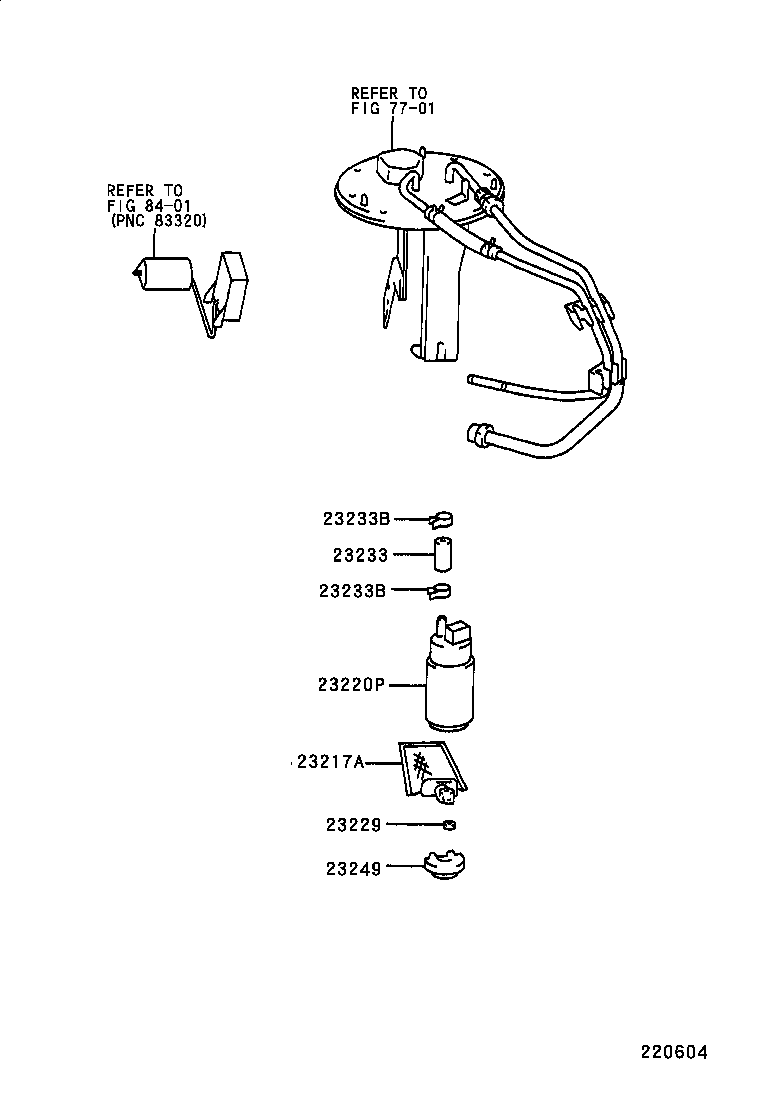

ILLUST NO. 2 OF 2(9805- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
4AFE..AE111 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-11060 |
4AFE..AE111 NEW ZEALAND OR SINGAPORE SPEC |
1 | ||
| 23221-16530 |
4AFE..AE111 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4AFE..AE111 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-11010 |
4AFE..AE111 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
4AFE..AE111 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-12067 |
4AFE..AE111 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
4AFE..AE111 |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
