AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

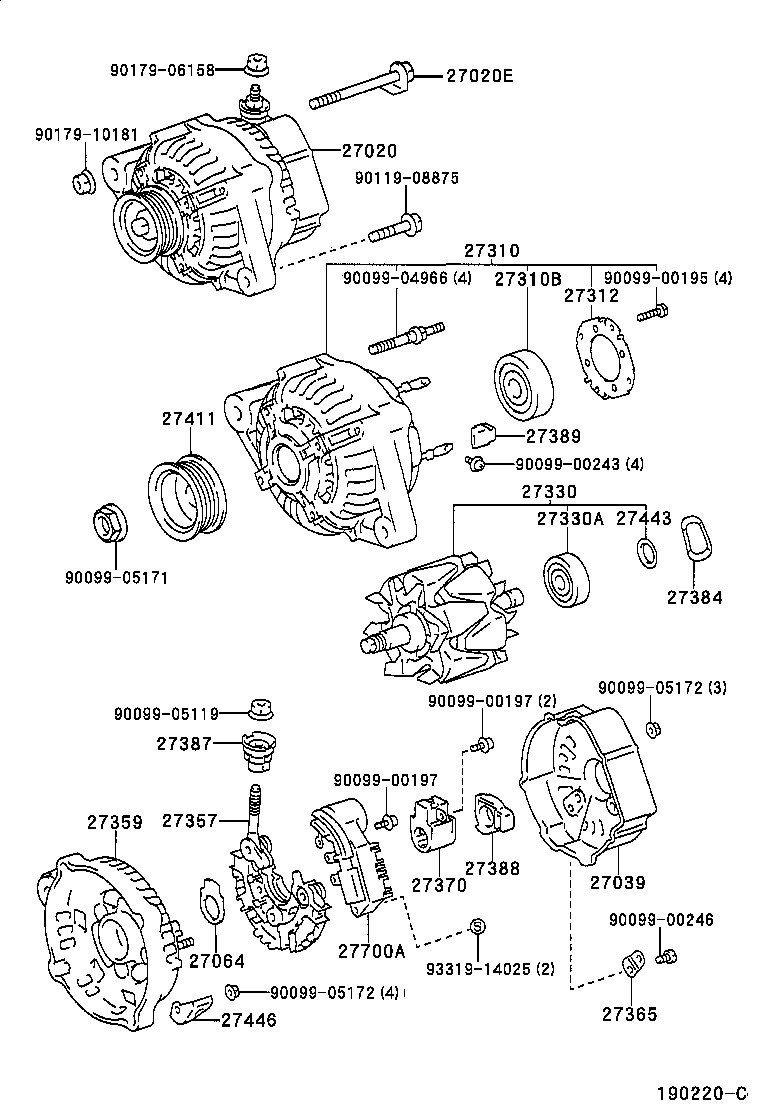

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9011908875 9017906158 9017910181 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-16460

4AFE..AE111

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10336

4AFE..AE111

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

4AFE..AE111

 1
27039-70470

4AFE..AE111

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

4AFE..AE111

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16430

4AFE..AE111

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

4AFE..AE111

 1
27312 - PLATE, RETAINER
27312-42010

4AFE..AE111

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030

4AFE..AE111

 1
27330-16390

4AFE..AE111

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

4AFE..AE111

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

4AFE..AE111

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-15180

4AFE..AE111

 1
27365 - PLATE, TERMINAL
27365-55080

4AFE..AE111

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

4AFE..AE111

 1
27384 - WASHER
27384-50030

4AFE..AE111

 1
27387 - INSULATOR, TERMINAL
27387-42021

4AFE..AE111

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

4AFE..AE111

 1
27389 - INSULATOR, TERMINAL
27389-42010

4AFE..AE111

 4
27411 - PULLEY, ALTERNATOR
27411-42030

4AFE..AE111

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

4AFE..AE111

 1
27446 - CLIP, ALTERNATOR CORD
27446-15170

4AFE..AE111

 1
27700A - REGULATOR ASSY, GENERATOR
27700-74040

4AFE..AE111

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90119-08875
90179-06158
90179-10181
93319-14025
