AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

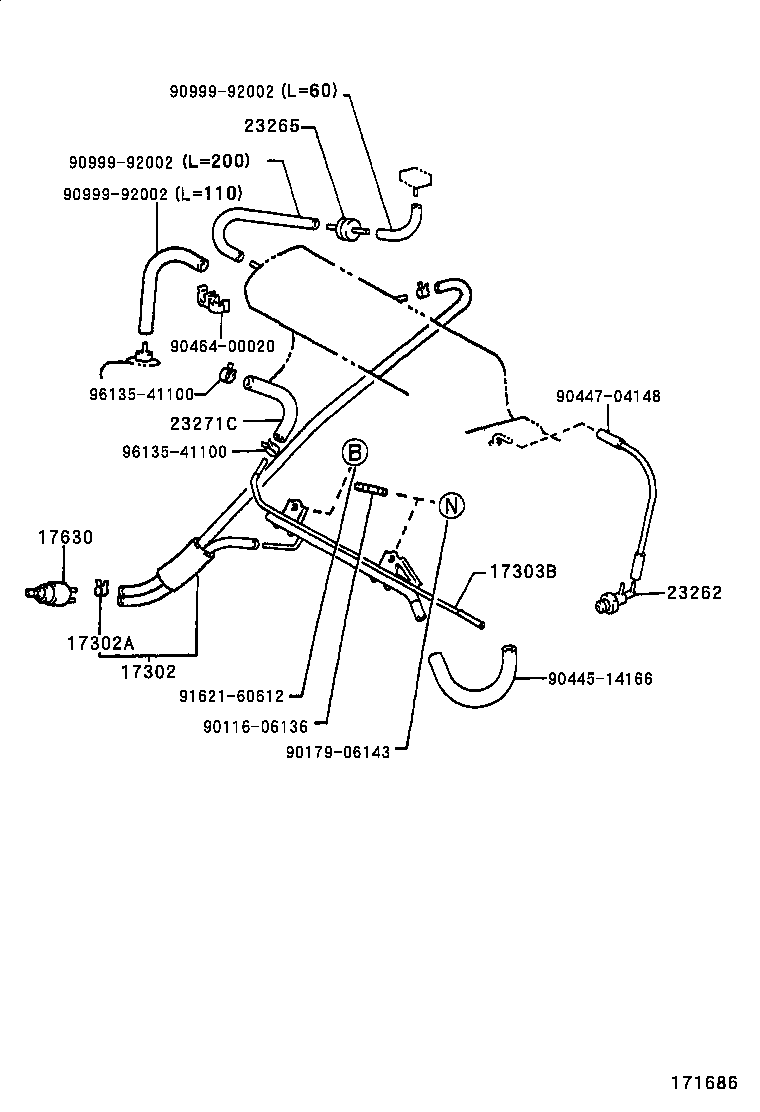

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9805- )

Click highlighted areas on diagram

diagram 17302 17302A 17303B 17630 23262 23265 23271C 9011606136 9017906143 9044514166 9044704148 9046400020 9099992002 9099992002 9099992002 9162160612 9613541100 9613541100
Part # Description Qty Price
17302 - HOSE SUB-ASSY, AIR
17302-15010

4AFE..AE111

 1
17302A - CLIP, HOSE
96132-51000

4AFE..AE111

 2
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-15090

4AFE..AE111

 1
17630 - VALVE ASSY, AIR CONTROL
17630-15080

4AFE..AE111

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

4AFE..AE111

 1
23265 - FILTER, GAS, NO.1
90917-11030

4AFE..AE111

 1
23271C - HOSE, FUEL
90910-05214

4AFE..AE111

 1
Common parts
90116-06136
90179-06143
90445-14166
90447-04148
90464-00020
90999-92002
91621-60612
96135-41100
