AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

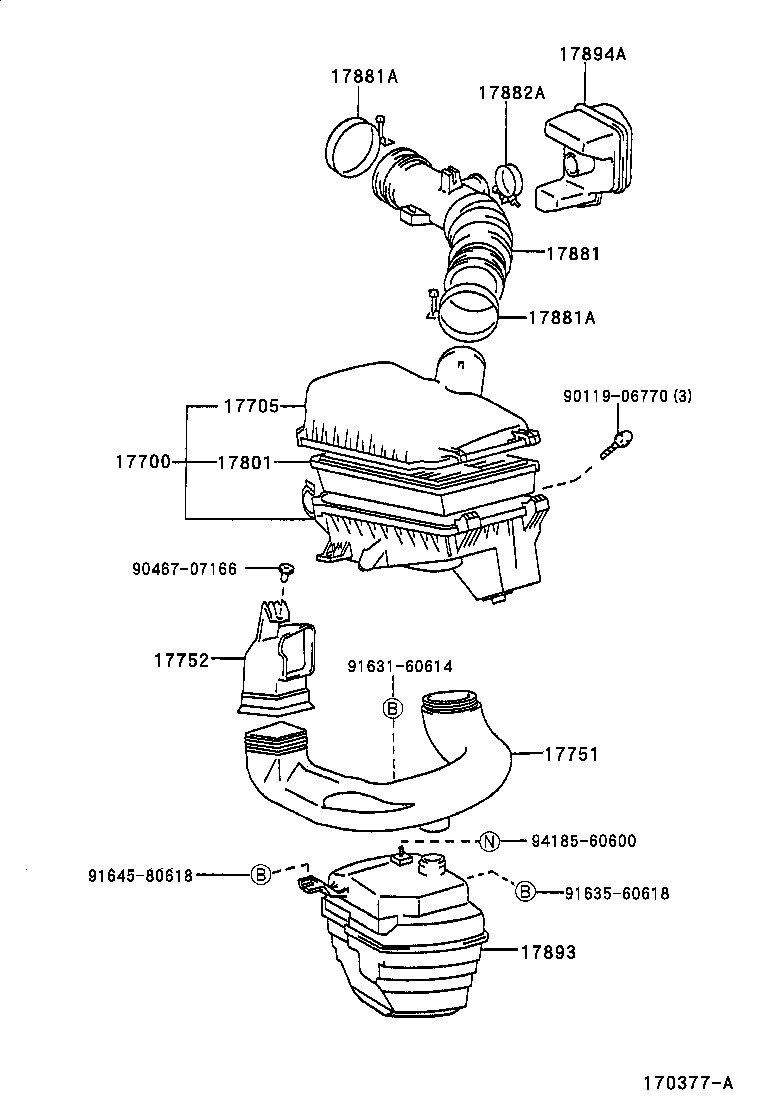

Click highlighted areas on diagram

diagram 17700 17705 17751 17752 17801 17881 17881A 17881A 17882A 17893 17894A 9011906770 9046707166 9163160614 9163560618 9164580618 9418560600
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-15360

4AFE..AE111

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-15190

4AFE..AE111

 1
17751 - INLET, AIR CLEANER, NO.1
17751-15070

4AFE..AE111

 1
17752 - INLET, AIR CLEANER, NO.2
17752-15050

4AFE..AE111

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-15070

4AFE..AE111

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-15200

4AFE..AE111

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

4AFE..AE111

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10730

4AFE..AE111

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10480

4AFE..AE111

 1
17893 - RESONATOR, INTAKE AIR
17893-15050

4AFE..AE111

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-15050

4AFE..AE111

 1
Common parts
90119-06770
90467-07166
91631-60614
91635-60618
91645-80618
94185-60600
