AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

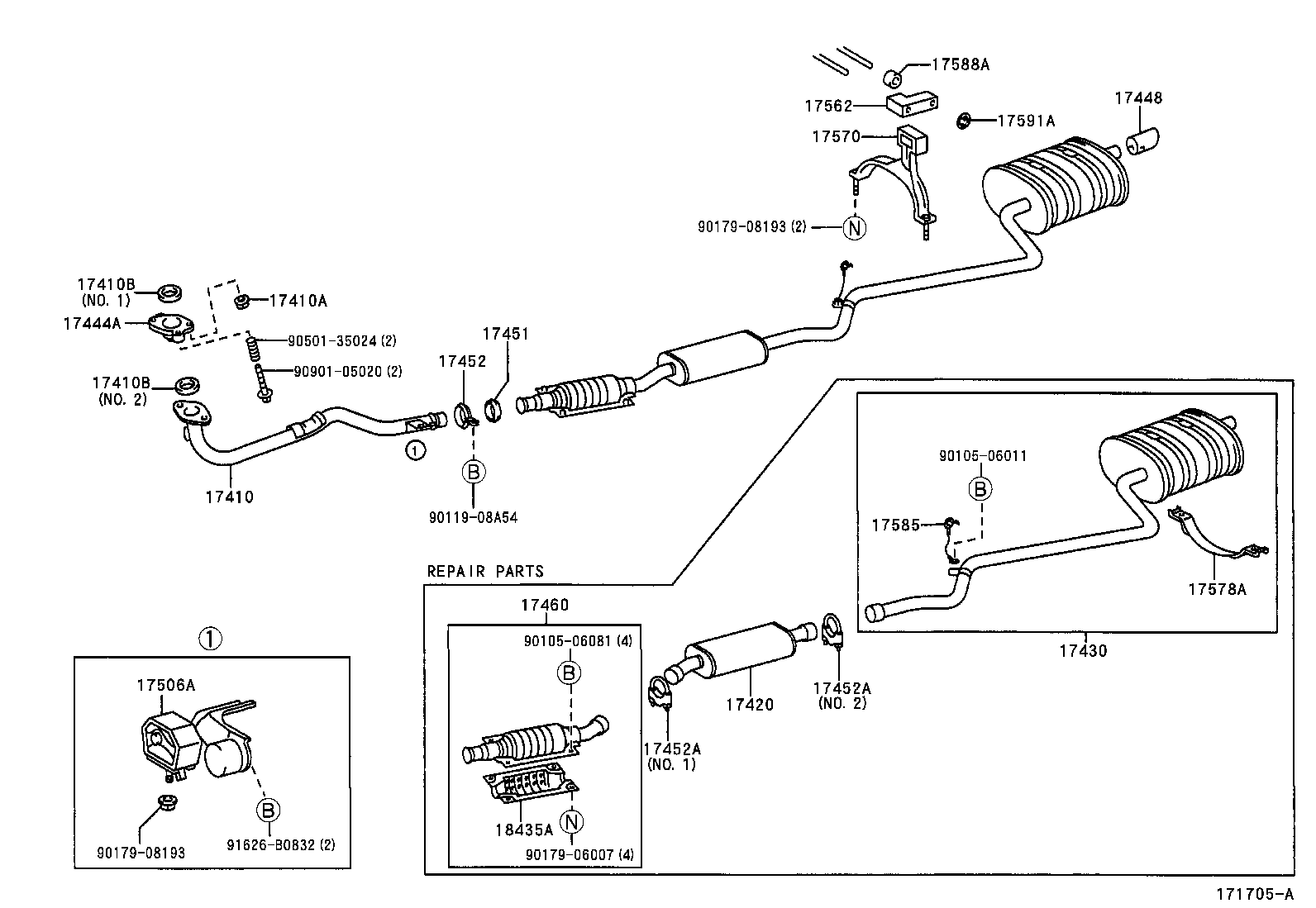

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-1A490 |
4AFE..AE111 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
4AFE..AE111 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06065 |
4AFE..AE111 NO.1 |
1 | ||
| 17451-16040 |
4AFE..AE111 NO.2 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06065 |
4AFE..AE111 NO.1 |
1 | ||
| 17451-16040 |
4AFE..AE111 NO.2 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-16750 |
4AFE..AE111 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-1D300 |
4AFE..AE111 |
1 | ||
| 17430-1D161 |
4AFE..AE111 |
1 | ||
| 17430-1D160 |
4AFE..AE111 |
1 | ||
| 17444A - SPACER, EXHAUST FRONT PIPE | ||||
| 17444-16050 |
4AFE..AE111 |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-16060 |
4AFE..AE111 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06084 |
4AFE..AE111 |
1 | ||
| 17452 - CLAMP, EXHAUST PIPE | ||||
| 90461-15016 |
4AFE..AE111 |
1 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 17452-16160 |
4AFE..AE111 NO.1 |
1 | ||
| 17452-16120 |
4AFE..AE111 NO.2 |
1 | ||
| 17452A - CLAMP, EXHAUST PIPE | ||||
| 17452-16160 |
4AFE..AE111 NO.1 |
1 | ||
| 17452-16120 |
4AFE..AE111 NO.2 |
1 | ||
| 17460 - CONVERTER ASSY, CATALYTIC W/PIPE | ||||
| 17460-16250 |
4AFE..AE111 |
1 | ||
| 17506A - BRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17506-11100 |
4AFE..AE111 |
1 | ||
| 17562 - SUPPORT, EXHAUST PIPE, NO.2 | ||||
| 17562-16240 |
4AFE..AE111 |
1 | ||
| 17570 - BRACKET ASSY, EXHAUST PIPE SUPPORT | ||||
| 17570-16040 |
4AFE..AE111 |
1 | ||
| 17578A - CLAMP, MUFFLER | ||||
| 17578-16050 |
4AFE..AE111 |
1 | ||
| 17578-16030 |
4AFE..AE111 |
1 | ||
| 17585 - HANGER, EXHAUST PIPE | ||||
| 17585-16060 |
4AFE..AE111 |
1 | ||
| 17588A - SPACER, EXHAUST PIPE HANGER | ||||
| 17588-16020 |
4AFE..AE111 |
1 | ||
| 17591A - STOPPER, EXHAUST PIPE SUPPORT | ||||
| 17591-16020 |
4AFE..AE111 |
2 | ||
| 18435A - PROTECTOR, MONOLITHIC CONVERTER | ||||
| 18435-16170 |
4AFE..AE111 |
1 | ||
| 18435-20020 |
4AFE..AE111 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06081 | ||||
| 90119-08A54 | ||||
| 90179-06007 | ||||
| 90179-08193 | ||||
| 90501-35024 | ||||
| 90901-05020 | ||||
| 91626-B0832 | ||||
