AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

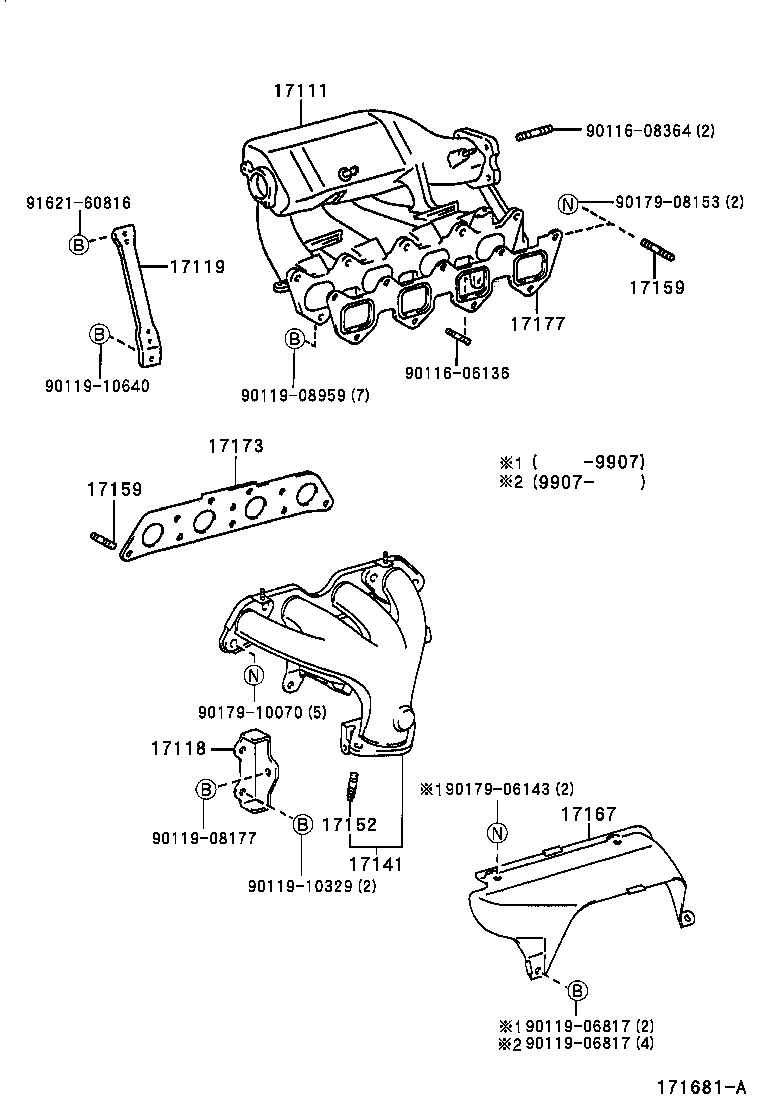

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-16280 |
4AFE..AE111 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-02080 |
4AFE..AE111 |
1 | ||
| 17119 - STAY, MANIFOLD, NO.2 | ||||
| 17139-15050 |
4AFE..AE111 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-16390 |
4AFE..AE111 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10017 |
4AFE..AE111 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AFE..AE111 INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE..AE111 EXHAUST MANIFOLD |
5 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 92112-60825 |
4AFE..AE111 INTAKE MANIFOLD |
2 | ||
| 92112-61028 |
4AFE..AE111 EXHAUST MANIFOLD |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-02050 |
4AFE..AE111 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-15040 |
4AFE..AE111 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-15030 |
4AFE..AE111 |
1 | ||
| Common parts | ||||
| 90116-06136 | ||||
| 90116-08364 | ||||
| 90119-06817 | ||||
| 90119-08177 | ||||
| 90119-08959 | ||||
| 90119-10329 | ||||
| 90119-10640 | ||||
| 90179-06143 | ||||
| 90179-08153 | ||||
| 90179-10070 | ||||
| 91621-60816 | ||||
