AE111R-FPPEK (1998)

Toyota Spacio

Production May 1998 - May 2001
Engine 4AFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9805- )

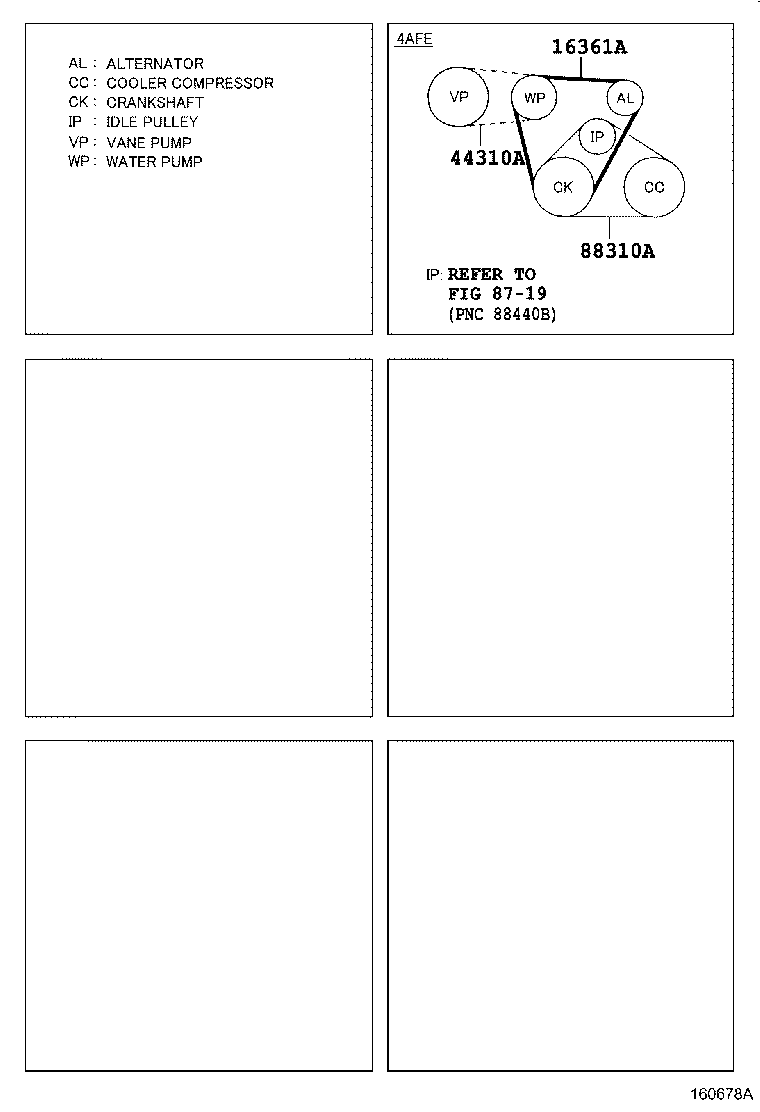

Click highlighted areas on diagram

diagram 16361A 44310A 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90080-91055

4AFE..AE111

L=970,(L)

 1
99365-20970

4AFE..AE111

L=970,(J)

 1
44310A - BELT, V(FOR VANE PUMP)
99363-90630

AE111

L=630,(J)

 1
90080-91051

AE111

L=630,(L)

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99364-20850

AE111

L=850

 1
Linked diagrams
8719
