AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

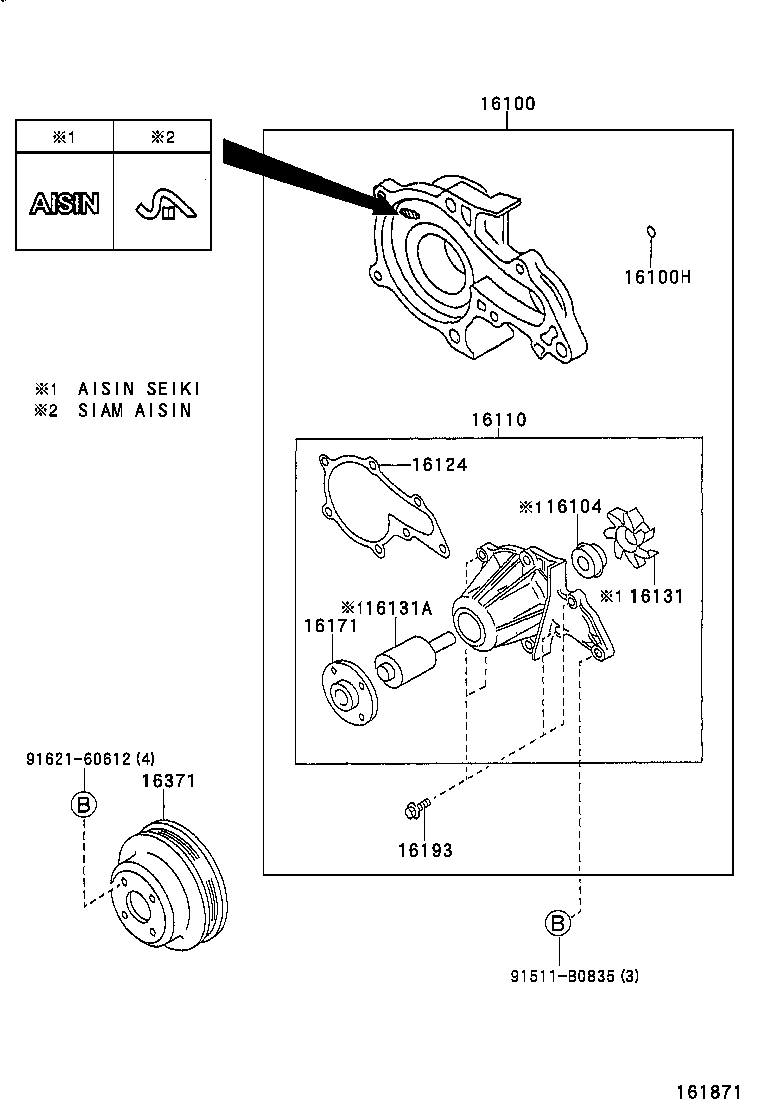

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-19295 |
4AFE..AE111 |
1 | ||
| 16100-19295 |
4AFE..AE111 AISIN SEIKI |
1 | ||
| 16100-09120 |
4AFE..AE111 SIAM AISIN |
1 | ||
| 16100H - RING, O(FOR WATER PUMP) | ||||
| 96761-24035 |
4AFE..AE111 |
1 | ||
| 16104 - SEAL SET, WATER PUMP | ||||
| 16104-46060 |
4AFE..AE111 |
1 | ||
| 16110 - PUMP ASSY, WATER, W/O COUPLING | ||||
| 16110-19205 |
4AFE..AE111 AISIN SEIKI |
1 | ||
| 16110-19146 |
4AFE..AE111 AISAN |
1 | ||
| 16124 - GASKET, WATER PUMP COVER | ||||
| 16124-15110 |
4AFE..AE111 AISIN SEIKI |
1 | ||
| 16124-16060 |
4AFE..AE111 AISAN |
1 | ||
| 16131 - ROTOR, WATER PUMP | ||||
| 16131-16090 |
4AFE..AE111 |
1 | ||
| 16131A - BEARING, WATER PUMP | ||||
| 90029-36846 |
4AFE..AE111 |
1 | ||
| 16171 - SEAT, WATER PUMP PULLEY | ||||
| 16171-10012 |
4AFE..AE111 AISIN SEIKI |
1 | ||
| 16171-15071 |
4AFE..AE111 AISAN |
1 | ||
| 16193 - BOLT, STUD(FOR WATER PUMP COVER) | ||||
| 16193-15100 |
4AFE..AE111 AISAN |
4 | ||
| 16193-15011 |
4AFE..AE111 AISIN SEIKI |
4 | ||
| 16371 - PULLEY, FAN | ||||
| 16371-15071 |
4AFE..AE111 (J) |
1 | ||
| 16371-02030 |
4AFE..AE111 (L) |
1 | ||
| Common parts | ||||
| 91511-B0835 | ||||
| 91621-60612 | ||||
