AE111R-FPPEK (1998)
Toyota Spacio
Production
May 1998
-
May 2001
Engine
4AFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9805- )

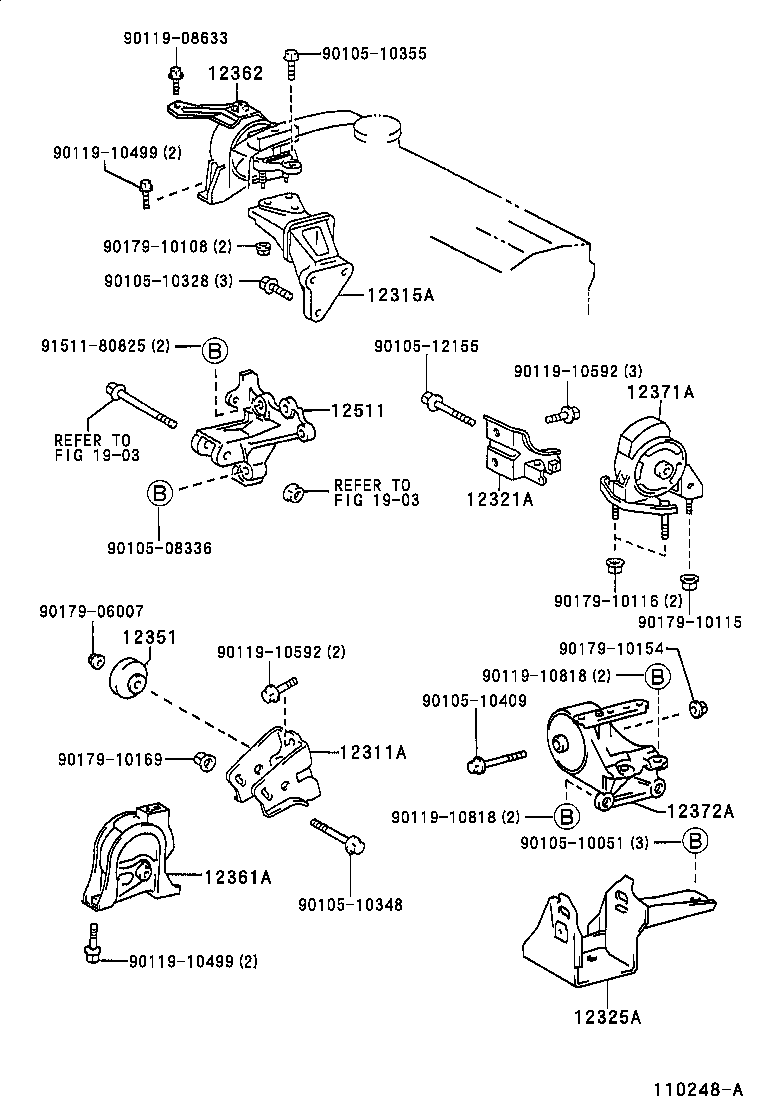

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-15130 |
4AFE..AE111 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-15081 |
4AFE..AE111 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-15140 |
4AFE..AE111 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-15100 |
4AFE..AE111 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-15060 |
4AFE..AE111 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-15181 |
4AFE..AE111 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-15040 |
4AFE..AE111 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-64210 |
4AFE..AE111 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-15220 |
4AFE..AE111 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-15060 |
4AFE..AE111 |
1 | ||
| Common parts | ||||
| 90105-08336 | ||||
| 90105-10051 | ||||
| 90105-10328 | ||||
| 90105-10348 | ||||
| 90105-10355 | ||||
| 90105-10409 | ||||
| 90105-12155 | ||||
| 90119-08633 | ||||
| 90119-10499 | ||||
| 90119-10592 | ||||
| 90119-10818 | ||||
| 90179-06007 | ||||
| 90179-10108 | ||||
| 90179-10115 | ||||
| 90179-10116 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 91511-80825 | ||||
| Linked diagrams | ||||
| 1903 | ||||
