AL50R-AEPNK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

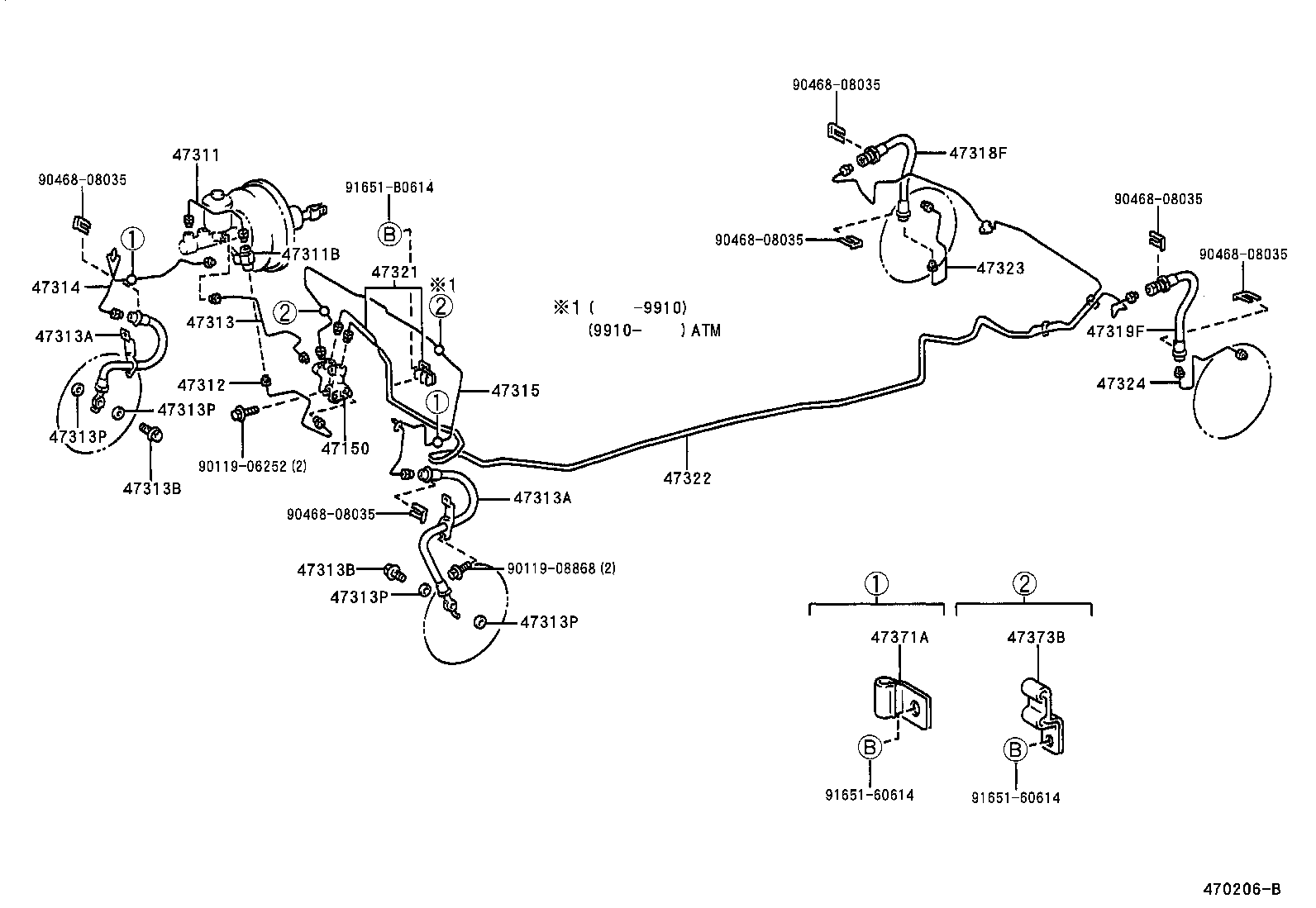

Click highlighted areas on diagram

diagram 47150 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47318F 47319F 47321 47322 47323 47324 47371A 47373B 9011906252 9011908868 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9165160614 9165160614 91651B0614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12230

AL50..4FC;AL50..5F..SLI

 1
47150-12220

AL50..GLI..GEN

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-0A021

AL50..GLI..GEN

 1
47311-0A010

AL50

 1
47311-16220

AL50

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10259

AL50

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-0A041

AL50..GLI..GEN

 1
47312-0A010

AL50

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0A010

AL50

 1
47313-0A041

AL50..GLI..GEN

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94030

AL50

LH

 1
90080-94028

AL50

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94030

AL50

LH

 1
90080-94028

AL50

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AL50

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AL50

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-0A010

AL50

 1
47314-0A041

AL50..GLI..GEN

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0A010

AL50

 1
47315-0A041

AL50..GLI..GEN

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94029

AL50

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94029

AL50

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0A010

AL50..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0A010

AL50..GEN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0A010

AL50..GEN

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0A010

AL50..GEN

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90461-06055

AL50

 2
47371-16130

AL50..GLI..GEN

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01207

AL50

 2
90949-01207

AL50..GLI..GEN

NO.2

 1
47371-16120

AL50..GLI..GEN

NO.1

 1
Common parts
90119-06252
90119-08868
90468-08035
91651-60614
91651-B0614

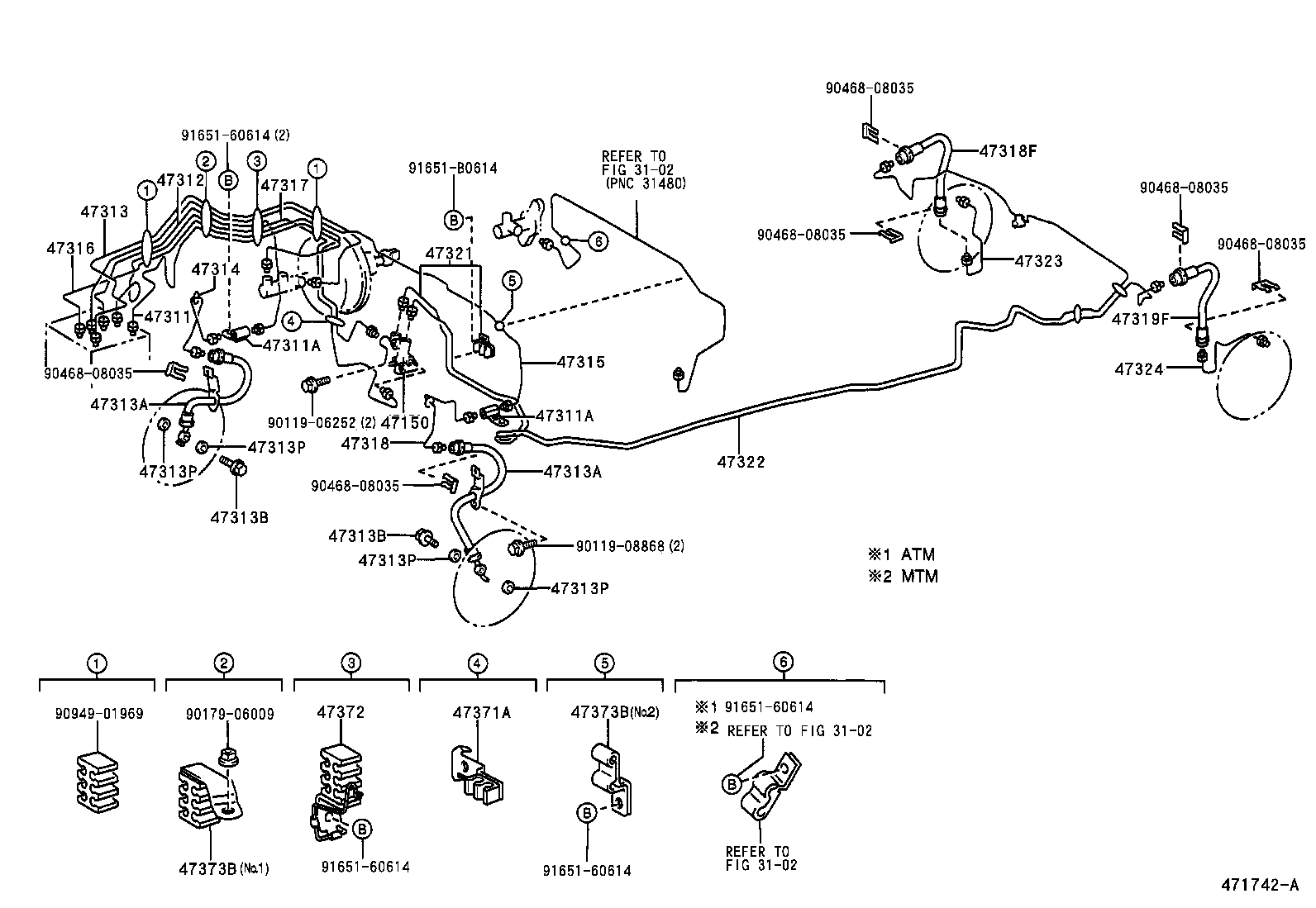

ILLUST NO. 1 OF 2(9910- )

Click highlighted areas on diagram

W(ABS)

diagram 3102 3102 3102 47150 47311 47311A 47311A 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47313P 47313P 47314 47315 47316 47317 47318 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47373B 9011906252 9011908868 9017906009 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9094901969 9165160614 9165160614 9165160614 9165160614 91651B0614
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12230

AL50..4FC;AL50..5F..SLI

 1
47150-12220

AL50..GLI..GEN

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-0A021

AL50..GLI..GEN

 1
47311-0A010

AL50

 1
47311-16220

AL50

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10213

AL50..GLI..GEN

 2
47311A - WAY(FOR FRONT BRAKE TUBE)
90412-10213

AL50..GLI..GEN

 2
47312 - TUBE, FRONT BRAKE, NO.2
47312-0A041

AL50..GLI..GEN

 1
47312-0A010

AL50

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-0A010

AL50

 1
47313-0A041

AL50..GLI..GEN

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94030

AL50

LH

 1
90080-94028

AL50

RH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94030

AL50

LH

 1
90080-94028

AL50

RH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AL50

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AL50

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AL50

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-0A010

AL50

 1
47314-0A041

AL50..GLI..GEN

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-0A010

AL50

 1
47315-0A041

AL50..GLI..GEN

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-0A011

AL50..GLI..GEN

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-0A011

AL50..GLI..GEN

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-0A011

AL50..GLI..GEN

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90080-94029

AL50

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90080-94029

AL50

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-0A010

AL50..GEN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-0A010

AL50..GEN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-0A010

AL50..GEN

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-0A010

AL50..GEN

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90461-06055

AL50

 2
47371-16130

AL50..GLI..GEN

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47371-16110

AL50..GLI..GEN

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01207

AL50

 2
90949-01207

AL50..GLI..GEN

NO.2

 1
47371-16120

AL50..GLI..GEN

NO.1

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01207

AL50

 2
90949-01207

AL50..GLI..GEN

NO.2

 1
47371-16120

AL50..GLI..GEN

NO.1

 1
Common parts
90119-06252
90119-08868
90179-06009
90468-08035
90949-01969
91651-60614
91651-B0614
Linked diagrams
3102

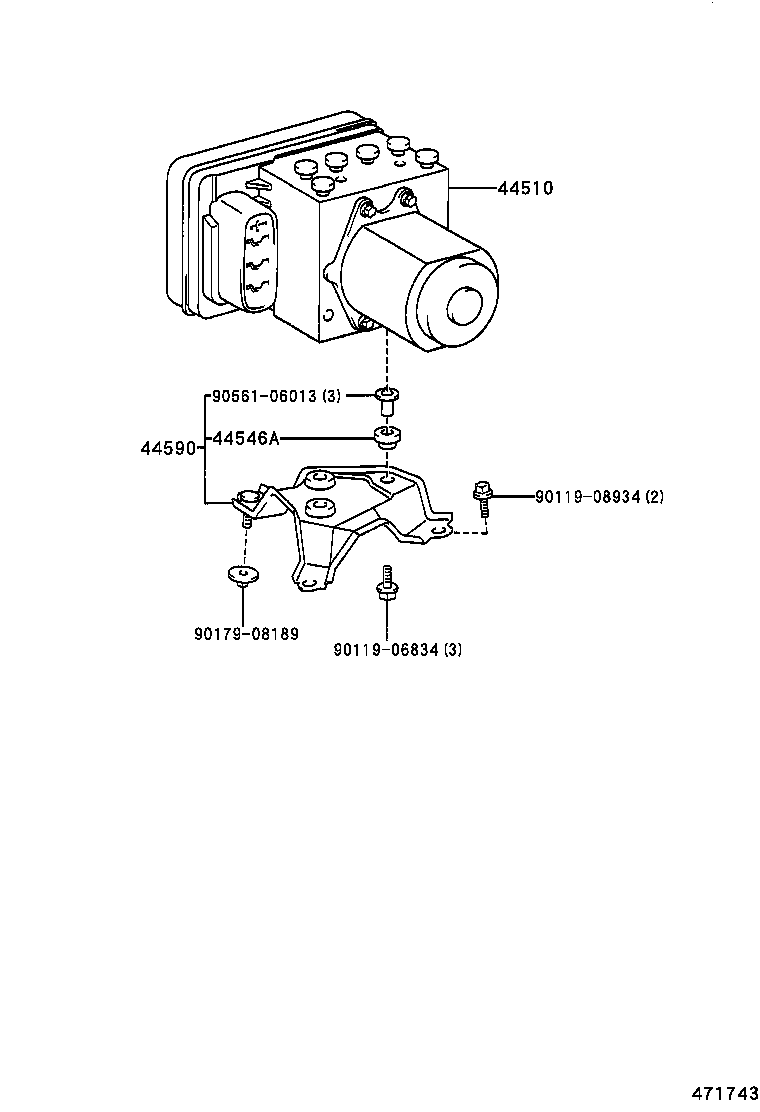

ILLUST NO. 2 OF 2(9910- )

Click highlighted areas on diagram

W(ABS)

diagram 44510 44546A 44590 9011906834 9011908934 9017908189 9056106013
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-16040

AL50..GLI..GEN

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12100

AL50..GLI..GEN

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-16030

AL50..GLI..GEN

 1
Common parts
90119-06834
90119-08934
90179-08189
90561-06013
