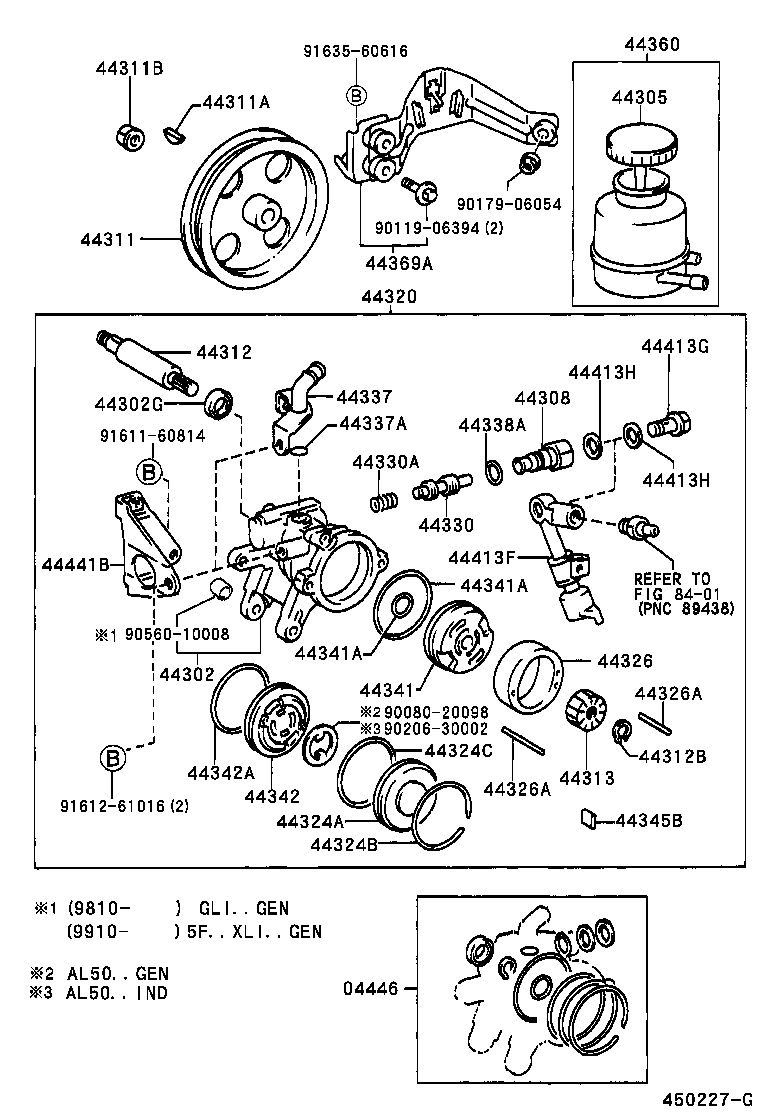

AL50R-AEPNK (1998)
Toyota Soluna
(9612- )GLI ; (9612- )5F..XLI ; (0010-)SLI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-10031 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 04446-10031 |
AL50..GLI |
1 | ||
| 04446-0A010 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 04446-10031 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-0A010 |
AL50..GLI |
1 | ||
| 44302-0A010 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 44302-0A010 |
AL50..GLI..GEN;AL50..5F..XLI..GEN |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90080-31095 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 90311-18007 |
AL50..GLI |
1 | ||
| 90311-18007 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 90311-18007 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-22030 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44305-22030 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-20050 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44308-20050 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-12040 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44311-12040 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 90280-05008 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90178-12003 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 90178-12003 |
AL50..GLI..GEN;AL50..5F..XLI..GEN |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44312-12030 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 90080-52137 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 90520-10003 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22070 |
AL50..GLI;AL50..5F..XLI MARK 3 |
1 | ||
| 44313-22060 |
AL50..GLI;AL50..5F..XLI MARK 2 |
1 | ||
| 44313-22050 |
AL50..GLI;AL50..5F..XLI MARK 1 |
1 | ||
| 44313-22070 |
AL50..GLI,SLI;AL50..5F..XLI MARK 3 |
1 | ||
| 44313-22040 |
AL50..GLI;AL50..5F..XLI NO MARK |
1 | ||
| 44313-22080 |
AL50..GLI;AL50..5F..XLI MARK 4 |
1 | ||
| 44313-22040 |
AL50..GLI,SLI;AL50..5F..XLI NO MARK |
1 | ||
| 44313-22050 |
AL50..GLI,SLI;AL50..5F..XLI MARK 1 |
1 | ||
| 44313-22060 |
AL50..GLI,SLI;AL50..5F..XLI MARK 2 |
1 | ||
| 44313-22080 |
AL50..GLI,SLI;AL50..5F..XLI MARK 4 |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-0A010 |
AL50..GLI..GEN;AL50..5F..XLI..GEN |
1 | ||
| 44320-0A010 |
AL50..GLI |
1 | ||
| 44320-0A010 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 44324A - HOUSING, PUMP, REAR | ||||
| 44324-12031 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44324-12031 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 90521-62002 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44324C - RING, O(FOR PUMP HOUSING REAR) | ||||
| 90301-52001 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 90301-52001 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 90080-30112 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12110 |
AL50..GLI,SLI;AL50..5F..XLI NO MARK |
1 | ||
| 44325-12130 |
AL50..GLI;AL50..5F..XLI MARK 2 |
1 | ||
| 44325-12140 |
AL50..GLI;AL50..5F..XLI MARK 3 |
1 | ||
| 44325-12120 |
AL50..GLI;AL50..5F..XLI MARK 1 |
1 | ||
| 44325-12140 |
AL50..GLI,SLI;AL50..5F..XLI MARK 3 |
1 | ||
| 44325-12110 |
AL50..GLI;AL50..5F..XLI NO MARK |
1 | ||
| 44325-12150 |
AL50..GLI;AL50..5F..XLI MARK 4 |
1 | ||
| 44325-12130 |
AL50..GLI,SLI;AL50..5F..XLI MARK 2 |
1 | ||
| 44325-12150 |
AL50..GLI,SLI;AL50..5F..XLI MARK 4 |
1 | ||
| 44325-12120 |
AL50..GLI,SLI;AL50..5F..XLI MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AL50..GLI,SLI;AL50..5F..XLI L=28,OD=4.0 |
1 | ||
| 90250-04049 |
AL50..GLI,SLI;AL50..5F..XLI L=43,OD=4.0 |
1 | ||
| 90250-04047 |
AL50..GLI;AL50..5F..XLI L=28,OD=4.0 |
1 | ||
| 90250-04049 |
AL50..GLI;AL50..5F..XLI L=43,OD=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-04047 |
AL50..GLI,SLI;AL50..5F..XLI L=28,OD=4.0 |
1 | ||
| 90250-04049 |
AL50..GLI,SLI;AL50..5F..XLI L=43,OD=4.0 |
1 | ||
| 90250-04047 |
AL50..GLI;AL50..5F..XLI L=28,OD=4.0 |
1 | ||
| 90250-04049 |
AL50..GLI;AL50..5F..XLI L=43,OD=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-0A020 |
AL50..GLI MARK B |
1 | ||
| 44330-0A060 |
AL50..GLI MARK F |
1 | ||
| 44330-0A010 |
AL50..GLI..GEN;AL50..5F..XLI..GEN MARK A |
1 | ||
| 44330-0A020 |
AL50..GLI..GEN;AL50..5F..XLI..GEN MARK B |
1 | ||
| 44330-0A030 |
AL50..GLI MARK C |
1 | ||
| 44330-0A040 |
AL50..GLI MARK D |
1 | ||
| 44330-0A030 |
AL50..GLI..GEN;AL50..5F..XLI..GEN MARK C |
1 | ||
| 44330-0A050 |
AL50..GLI..GEN;AL50..5F..XLI..GEN MARK E |
1 | ||
| 44330-0A050 |
AL50..GLI MARK E |
1 | ||
| 44330-0A010 |
AL50..GLI MARK A |
1 | ||
| 44330-0A020 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN MARK B |
1 | ||
| 44330-0A060 |
AL50..GLI..GEN;AL50..5F..XLI..GEN MARK F |
1 | ||
| 44330-0A010 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN MARK A |
1 | ||
| 44330-0A040 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN MARK D |
1 | ||
| 44330-0A040 |
AL50..GLI..GEN;AL50..5F..XLI..GEN MARK D |
1 | ||
| 44330-0A030 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN MARK C |
1 | ||
| 44330-0A050 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN MARK E |
1 | ||
| 44330-0A060 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 90080-50329 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 90501-12103 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-16090 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44337-16090 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 90301-11016 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 90080-30049 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 90301-11016 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90080-30074 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN ID=19.2,OD=22.3 |
1 | ||
| 90301-19013 |
AL50..GLI,SLI;AL50..5F..XLI ID=19.2,OD=22.3 |
1 | ||
| 90301-19013 |
AL50..GLI;AL50..5F..XLI ID=19.2,OD=22.3 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-0A010 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 44341-32010 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44341-32010 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
AL50..GLI;AL50..5F..XLI INNER |
1 | ||
| 90301-52001 |
AL50..GLI;AL50..5F..XLI OUTER |
1 | ||
| 90301-52001 |
AL50..GLI,SLI;AL50..5F..XLI OUTER |
1 | ||
| 90080-30109 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN INNER |
1 | ||
| 90080-30111 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN OUTER |
1 | ||
| 90301-25001 |
AL50..GLI,SLI;AL50..5F..XLI INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-25001 |
AL50..GLI;AL50..5F..XLI INNER |
1 | ||
| 90301-52001 |
AL50..GLI;AL50..5F..XLI OUTER |
1 | ||
| 90301-52001 |
AL50..GLI,SLI;AL50..5F..XLI OUTER |
1 | ||
| 90080-30109 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN INNER |
1 | ||
| 90080-30111 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN OUTER |
1 | ||
| 90301-25001 |
AL50..GLI,SLI;AL50..5F..XLI INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-32010 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44342-32010 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44342-0A010 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 90301-52001 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 90080-30111 |
AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12010 |
AL50..GLI,SLI;AL50..5F..XLI L=14.997 |
10 | ||
| 44345-12050 |
AL50..GLI;AL50..5F..XLI L=14.989 |
10 | ||
| 44345-12020 |
AL50..GLI;AL50..5F..XLI L=14.995 |
10 | ||
| 44345-12020 |
AL50..GLI,SLI;AL50..5F..XLI L=14.995 |
10 | ||
| 44345-12040 |
AL50..GLI;AL50..5F..XLI L=14.991 |
10 | ||
| 44345-12010 |
AL50..GLI;AL50..5F..XLI L=14.997 |
10 | ||
| 44345-12030 |
AL50..GLI,SLI;AL50..5F..XLI L=14.993 |
10 | ||
| 44345-12050 |
AL50..GLI,SLI;AL50..5F..XLI L=14.989 |
10 | ||
| 44345-12040 |
AL50..GLI,SLI;AL50..5F..XLI L=14.991 |
10 | ||
| 44345-12030 |
AL50..GLI;AL50..5F..XLI L=14.993 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-16050 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44360-16050 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44369A - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-16020 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44369-16020 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44413F - TUBE, PRESSURE FEED, NO.2 | ||||
| 44413-16080 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44413-16080 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44413G - BOLT, UNION(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90401-16008 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 90401-16008 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
AL50..GLI;AL50..5F..XLI |
2 | ||
| 90430-16242 |
AL50..GLI,SLI;AL50..5F..XLI |
2 | ||
| 44413H - GASKET(FOR PRESSURE FEED TUBE NO.2) | ||||
| 90430-16242 |
AL50..GLI;AL50..5F..XLI |
2 | ||
| 90430-16242 |
AL50..GLI,SLI;AL50..5F..XLI |
2 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-12040 |
AL50..GLI;AL50..5F..XLI |
1 | ||
| 44441-12040 |
AL50..GLI,SLI;AL50..5F..XLI |
1 | ||
| Common parts | ||||
| 90080-20098 | ||||
| 90119-06394 | ||||
| 90179-06054 | ||||
| 90206-30002 | ||||
| 90560-10008 | ||||
| 91611-60814 | ||||
| 91612-61016 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
