AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )

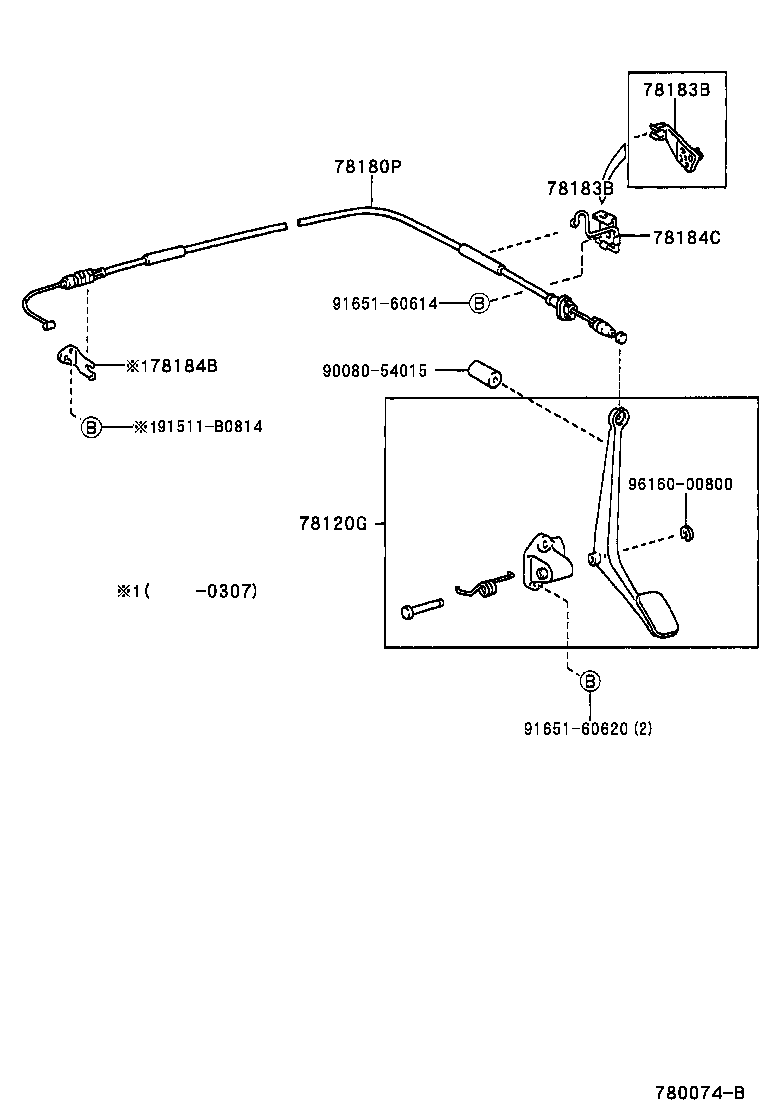

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-16150 |
AL50..ATM |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-0A030 |
AL50..GEN |
1 | ||
| 78180-0A010 |
AL50 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12160 |
AL50 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-12160 |
AL50 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12280 |
AL50 |
1 | ||
| 78184C - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-16080 |
AL50..GEN |
1 | ||
| Common parts | ||||
| 90080-54015 | ||||
| 91511-B0814 | ||||
| 91651-60614 | ||||
| 91651-60620 | ||||
| 96160-00800 | ||||
