AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

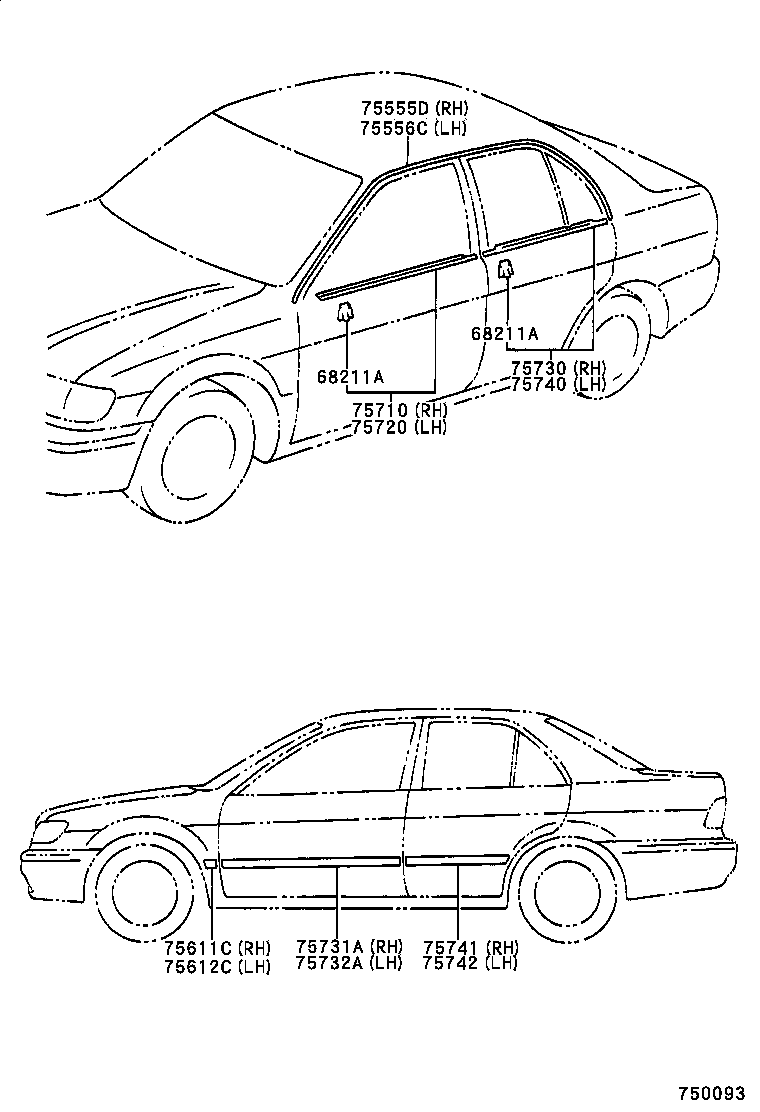

Click highlighted areas on diagram

diagram 68211A 68211A 75555D 75556C 75611C 75612C 75710 75720 75730 75731A 75732A 75740 75741 75742
Part # Description Qty Price
68211A - CLIP, DOOR BELT MOULDING
68212-16010

AL50..GEN;AL50..XLI..IDN

 22
68211A - CLIP, DOOR BELT MOULDING
68212-16010

AL50..GEN;AL50..XLI..IDN

 22
75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75555-0A010

AL50

 1
75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75555-0A010

AL50

 1
75611C - MOULDING, FRONT FENDER, OUTSIDE RH
75611-0A030

AL50..(SLI,XLI)..GEN

 1
75611-0A010

AL50..SLI,XLI

 1
75611-0A010

AL50

 1
75611-0A040J0

AL50..(GLI,SLI)..GEN

BLUE MC.,8M6

 1
75611-0A040K2

AL50..(GLI,SLI)..GEN

AMETHYST ME.,941

 1
75611-0A040G1

AL50..(GLI,SLI)..GEN

DK.GREEN MC.,6Q7

 1
75611-0A040D2

AL50..(GLI,SLI)..GEN

RED MC.,3M8

 1
75611-0A040F1

AL50..(GLI,SLI)..GEN

CHAMPAGNE ME.,586

 1
75611-0A040B1

AL50..(GLI,SLI)..GEN

SILVER ME.,1D0

 1
75612C - MOULDING, FRONT FENDER, OUTSIDE LH
75612-0A010

AL50..SLI,XLI

 1
75612-0A010

AL50

 1
75612-0A030

AL50..(SLI,XLI)..GEN

 1
75612-0A040J0

AL50..(GLI,SLI)..GEN

BLUE MC.,8M6

 1
75612-0A040F1

AL50..(GLI,SLI)..GEN

CHAMPAGNE ME.,586

 1
75612-0A040G1

AL50..(GLI,SLI)..GEN

DK.GREEN MC.,6Q7

 1
75612-0A040K2

AL50..(GLI,SLI)..GEN

AMETHYST ME.,941

 1
75612-0A040B1

AL50..(GLI,SLI)..GEN

SILVER ME.,1D0

 1
75612-0A040D2

AL50..(GLI,SLI)..GEN

RED MC.,3M8

 1
75710 - MOULDING ASSY, FRONT DOOR BELT, RH
75710-0A010

AL50

 1
75710-0A010

AL50..SLI,XLI

 1
75720 - MOULDING ASSY, FRONT DOOR BELT, LH
75720-0A010

AL50

 1
75720-0A010

AL50..SLI,XLI

 1
75730 - MOULDING ASSY, REAR DOOR BELT, RH
75730-0A010

AL50..SLI,XLI

 1
75730-0A010

AL50

 1
75731A - MOULDING, FRONT DOOR, OUTSIDE RH
75731-0A010

AL50

 1
75731-0A010

AL50..SLI,XLI

 1
75731-0A030

AL50..(SLI,XLI)..GEN

 1
75731-0A040B1

AL50..(GLI,SLI)..GEN

SILVER ME.,1D0

 1
75731-0A040D2

AL50..(GLI,SLI)..GEN

RED MC.,3M8

 1
75731-0A040K2

AL50..(GLI,SLI)..GEN

AMETHYST ME.,941

 1
75731-0A040F1

AL50..(GLI,SLI)..GEN

CHAMPAGNE ME.,586

 1
75731-0A040G1

AL50..(GLI,SLI)..GEN

DK.GREEN MC.,6Q7

 1
75731-0A040J0

AL50..(GLI,SLI)..GEN

BLUE MC.,8M6

 1
75732A - MOULDING, FRONT DOOR, OUTSIDE LH
75732-0A010

AL50

 1
75732-0A010

AL50..SLI,XLI

 1
75732-0A030

AL50..(SLI,XLI)..GEN

 1
75732-0A040D2

AL50..(GLI,SLI)..GEN

RED MC.,3M8

 1
75732-0A040B1

AL50..(GLI,SLI)..GEN

SILVER ME.,1D0

 1
75732-0A040G1

AL50..(GLI,SLI)..GEN

DK.GREEN MC.,6Q7

 1
75732-0A040F1

AL50..(GLI,SLI)..GEN

CHAMPAGNE ME.,586

 1
75732-0A040K2

AL50..(GLI,SLI)..GEN

AMETHYST ME.,941

 1
75732-0A040J0

AL50..(GLI,SLI)..GEN

BLUE MC.,8M6

 1
75740 - MOULDING ASSY, REAR DOOR BELT, LH
75740-0A010

AL50..SLI,XLI

 1
75740-0A010

AL50

 1
75741 - MOULDING, REAR DOOR, OUTSIDE RH
75741-0A010

AL50..SLI,XLI

 1
75741-0A010

AL50

 1
75741-0A030

AL50..(SLI,XLI)..GEN

 1
75741-0A040G1

AL50..(GLI,SLI)..GEN

DK.GREEN MC.,6Q7

 1
75741-0A040D2

AL50..(GLI,SLI)..GEN

RED MC.,3M8

 1
75741-0A040B1

AL50..(GLI,SLI)..GEN

SILVER ME.,1D0

 1
75741-0A040F1

AL50..(GLI,SLI)..GEN

CHAMPAGNE ME.,586

 1
75741-0A040J0

AL50..(GLI,SLI)..GEN

BLUE MC.,8M6

 1
75741-0A040K2

AL50..(GLI,SLI)..GEN

AMETHYST ME.,941

 1
75742 - MOULDING, REAR DOOR, OUTSIDE LH
75742-0A010

AL50

 1
75742-0A010

AL50..SLI,XLI

 1
75742-0A030

AL50..(SLI,XLI)..GEN

 1
75742-0A040B1

AL50..(GLI,SLI)..GEN

SILVER ME.,1D0

 1
75742-0A040J0

AL50..(GLI,SLI)..GEN

BLUE MC.,8M6

 1
75742-0A040D2

AL50..(GLI,SLI)..GEN

RED MC.,3M8

 1
75742-0A040F1

AL50..(GLI,SLI)..GEN

CHAMPAGNE ME.,586

 1
75742-0A040G1

AL50..(GLI,SLI)..GEN

DK.GREEN MC.,6Q7

 1
75742-0A040K2

AL50..(GLI,SLI)..GEN

AMETHYST ME.,941

 1
