AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

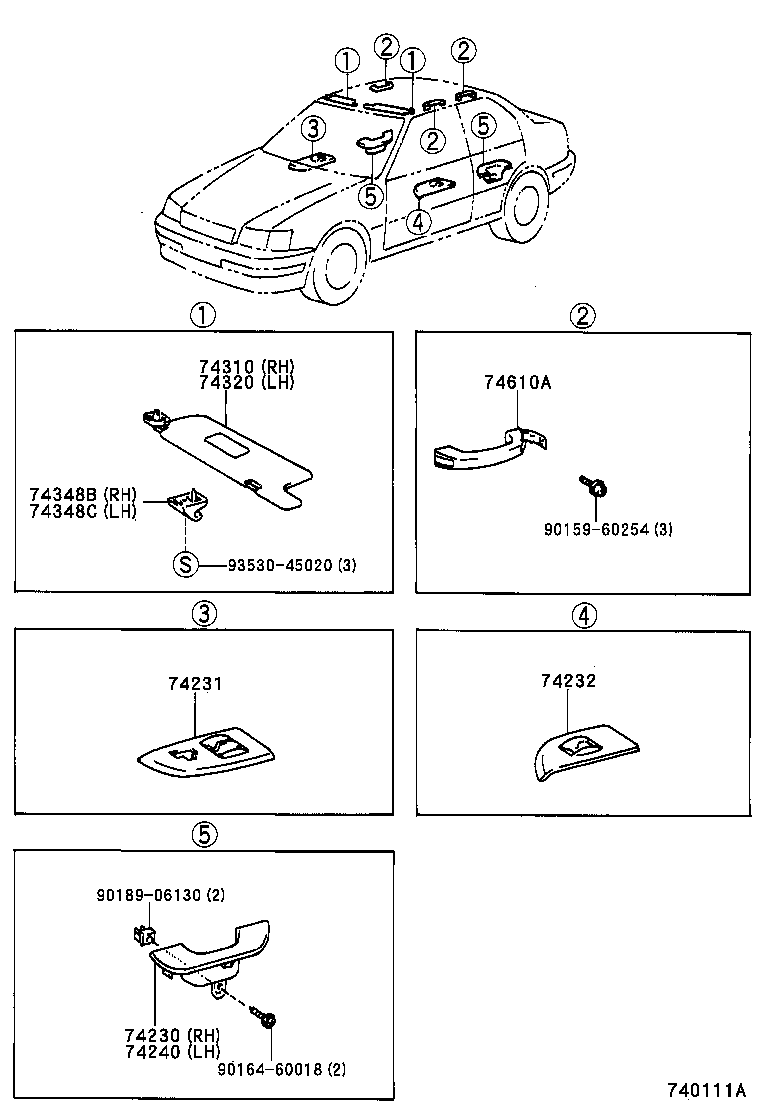

Click highlighted areas on diagram

diagram 74230 74231 74232 74240 74310 74320 74348B 74348C 74610A 9015960254 9016460018 9018906130 9353045020
Part # Description Qty Price
74230 - ARMREST ASSY, REAR, RH
74250-0A020B0

AL50

GRAY,TRIM1#

 1
74250-0A020B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0A020B0

AL50..SLI

GRAY,TRIM1#

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0A020B0

AL50..SLI

GRAY,TRIM1#

 1
74240 - ARMREST ASSY, REAR, LH
74260-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
74260-0A010B0

AL50

GRAY,TRIM1#

 1
74310 - VISOR ASSY, RH
74310-0A030B0

AL50

W(*80),GRAY,TRIM1#

 1
74310-0A010B0

AL50

GRAY,TRIM1#

 1
74310-0A010B0

AL50..SLI,XLI

GRAY,TRIM1#

 1
74310-0A070B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
74348B - HOLDER, VISOR, RH
74348-14010B1

AL50

GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-14010B1

AL50

GRAY,TRIM1#

 1
74610A - GRIP SUB-ASSY, ASSIST
74611-0A010B0

AL50

GRAY,TRIM1#

 3
Common parts
90159-60254
90164-60018
90189-06130
93530-45020
