AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

Click highlighted areas on diagram

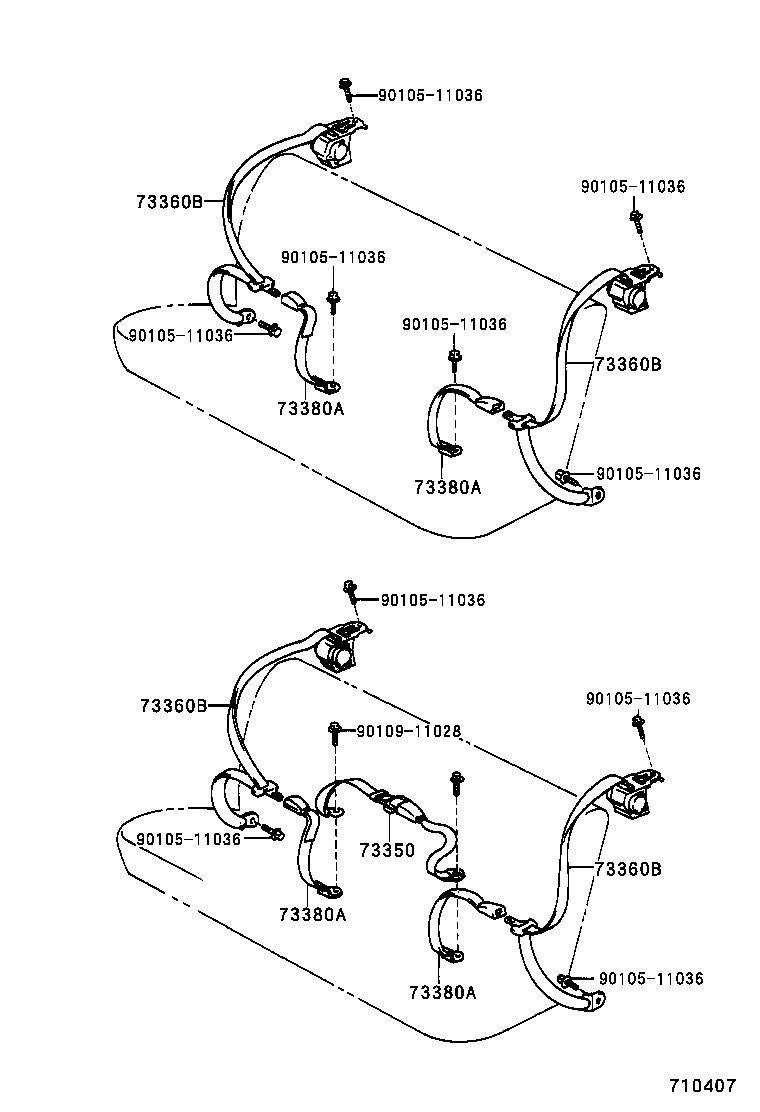

RR

diagram 73350 73360B 73360B 73360B 73360B 73380A 73380A 73380A 73380A 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010911028
Part # Description Qty Price
73360B - BELT ASSY, REAR SEAT, OUTER
73360-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
73360B - BELT ASSY, REAR SEAT, OUTER
73360-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
73360B - BELT ASSY, REAR SEAT, OUTER
73360-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
73360B - BELT ASSY, REAR SEAT, OUTER
73360-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
73380A - BELT ASSY, REAR SEAT, INNER
73380-0A010B0

AL50..(GLI,SLI)..GEN

BLUISH GRAY,TRIM1#

 2
Common parts
90105-11036
90109-11028

(9612- )

Click highlighted areas on diagram

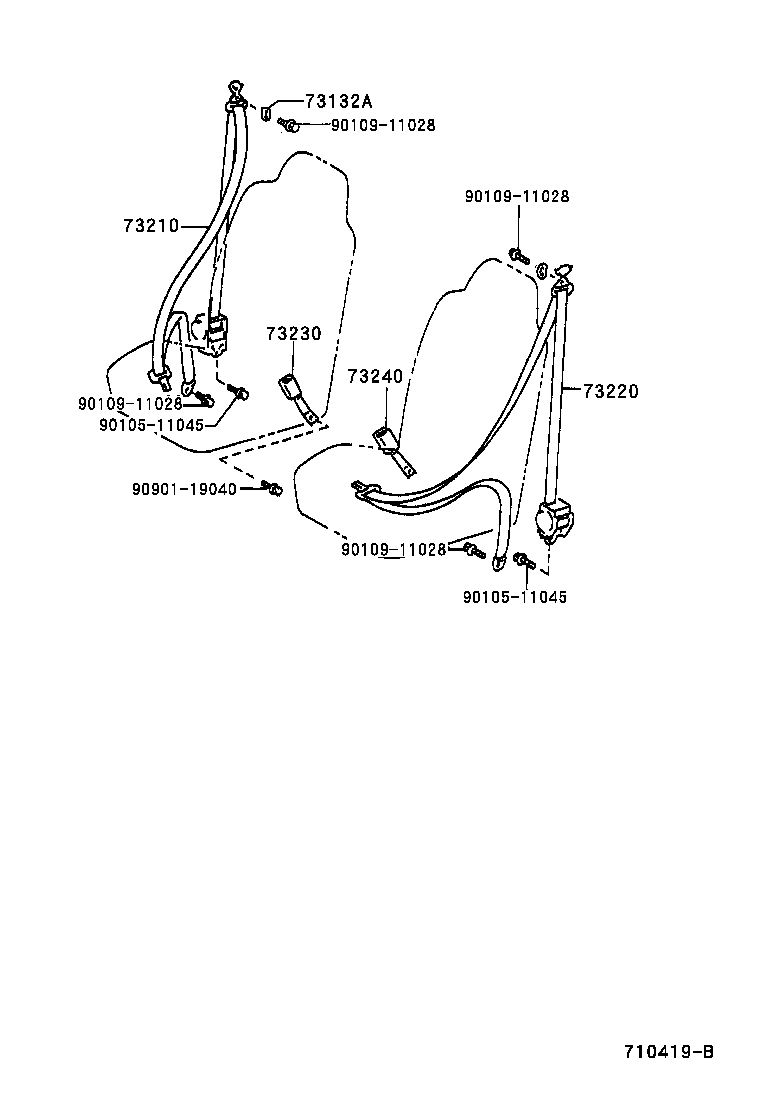

FR

diagram 73132A 73210 73220 73230 73240 9010511045 9010511045 9010911028 9010911028 9010911028 9010911028 9090119040
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-0A010B1

AL50

BLUISH GRAY,TRIM1#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-0A010B1

AL50

BLUISH GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-0A010B1

AL50

MD.GRAY,TRIM1#

 1
73230-0A020B0

AL50..GEN

MD.GRAY,TRIM1#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-0A010B1

AL50

MD.GRAY,TRIM1#

 1
Common parts
90105-11045
90109-11028
90901-19040
