AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

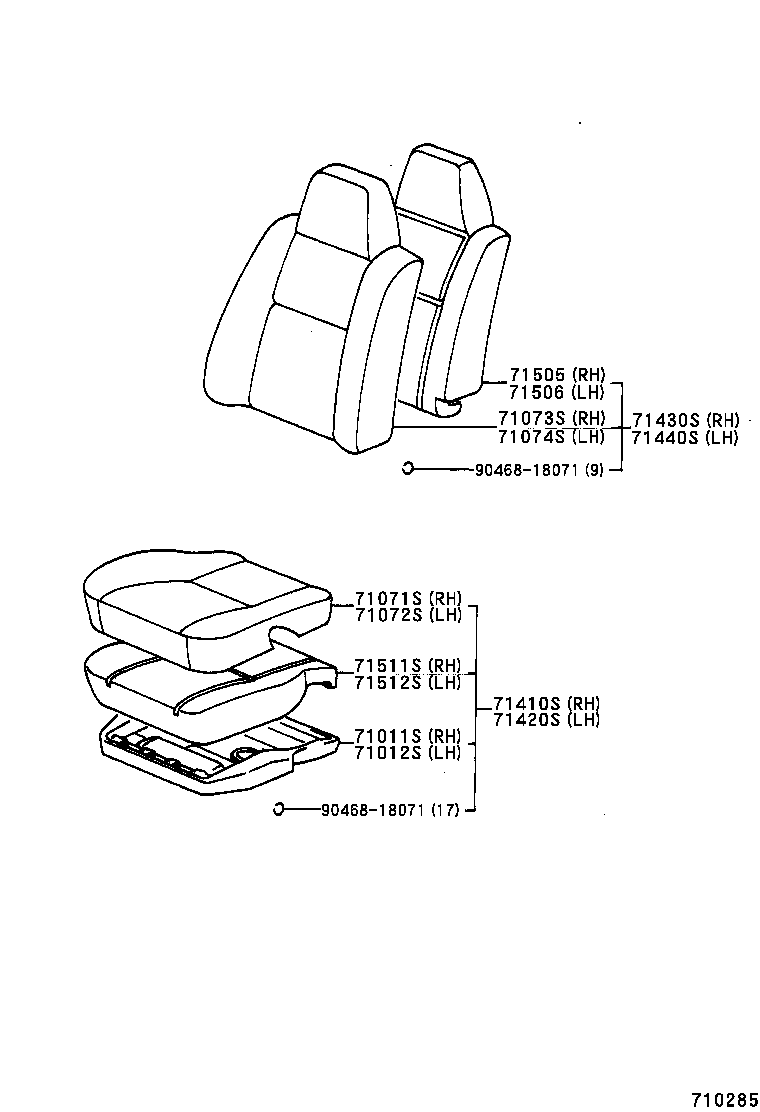

ILLUST NO. 1 OF 2(9612- )

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71505 71506 71511S 71512S 9046818071 9046818071
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0A010

AL50..GEN

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0A010

AL50..GEN

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71071-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71071-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71071-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71071-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71073-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71073-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71073-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71073-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71505 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, RH
71505-0A030

AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN

 1
71505-0A030

AL50..GLI,SLI

 1
71505-0A010

AL50

 1
71506 - PAD SUB-ASSY, FRONT SEAT BACK W/FRAME, LH
71505-0A030

AL50..GLI,SLI

 1
71505-0A030

AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN

 1
71505-0A010

AL50

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0A010

AL50..GEN

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-0A010

AL50..GEN

 1
Common parts
90468-18071

ILLUST NO. 2 OF 2(9612- )

Click highlighted areas on diagram

diagram 71811D 71812D 71861 71862 72011 72012 72021 72022 72137 72138 72157A 72158 72201 72345A 72525A 72526 9011910349 9011910349 9011910349 9011910349 9151160814 9151160814 9151581025 9356014008
Part # Description Qty Price
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
71811-0A010B0

AL50

GRAY,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0A010B0

AL50

GRAY,TRIM1#

 1
71812-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0A010B0

AL50

GRAY,TRIM1#

 1
71861-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
71862-0A010B0

AL50

GRAY,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-0A010

AL50

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-0A010

AL50

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-0A010

AL50

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-0A010

AL50

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-16040

AL50

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-16040

AL50

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-16080

AL50

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-16080

AL50

 1
72201 - HANDLE SUB-ASSY, SEAT TRACK
72201-0A010

AL50

 2
72345A - PIPE, RECLINING CONNECTING
72345-0A010

AL50

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
72525-0A010B0

AL50

GRAY,TRIM1#

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0A010B0

AL50

GRAY,TRIM1#

 1
72526-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 1
Common parts
90119-10349
91511-60814
91515-81025
93560-14008

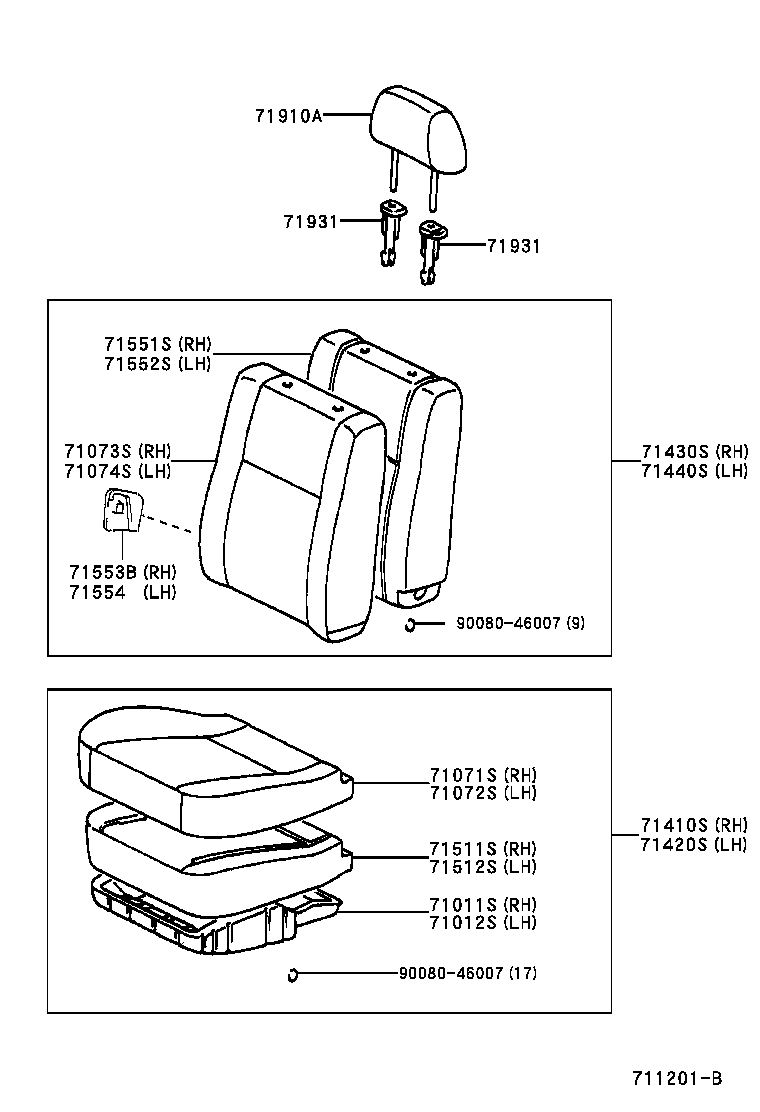

ILLUST NO. 1 OF 2(9810- )

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71553B 71554 71910A 71931 71931 9008046007 9008046007
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-0A010

AL50..GEN

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0A010

AL50..GEN

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71071-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71071-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71071-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71071-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71073-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71073-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0A070B1

AL50..SLI

GRAY,TRIM1#

 1
71073-0A100B0

AL50..SLI

GRAY,TRIM1#

 1
71073-0A101B2

AL50..SLI

GRAY,TRIM1#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71410-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71410-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71430-0A100B0

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A070B1

AL50..SLI

***,GRAY,TRIM1#

 1
71430-0A101B2

AL50..SLI

***,GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0A010

AL50..GEN

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71511-0A010

AL50..GEN

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0A050B0

AL50..SLI

GRAY,TRIM1#

 2
71910-0A030

AL50..SLI

 2
71910-0A051B2

AL50..SLI

GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-04010B1

AL50..GLI,SLI

W(LOCK),GRAY,TRIM1#

 2
71930-04010B2

AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN

W(LOCK),BLUISH GRAY,TRIM1#

 2
71931-04010B1

AL50..GLI,SLI

W/O(LOCK),GRAY,TRIM1#

 2
71931-04010B2

AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN

W/O(LOCK),BLUISH GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-04010B1

AL50..GLI,SLI

W(LOCK),GRAY,TRIM1#

 2
71930-04010B2

AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN

W(LOCK),BLUISH GRAY,TRIM1#

 2
71931-04010B1

AL50..GLI,SLI

W/O(LOCK),GRAY,TRIM1#

 2
71931-04010B2

AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN

W/O(LOCK),BLUISH GRAY,TRIM1#

 2
Common parts
90080-46007
