AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

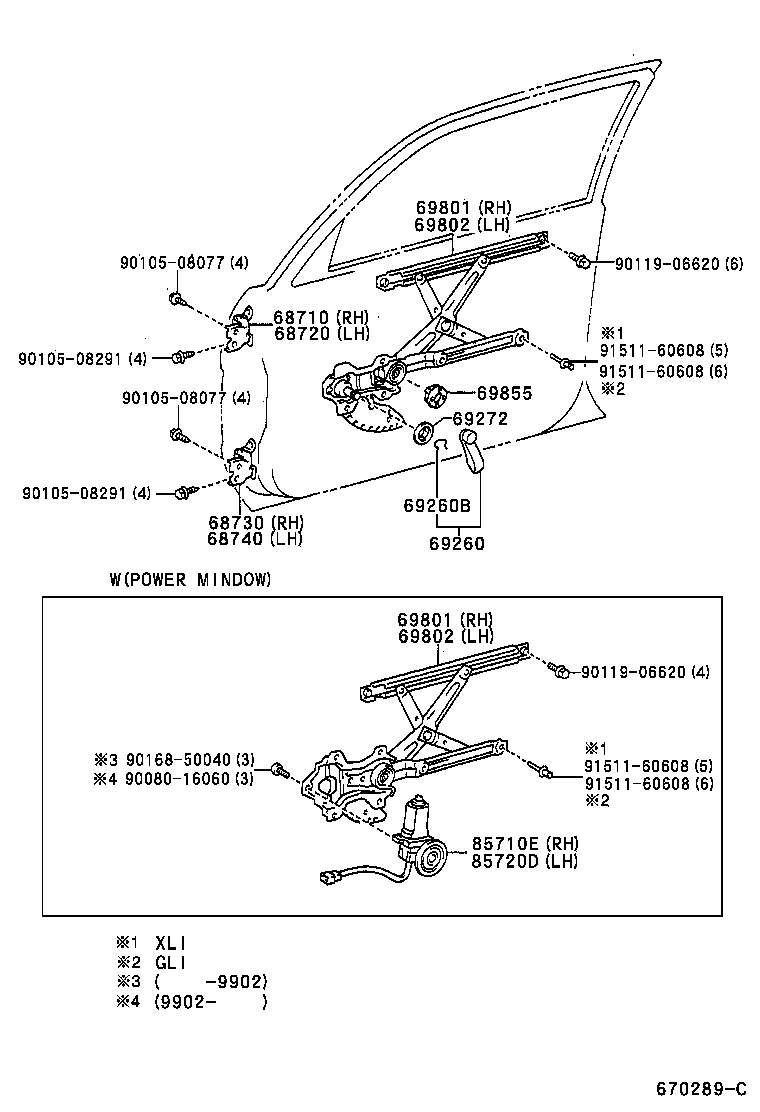

Click highlighted areas on diagram

diagram 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69855 85710E 85720D 9008016060 9010508077 9010508077 9010508291 9010508291 9011906620 9011906620 9016850040 9151160608 9151160608 9151160608 9151160608
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-16060

AL50

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-16060

AL50

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-16060

AL50

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-16060

AL50

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-0A010B0

AL50..(SLI,XLI)..GEN

GRAY,TRIM1#

 2
69260-0A010B0

AL50..SLI,XLI;AL50..(3FC,5F)..GLI

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01274

AL50..SLI,XLI

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69268-20020

AL50..SLI,XLI

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0A010

AL50..GLI,SLI

 1
69810-0A010

AL50..SLI,XLI

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-0A010

AL50..GLI,SLI

 1
69810-0A010

AL50..SLI,XLI

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-0A010

AL50..SLI,XLI

 1
69802-0A010

AL50..GLI,SLI

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-0A010

AL50..SLI,XLI

 1
69802-0A010

AL50..GLI,SLI

 1
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

AL50

 2
Common parts
90080-16060
90105-08077
90105-08291
90119-06620
90168-50040
91511-60608
