AL50R-AEPFK (1998)
Toyota Soluna

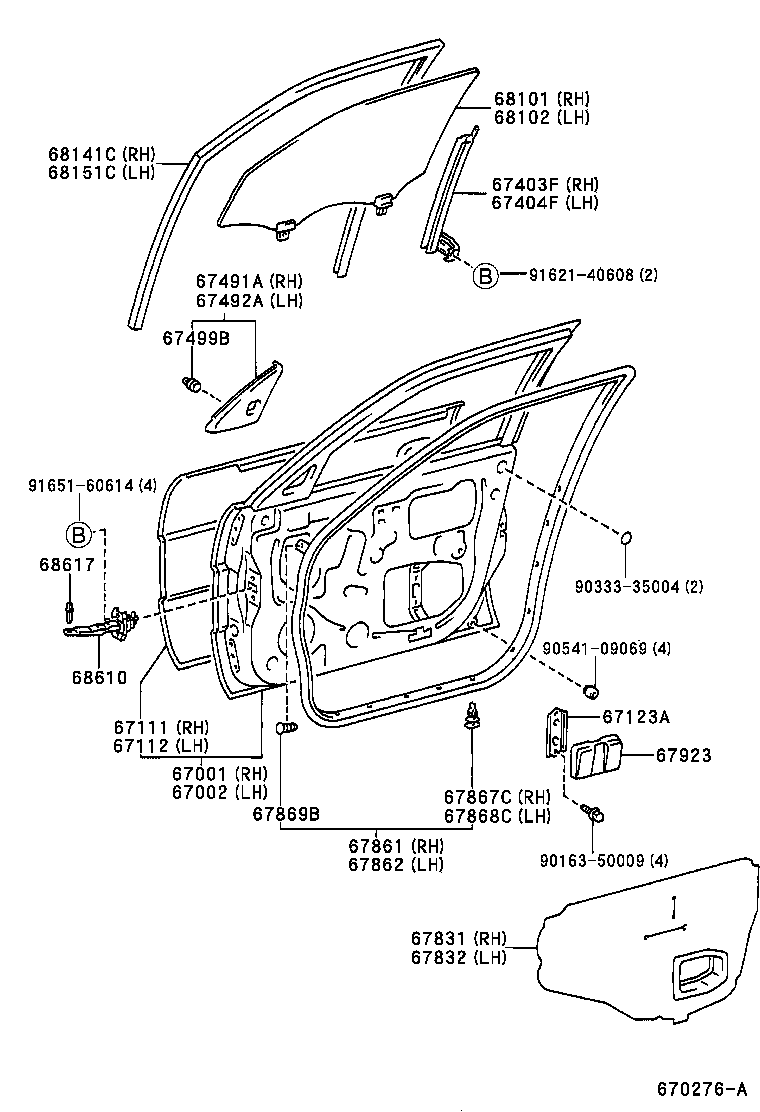

ILLUST NO. 2 OF 2(9612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-0A901 |
AL50..GEN |
1 | ||
| 67001-0A900 |
AL50 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-0A900 |
AL50 |
1 | ||
| 67002-0A901 |
AL50..GEN |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-0A010 |
AL50 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-0A010 |
AL50 |
1 | ||
| 67123A - BRACKET, FRONT DOOR OUTSIDE PANEL | ||||
| 67123-0A010 |
AL50 |
2 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-16170 |
AL50 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-16170 |
AL50 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0A010 |
AL50..4FC;AL50..5F..XLI..GEN;AL50..5F..(GLI,SLI) |
1 | ||
| 67491-0A020 |
AL50..SLI;AL50..XLI..IDN |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0A020 |
AL50..SLI;AL50..XLI..IDN |
1 | ||
| 67492-0A010 |
AL50..4FC;AL50..5F..XLI..GEN;AL50..5F..(GLI,SLI) |
1 | ||
| 67499B - RETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2 | ||||
| 67771-0A020 |
AL50 |
4 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-0A010 |
AL50..SLI,XLI |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-0A020 |
AL50..SLI,XLI |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-0A010 |
AL50 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-0A010 |
AL50 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-0A010 |
AL50 |
15 | ||
| 67867-12150 |
AL50 |
15 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AL50 |
16 | ||
| 67867-12150 |
AL50 |
15 | ||
| 67868-0A010 |
AL50 |
15 | ||
| 67869B - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-32020 |
AL50 |
2 | ||
| 67923 - CUSHION, FRONT DOOR STIFFENER, NO.1 | ||||
| 67923-16030 |
AL50 |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68110-0A010 |
AL50 *TEM,T=3.5,CLEAR |
1 | ||
| 68110-0A050 |
AL50..GEN *TEM,T=3.5,GREEN,W/O(EUROPE APPROVAL MARK) |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68120-0A010 |
AL50 *TEM,T=3.5,CLEAR |
1 | ||
| 68120-0A050 |
AL50..GEN *TEM,T=3.5,GREEN,W/O(EUROPE APPROVAL MARK) |
1 | ||
| 68141C - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-0A020 |
AL50 |
1 | ||
| 68141-0A010 |
AL50 |
1 | ||
| 68151C - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-0A010 |
AL50 |
1 | ||
| 68151-0A020 |
AL50 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-16090 |
AL50 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-16010 |
AL50 |
2 | ||
| Common parts | ||||
| 90163-50009 | ||||
| 90333-35004 | ||||
| 90541-09069 | ||||
| 91621-40608 | ||||
| 91651-60614 | ||||

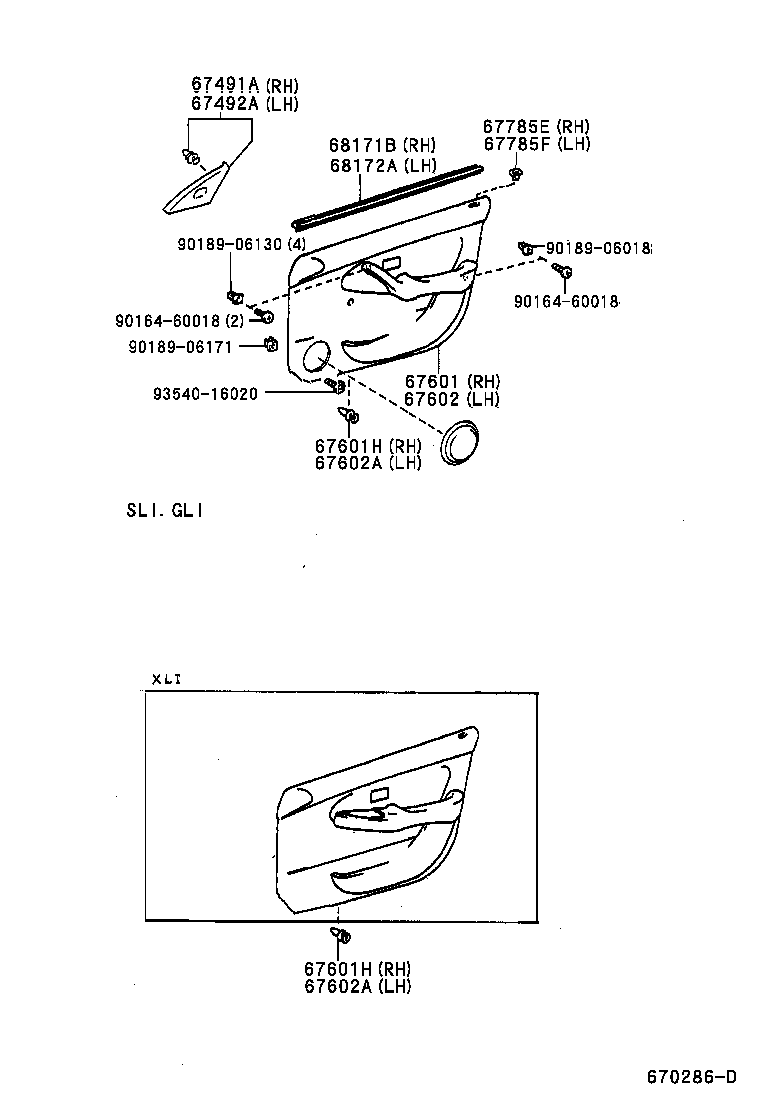

ILLUST NO. 1 OF 2(9612- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-0A010 |
AL50..4FC;AL50..5F..XLI..GEN;AL50..5F..(GLI,SLI) |
1 | ||
| 67491-0A020 |
AL50..SLI;AL50..XLI..IDN |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-0A020 |
AL50..SLI;AL50..XLI..IDN |
1 | ||
| 67492-0A010 |
AL50..4FC;AL50..5F..XLI..GEN;AL50..5F..(GLI,SLI) |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-0A080B0 |
AL50..SLI GRAY,TRIM1# |
1 | ||
| 67610-0A110B0 |
AL50..SLI GRAY,TRIM1#,TRIM = FA** |
1 | ||
| 67610-0A150B0 |
AL50..SLI BLUISH GRAY,TRIM1# |
1 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-22040 |
AL50 PINK |
2 | ||
| 67771-0A010 |
AL50 NATURAL |
8 | ||
| 67771-0A030 |
AL50..4FC;AL50..5F..IDN;AL50..5F..SLI BLACK |
2 | ||
| 67771-0A050 |
AL50..4FC;AL50..5F..SLI BROWN |
8 | ||
| 67771-0A050 |
AL50..GEN BROWN |
7 | ||
| 67601H - RETAINER, DOOR TRIM, RH | ||||
| 67771-22040 |
AL50 PINK |
2 | ||
| 67771-0A010 |
AL50 NATURAL |
8 | ||
| 67771-0A030 |
AL50..4FC;AL50..5F..IDN;AL50..5F..SLI BLACK |
2 | ||
| 67771-0A050 |
AL50..4FC;AL50..5F..SLI BROWN |
8 | ||
| 67771-0A050 |
AL50..GEN BROWN |
7 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-0A080B0 |
AL50..SLI GRAY,TRIM1# |
1 | ||
| 67620-0A150B0 |
AL50..SLI BLUISH GRAY,TRIM1# |
1 | ||
| 67620-0A110B0 |
AL50..SLI GRAY,TRIM1#,TRIM = FA** |
1 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-0A010 |
AL50 NATURAL |
8 | ||
| 67771-0A030 |
AL50..4FC;AL50..5F..SLI BLACK |
2 | ||
| 67771-0A050 |
AL50..GEN BROWN |
7 | ||
| 67771-0A050 |
AL50..4FC;AL50..5F..SLI BROWN |
8 | ||
| 67771-22040 |
AL50 PINK |
2 | ||
| 67771-0A030 |
AL50 BLACK |
2 | ||
| 67602A - RETAINER, DOOR TRIM, LH | ||||
| 67771-0A010 |
AL50 NATURAL |
8 | ||
| 67771-0A030 |
AL50..4FC;AL50..5F..SLI BLACK |
2 | ||
| 67771-0A050 |
AL50..GEN BROWN |
7 | ||
| 67771-0A050 |
AL50..4FC;AL50..5F..SLI BROWN |
8 | ||
| 67771-22040 |
AL50 PINK |
2 | ||
| 67771-0A030 |
AL50 BLACK |
2 | ||
| 67785E - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH | ||||
| 69751-0A010B0 |
AL50 BLUISH GRAY,TRIM1# |
1 | ||
| 67785F - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH | ||||
| 69751-0A010B0 |
AL50 BLUISH GRAY,TRIM1# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-0A010 |
AL50 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-0A010 |
AL50 |
1 | ||
| Common parts | ||||
| 90164-60018 | ||||
| 90189-06018 | ||||
| 90189-06130 | ||||
| 90189-06171 | ||||
| 93540-16020 | ||||
