AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

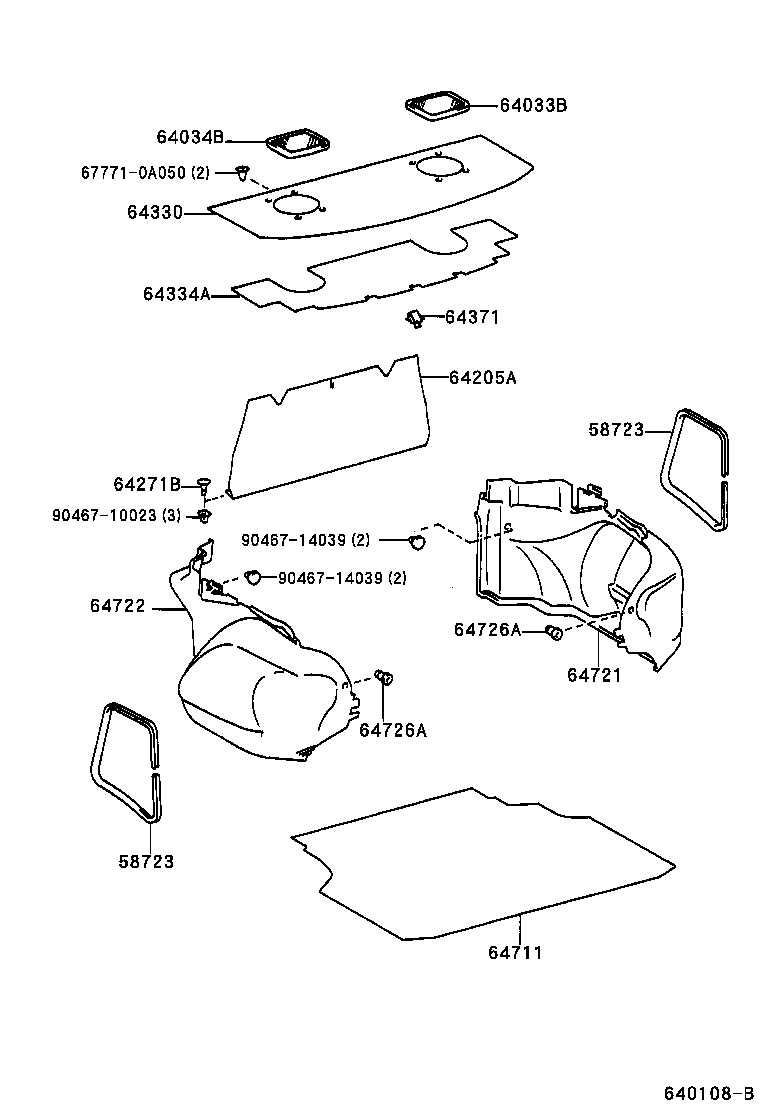

Click highlighted areas on diagram

diagram 58723 58723 64033B 64034B 64205A 64271B 64330 64334A 64371 64711 64721 64722 64726A 64726A 677710A050 9046710023 9046714039 9046714039
Part # Description Qty Price
64205A - COVER SUB-ASSY, ROOM PARTITION
64275-16040C1

AL50

BLACK,TRIM1#

 1
64271B - CLIP(FOR ROOM PARTITION BOARD)
90467-07115C0

AL50

BLACK,TRIM1#

 3
64330 - PANEL ASSY, PACKAGE TRAY TRIM
64330-0A070B0

AL50..SLI

BLUISH GRAY,TRIM1#

 1
64330-0A010B0

AL50..SLI,XLI

BLUISH GRAY,TRIM1#

 1
64334A - PAD, PACKAGE TRAY TRIM
64334-0A010

AL50

 1
64371 - RETAINER, PACKAGE TRAY TRIM
64371-0A010

AL50

 3
64711 - MAT, LUGGAGE COMPARTMENT FLOOR
64711-0A020C0

AL50..(SLI,XLI)..GEN

BLACK,TRIM1#

 1
64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
64721-0A010C0

AL50..(SLI,XLI)..GEN

BLACK,TRIM1#

 1
64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
64722-0A010C0

AL50..(SLI,XLI)..GEN

BLACK,TRIM1#

 1
Common parts
67771-0A050
90467-10023
90467-14039
