AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )

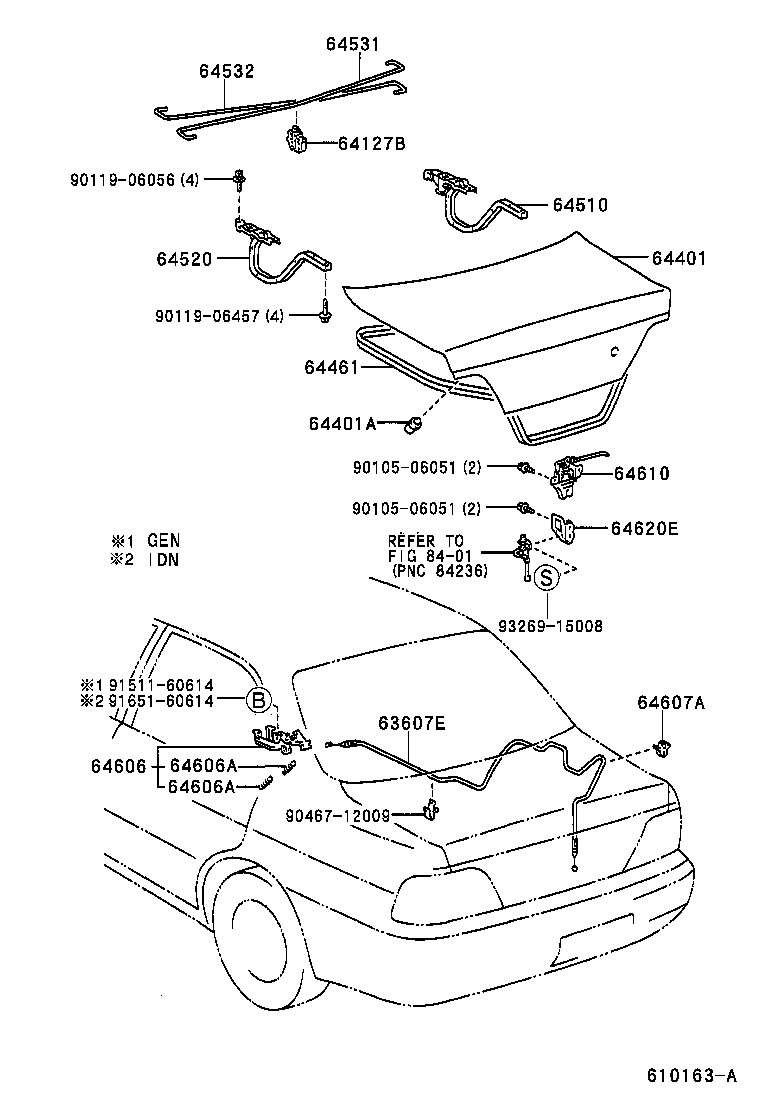

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63607E - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL | ||||
| 64607-0A010 |
AL50..GEN |
1 | ||
| 64127B - SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR | ||||
| 64127-16070 |
AL50 |
1 | ||
| 64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64401-0A010 |
AL50 |
1 | ||
| 64401-0A020 |
AL50..GEN |
1 | ||
| 64401-0A020 |
AL50 |
1 | ||
| 64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL) | ||||
| 90541-09087 |
AL50 |
2 | ||
| 64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR | ||||
| 64461-0A010 |
AL50 |
1 | ||
| 64510 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH | ||||
| 64510-0A010 |
AL50 |
1 | ||
| 64520 - HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH | ||||
| 64520-0A010 |
AL50 |
1 | ||
| 64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH | ||||
| 64531-0A010 |
AL50 |
1 | ||
| 64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH | ||||
| 64532-0A010 |
AL50 |
1 | ||
| 64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN | ||||
| 64606-16050 |
AL50 |
1 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AL50 |
2 | ||
| 64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER) | ||||
| 90506-09004 |
AL50 |
2 | ||
| 64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE) | ||||
| 90959-01369 |
AL50..ATM;AL50..5F..(GLI,SLI) |
6 | ||
| 90959-01369 |
AL50..GEN |
1 | ||
| 64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64610-0A010 |
AL50 |
1 | ||
| 64610-0A020 |
AL50..GEN |
1 | ||
| 64610-0A020 |
AL50 |
1 | ||
| 64620E - STRIKER ASSY, LUGGAGE COMPARTMENT DOOR | ||||
| 64621-12070 |
AL50 |
1 | ||
| Common parts | ||||
| 90105-06051 | ||||
| 90119-06056 | ||||
| 90119-06457 | ||||
| 90467-12009 | ||||
| 91511-60614 | ||||
| 91651-60614 | ||||
| 93269-15008 | ||||
| Linked diagrams | ||||
| 8401 | ||||
