AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

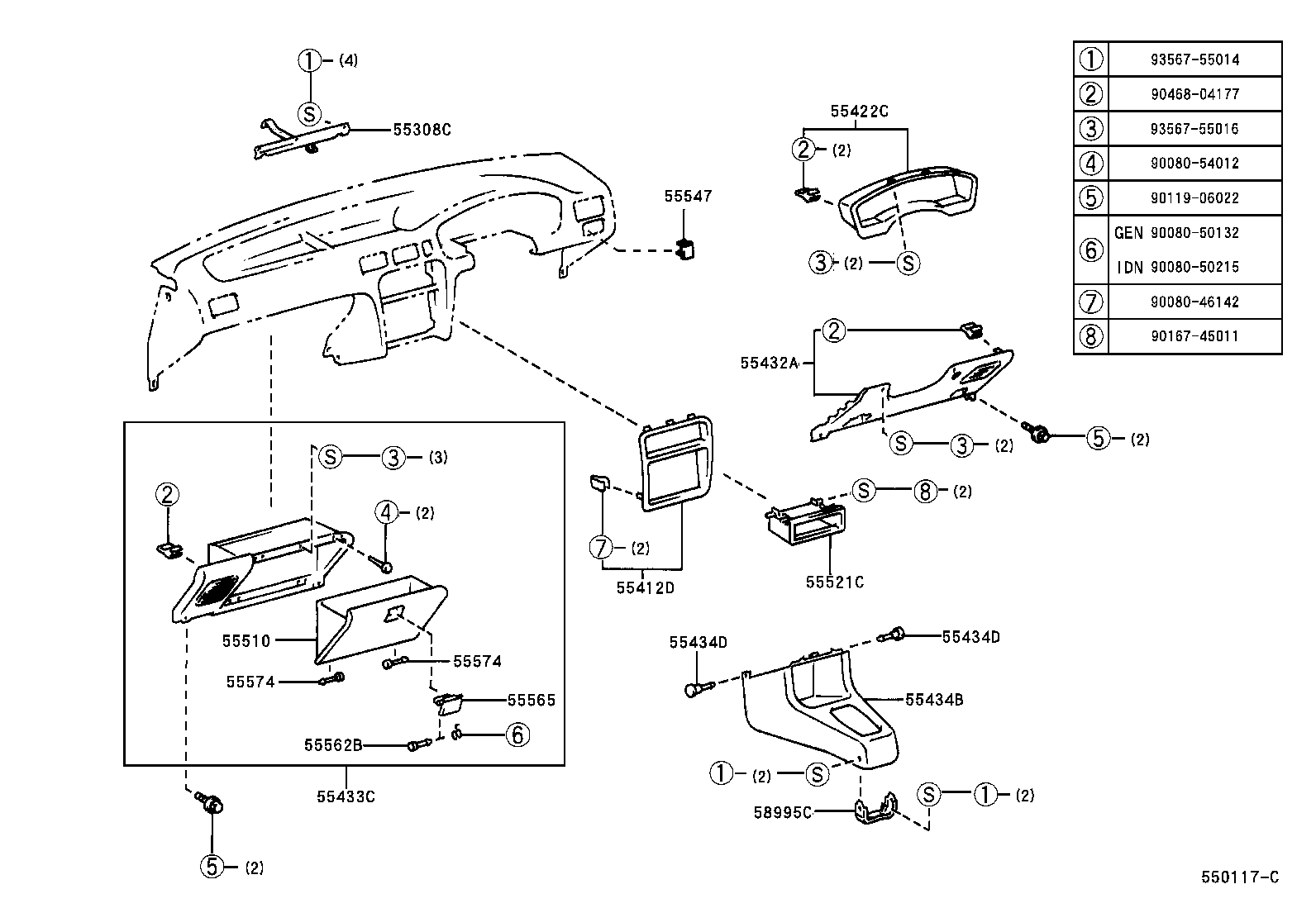

ILLUST NO. 2 OF 2(9612- )

Click highlighted areas on diagram

diagram 55308C 55412D 55422C 55432A 55433C 55434B 55434D 55434D 55510 55521C 55547 55562B 55565 55574 55574 58995C 9008046142 9008050132 9008050215 9008054012 9011906022 9016745011 9046804177 9356755014 9356755016
Part # Description Qty Price
55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-0A010

AL50

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-0A010

AL50..GEN

 1
55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER
55422-0A010

AL50..GEN

 1
55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH
55432-0A010B0

AL50..GEN

BLUISH GRAY,TRIM1#

 1
55432-0A010B0

AL50..(SLI,XLI)..GEN

BLUISH GRAY,TRIM1#

 1
55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH
55045-0A010B0

AL50..GEN

BLUISH GRAY,TRIM1#

 1
55045-0A010B0

AL50..(SLI,XLI)..GEN

BLUISH GRAY,TRIM1#

 1
55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER
55434-0A010B0

AL50..GEN

BLUISH GRAY,TRIM1#

 1
55434-0A010B0

AL50..(SLI,XLI)..GEN

BLUISH GRAY,TRIM1#

 1
55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
90467-07071B3

AL50

GRAY,TRIM1#

 2
55434D - CLIP, INSTRUMENT PANEL FINISH, LOWER CENTER
90467-07071B3

AL50

GRAY,TRIM1#

 2
55510 - DOOR ASSY, GLOVE COMPARTMENT
55550-0A010B0

AL50..GEN

BLUISH GRAY,TRIM1#

 1
55550-0A010B0

AL50..(SLI,XLI)..GEN

BLUISH GRAY,TRIM1#

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-20030B0

AL50..SLI;AL50..5F..XLI

BLUISH GRAY,TRIM1#

 1
55547-20030B0

AL50..SLI

BLUISH GRAY,TRIM1#

 1
55562B - PIN, GLOVE COMPARTMENT DOOR LOCK
55562-0A010

AL50..GEN

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-0A010B0

AL50..(SLI,XLI)..GEN

BLUISH GRAY,TRIM1#

 1
55565-0A010B0

AL50..GEN

BLUISH GRAY,TRIM1#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-0A010

AL50..GEN

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-0A010

AL50..GEN

 2
58995C - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-0A010

AL50

 1
Common parts
90080-46142
90080-50132
90080-50215
90080-54012
90119-06022
90167-45011
90468-04177
93567-55014
93567-55016

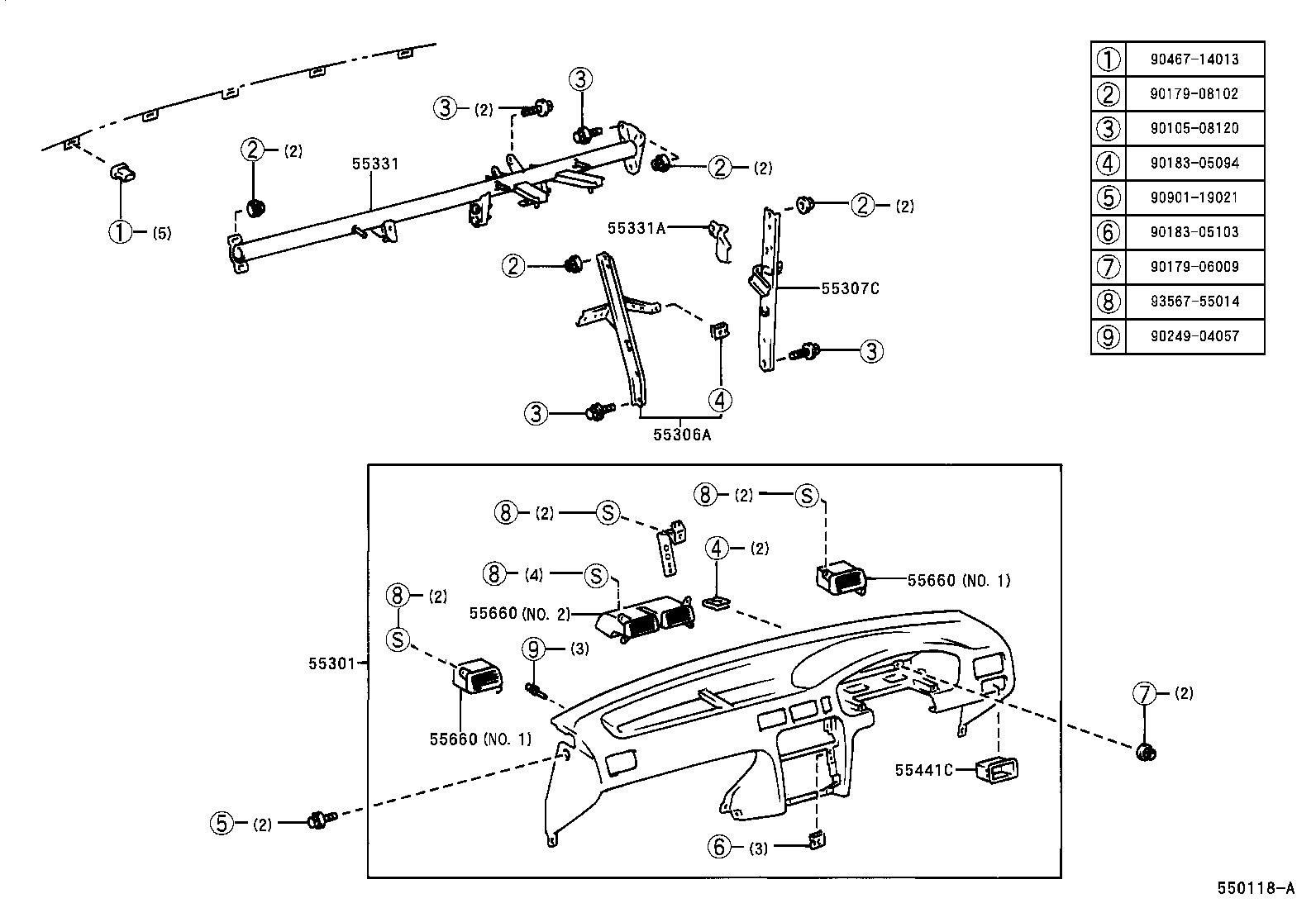

ILLUST NO. 1 OF 2(9612- )

Click highlighted areas on diagram

diagram 55301 55306A 55307C 55331 55331A 55441C 55660 55660 55660 9010508120 9017906009 9017908102 9018305094 9018305103 9024904057 9046714013 9090119021 9356755014
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-0A010B0

AL50..GEN

BLUISH GRAY,TRIM1#

 1
55301-0A010B0

AL50..(SLI,XLI)..GEN

BLUISH GRAY,TRIM1#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-0A010

AL50

 1
55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55307-0A010

AL50

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-0A010

AL50

 1
55330-0A030

AL50..GEN

 1
55331A - PRTECTOR, REINFORCEMENT, INSTRUMENT PANEL
45874-16060

AL50

 1
55441C - BOX, INSTRUMENT PANEL COIN
55441-0A010B0

AL50

BLUISH GRAY,TRIM1#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-0A010B0

AL50

BLUISH GRAY,TRIM1#,NO.1

 2
55660-0A010B0

AL50

BLUISH GRAY,TRIM1#,NO.2

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-0A010B0

AL50

BLUISH GRAY,TRIM1#,NO.1

 2
55660-0A010B0

AL50

BLUISH GRAY,TRIM1#,NO.2

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55650-0A010B0

AL50

BLUISH GRAY,TRIM1#,NO.1

 2
55660-0A010B0

AL50

BLUISH GRAY,TRIM1#,NO.2

 1
Common parts
90105-08120
90179-06009
90179-08102
90183-05094
90183-05103
90249-04057
90467-14013
90901-19021
93567-55014
