AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )

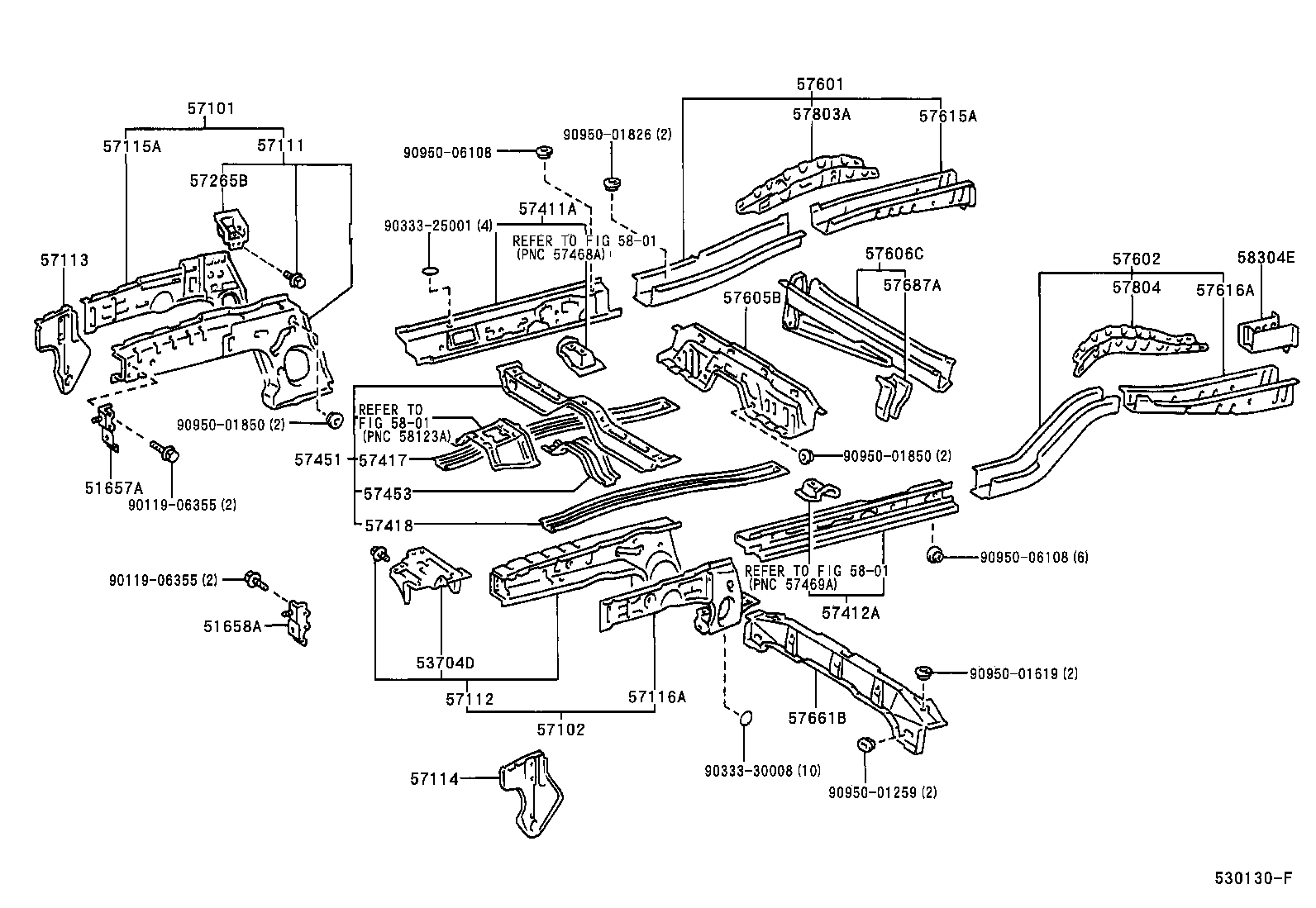

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51657A - BRACKET, FRONT BUMPER ARM, RH | ||||
| 51657-0A010 |
AL50..GEN |
1 | ||
| 51657-0A010 |
AL50..GEN |
1 | ||
| 51657-0A010 |
AL50 |
1 | ||
| 51658A - BRACKET, FRONT BUMPER ARM, LH | ||||
| 51658-0A010 |
AL50..GEN |
1 | ||
| 51658-0A010 |
AL50..GEN |
1 | ||
| 51658-0A010 |
AL50 |
1 | ||
| 53704D - SUPPORT SUB-ASSY, BATTERY, LH | ||||
| 53704-0A010 |
AL50 |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-0A020 |
AL50 |
1 | ||
| 57101-0A010 |
AL50 |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-0A020 |
AL50 |
1 | ||
| 57102-0A010 |
AL50 |
1 | ||
| 57111 - MEMBER, FRONT SIDE, RH | ||||
| 57111-0A901 |
AL50 |
1 | ||
| 57111-0A900 |
AL50 |
1 | ||
| 57111-0A901 |
AL50..GEN |
1 | ||
| 57112 - MEMBER, FRONT SIDE, LH | ||||
| 57112-0A901 |
AL50..GEN |
1 | ||
| 57112-0A900 |
AL50 |
1 | ||
| 57113 - EXTENSION, FRONT SIDE MEMBER, RH | ||||
| 57113-0A020 |
AL50..GEN |
1 | ||
| 57113-0A010 |
AL50 |
1 | ||
| 57114 - EXTENSION, FRONT SIDE MEMBER, LH | ||||
| 57114-0A020 |
AL50..GEN |
1 | ||
| 57114-0A010 |
AL50 |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-0A901 |
AL50..GEN |
1 | ||
| 57115-0A900 |
AL50 |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-0A900 |
AL50 |
1 | ||
| 57116-0A901 |
AL50 |
1 | ||
| 57265B - BRACKET, ENGINE MOUNTING, RH | ||||
| 57265-0A010 |
AL50 |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57401-0A900 |
AL50 |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57402-0A900 |
AL50 |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-0A010 |
AL50 |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57417-0A010 |
AL50 |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-0A900 |
AL50 |
1 | ||
| 57408-0A900 |
AL50..SLI,XLI |
1 | ||
| 57453 - MEMBER, FRONT FLOOR CROSS, NO.3 | ||||
| 57453-10021 |
AL50 |
1 | ||
| 57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH | ||||
| 57601-0A010 |
AL50 |
1 | ||
| 57601-0A020 |
AL50 |
1 | ||
| 57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH | ||||
| 57602-0A901 |
AL50 |
1 | ||
| 57602-0A901 |
AL50 |
1 | ||
| 57602-0A901 |
AL50 |
1 | ||
| 57602-0A900 |
AL50 |
1 | ||
| 57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1 | ||||
| 57605-0A010 |
AL50 |
1 | ||
| 57605-0A020 |
AL50..GEN |
1 | ||
| 57605-0A020 |
AL50 |
1 | ||
| 57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2 | ||||
| 57606-0A010 |
AL50 |
1 | ||
| 57615A - MEMBER, REAR FLOOR SIDE, REAR RH | ||||
| 57615-0A010 |
AL50 |
1 | ||
| 57615-0A010 |
AL50 |
1 | ||
| 57616A - MEMBER, REAR FLOOR SIDE, REAR LH | ||||
| 57616-0A010 |
AL50 |
1 | ||
| 57616-0A010 |
AL50 |
1 | ||
| 57661B - MEMBER, REAR FLOOR CROSS, FRONT | ||||
| 57661-16020 |
AL50 |
1 | ||
| 57661-0A010 |
AL50..GEN |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57687-16020 |
AL50 |
1 | ||
| 57803A - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH | ||||
| 57803-16021 |
AL50 |
1 | ||
| 57803-16021 |
AL50 |
1 | ||
| 57804 - REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH | ||||
| 57804-16060 |
AL50 |
1 | ||
| 57804-16060 |
AL50 |
1 | ||
| 58304E - REINFORCE SUB-ASSY, REAR BUMPER ARM SUPPORT, LH | ||||
| 58304-16080 |
AL50 |
1 | ||
| 58304-16080 |
AL50 |
1 | ||
| Common parts | ||||
| 90119-06355 | ||||
| 90333-25001 | ||||
| 90333-30008 | ||||
| 90950-01259 | ||||
| 90950-01619 | ||||
| 90950-01826 | ||||
| 90950-01850 | ||||
| 90950-06108 | ||||
| Linked diagrams | ||||
| 5801 | ||||
