AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )

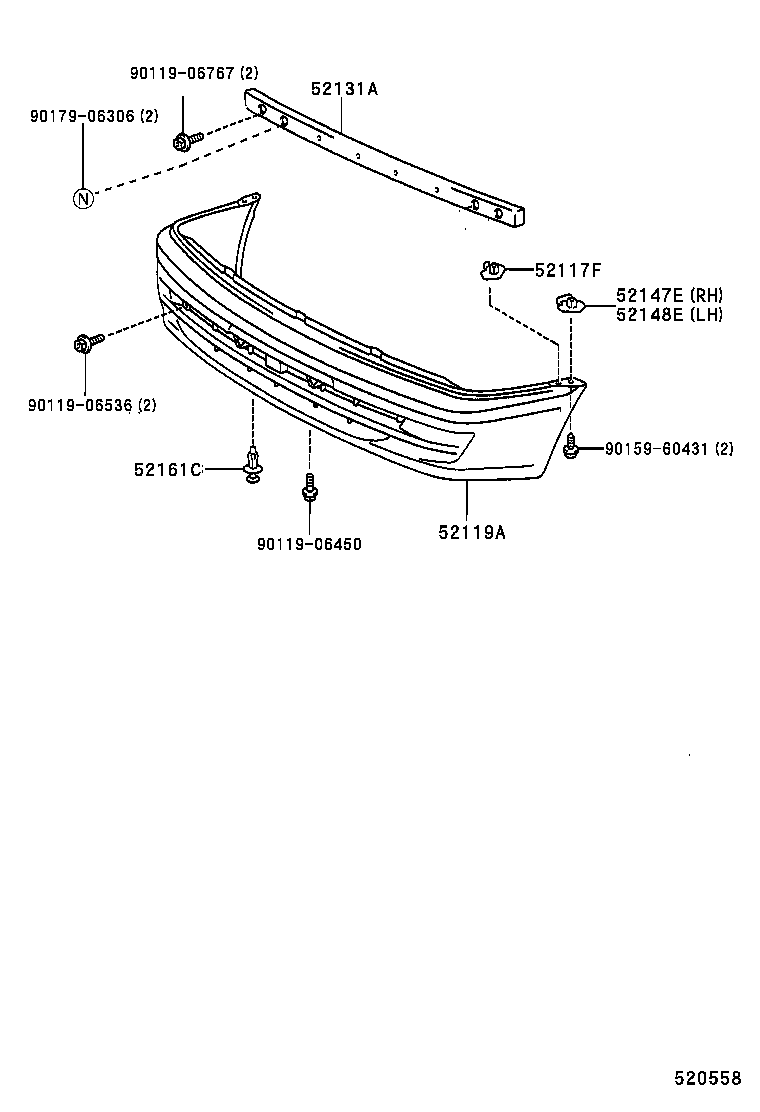

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52117F - SUPPORT, FRONT BUMPER, UPPER | ||||
| 52117-16020 |
AL50 |
2 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-0A960 |
AL50 |
1 | ||
| 52119-0A900 |
AL50..GEN |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-16100 |
AL50..GEN |
1 | ||
| 52147E - BRACKET, FRONT BUMPER MOUNTING, RH | ||||
| 52147-16080 |
AL50 |
1 | ||
| 52148E - BRACKET, FRONT BUMPER MOUNTING, LH | ||||
| 52147-16080 |
AL50 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AL50 |
2 | ||
| Common parts | ||||
| 90119-06450 | ||||
| 90119-06536 | ||||
| 90119-06767 | ||||
| 90159-60431 | ||||
| 90179-06306 | ||||
