AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )

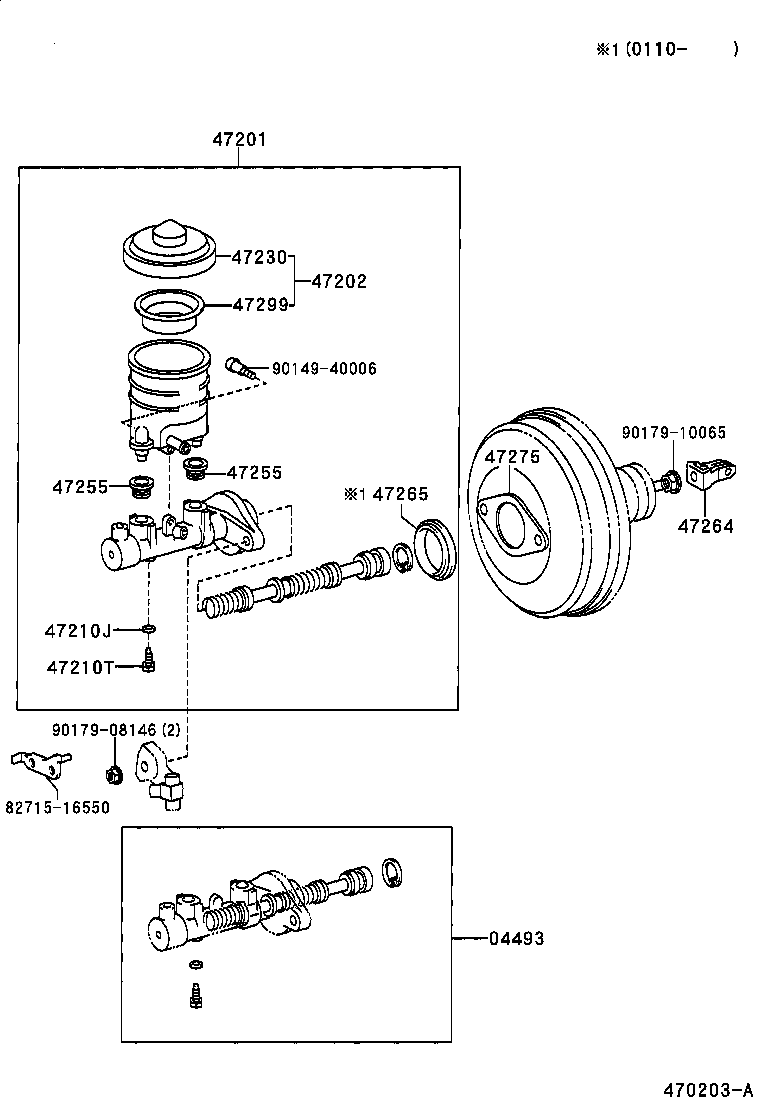

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-0A010 |
AL50..SLI,XLI;AL50..GLI..IDN |
1 | ||
| 04493-10190 |
AL50 |
1 | ||
| 04493-0A010 |
AL50 |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-0A021 |
AL50..4FC |
1 | ||
| 47201-0A021 |
AL50..4FC..IDN;AL50..4FC..(SLI,XLI) |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-0A020 |
AL50..4FC |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
AL50 |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
AL50 |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-16010 |
AL50 |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AL50 |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
AL50 |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-0A010 |
AL50 |
1 | ||
| 47264-20060 |
AL50 |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
AL50 |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-12020 |
AL50 |
1 | ||
| 47275-12020 |
AL50 |
1 | ||
| 47275-26010 |
AL50 |
1 | ||
| 47275-04010 |
AL50 |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-16010 |
AL50 |
1 | ||
| Common parts | ||||
| 82715-16550 | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
