AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612-9910)SLI,XLI ; (9612-9910)5F..GLI

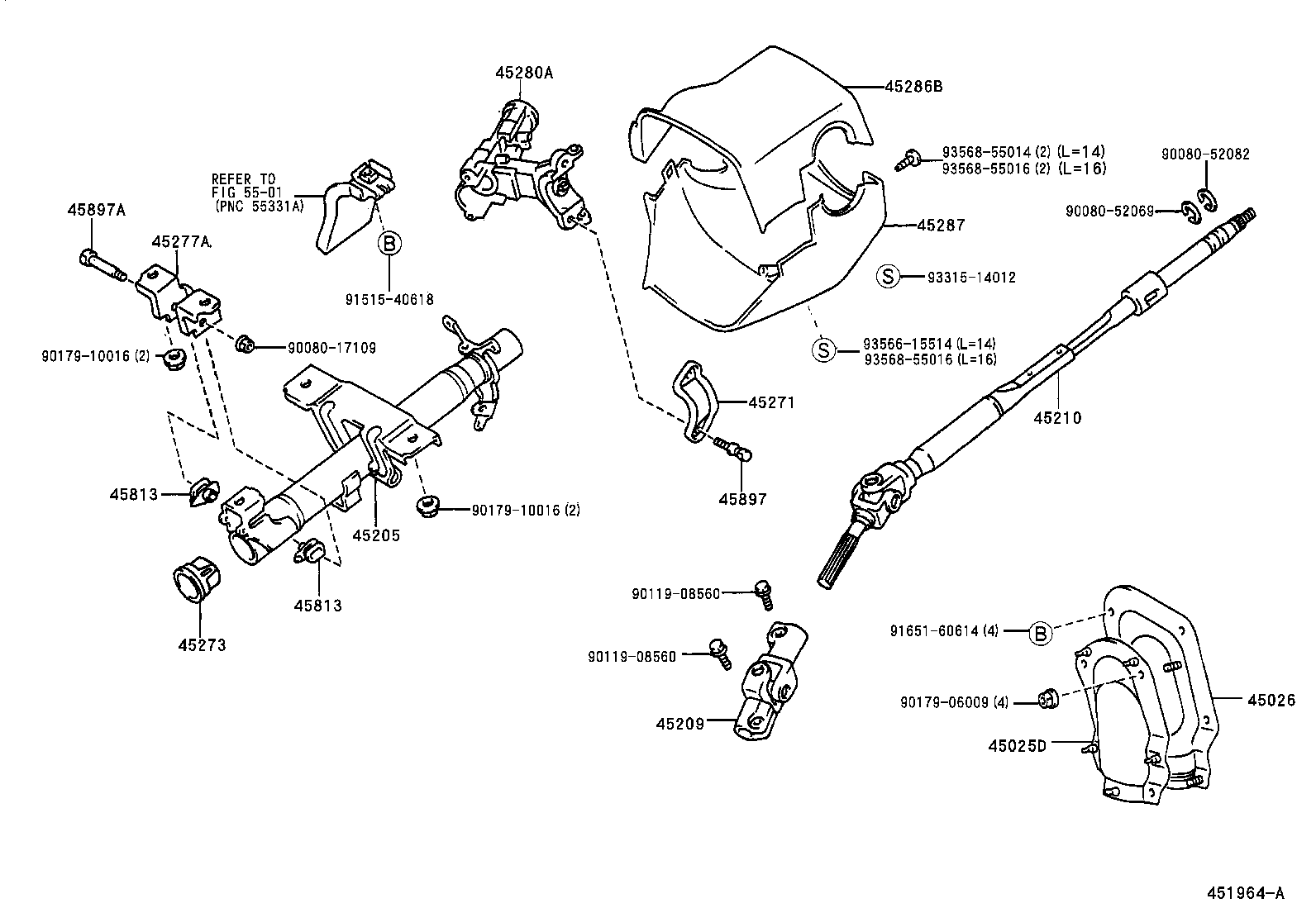

Click highlighted areas on diagram

diagram 45025D 45026 45205 45209 45210 45271 45273 45277A 45280A 45286B 45287 45813 45813 45897 45897A 5501 9008017109 9008052069 9008052082 9011908560 9011908560 9017906009 9017910016 9017910016 9151540618 9165160614 9331514012 9356615514
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-10080

AL50..SLI,XLI

 1
45025-16130

AL50..SLI

 1
45025-10080

AL50..SLI,XLI;AL50..5F..GLI

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-10030

AL50..SLI,XLI

 1
45026-10030

AL50..SLI,XLI;AL50..5F..GLI

 1
45026-16060

AL50..SLI

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-0A010

AL50

 1
45205-0A020

AL50

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12060

AL50..SLI,XLI;AL50..5F..GLI

 1
45209-12060

AL50..(SLI,XLI)..GEN

 1
45209-16060

AL50..IDN;AL50..SLI

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-0A010

AL50..SLI,XLI;AL50..5F..GLI

 1
45210-0A030

AL50..(SLI,XLI)..GEN

 1
45210-0A040

AL50..IDN;AL50..SLI

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

AL50

 1
45271-16020

AL50

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-0A010

AL50

 1
45277A - SUPPORT, TILT STEERING
45277-0A010

AL50

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-12321

AL50..SLI,XLI

 1
45280-16110

AL50

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0A010B0

AL50

SHADOW GRAY,TRIM1#

 1
45286-0A030B0

AL50

BLUISH GRAY,TRIM1#

 1
45286-0A030B0

AL50..SLI,XLI;AL50..GLI..IDN

BLUISH GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0A030B0

AL50..SLI,XLI;AL50..GLI..IDN

BLUISH GRAY,TRIM1#

 1
45287-0A030B0

AL50

BLUISH GRAY,TRIM1#

 1
45287-0A010B0

AL50

SHADOW GRAY,TRIM1#

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0A010

AL50

 2
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0A010

AL50

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

AL50

 2
45897A - BOLT, TILT STEERING PAWL SET
45897-0A010

AL50

 1
Common parts
90080-17109
90080-52069
90080-52082
90119-08560
90179-06009
90179-10016
91515-40618
91651-60614
93315-14012
93566-15514
Linked diagrams
5501

(9910- )GEN ; (0003- )IDN

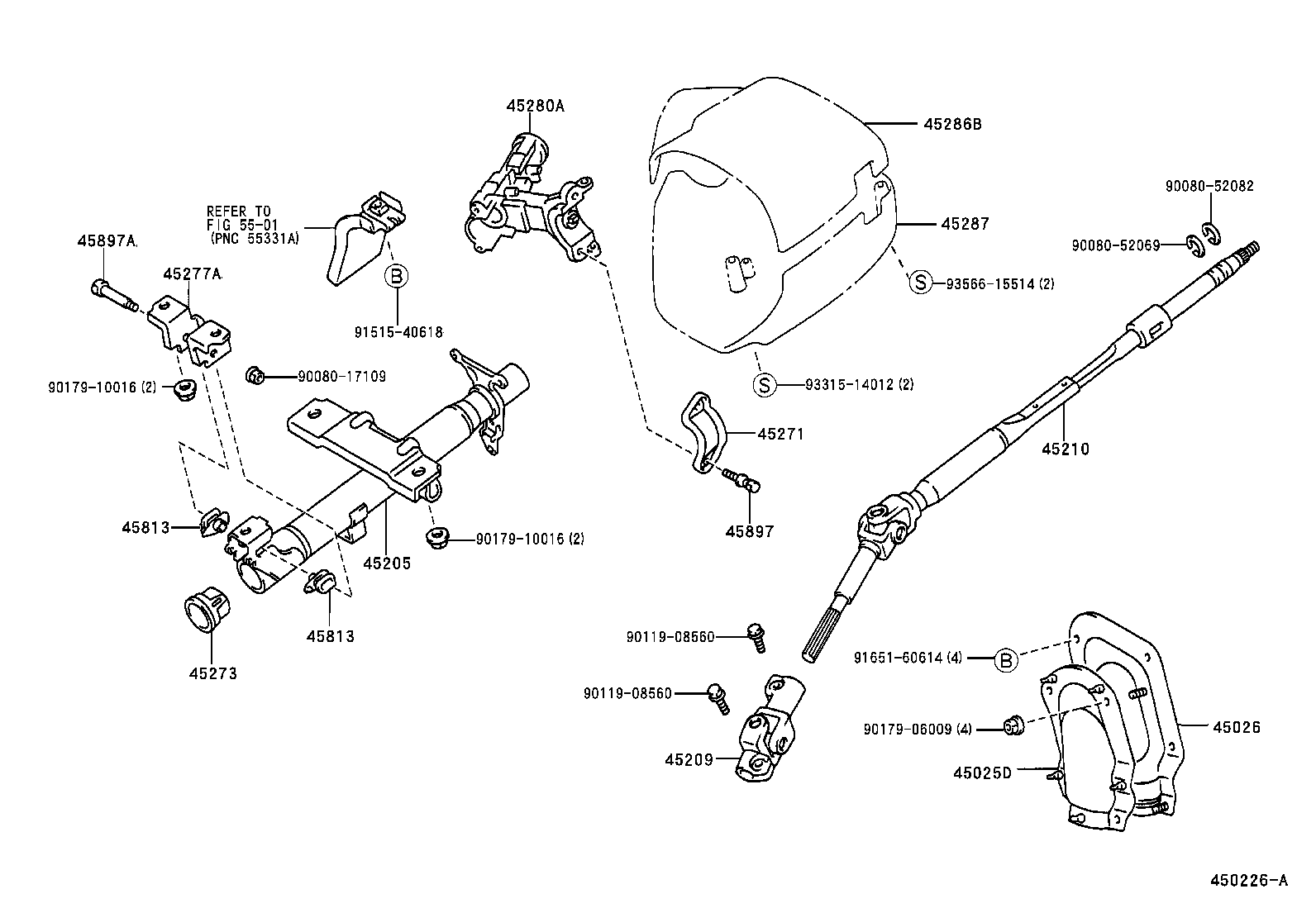

Click highlighted areas on diagram

W(POWER STEERING)

diagram 45025D 45026 45205 45209 45210 45271 45273 45277A 45280A 45286B 45287 45813 45813 45897 45897A 5501 9008017109 9008052069 9008052082 9011908560 9011908560 9017906009 9017910016 9017910016 9151540612 9151540618 9165160614 9331514012 9356615514 9356855014 9356855016 9356855016
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-10080

AL50..SLI,XLI

 1
45025-16130

AL50..SLI

 1
45025-10080

AL50..SLI,XLI;AL50..5F..GLI

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-10030

AL50..SLI,XLI

 1
45026-10030

AL50..SLI,XLI;AL50..5F..GLI

 1
45026-16060

AL50..SLI

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-0A010

AL50

 1
45205-0A020

AL50

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12060

AL50..SLI,XLI;AL50..5F..GLI

 1
45209-12060

AL50..(SLI,XLI)..GEN

 1
45209-16060

AL50..IDN;AL50..SLI

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-0A010

AL50..SLI,XLI;AL50..5F..GLI

 1
45210-0A030

AL50..(SLI,XLI)..GEN

 1
45210-0A040

AL50..IDN;AL50..SLI

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

AL50

 1
45271-16020

AL50

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-0A010

AL50

 1
45277A - SUPPORT, TILT STEERING
45277-0A010

AL50

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-12321

AL50..SLI,XLI

 1
45280-16110

AL50

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0A010B0

AL50

SHADOW GRAY,TRIM1#

 1
45286-0A030B0

AL50

BLUISH GRAY,TRIM1#

 1
45286-0A030B0

AL50..SLI,XLI;AL50..GLI..IDN

BLUISH GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0A030B0

AL50..SLI,XLI;AL50..GLI..IDN

BLUISH GRAY,TRIM1#

 1
45287-0A030B0

AL50

BLUISH GRAY,TRIM1#

 1
45287-0A010B0

AL50

SHADOW GRAY,TRIM1#

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0A010

AL50

 2
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0A010

AL50

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

AL50

 2
45897A - BOLT, TILT STEERING PAWL SET
45897-0A010

AL50

 1
Common parts
90080-17109
90080-52069
90080-52082
90119-08560
90179-06009
90179-10016
91515-40612
91515-40618
91651-60614
93315-14012
93566-15514
93568-55014
93568-55016
Linked diagrams
5501

(9910- )GEN

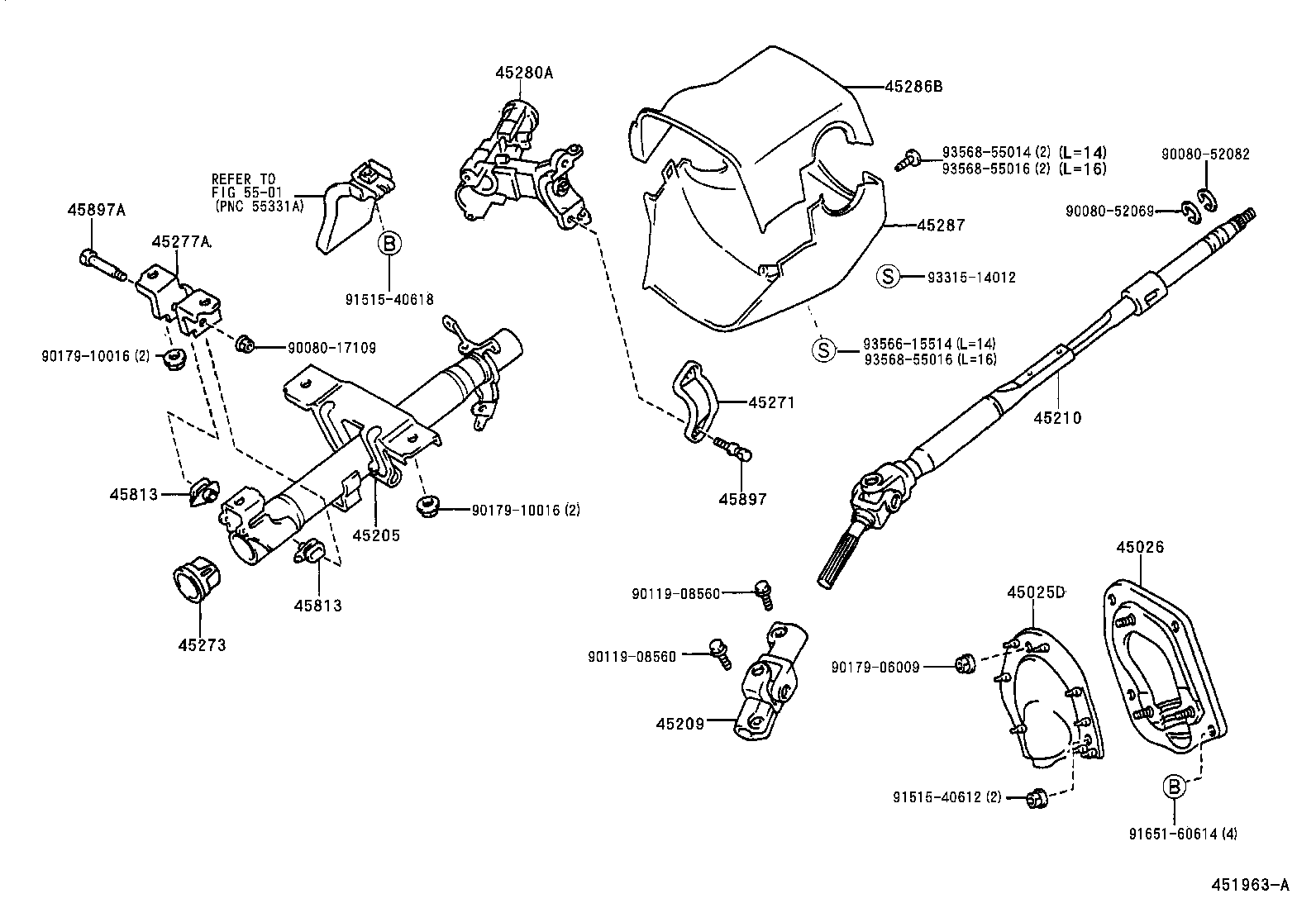

Click highlighted areas on diagram

diagram 45025D 45026 45205 45209 45210 45271 45273 45277A 45280A 45286B 45287 45813 45813 45897 45897A 5501 9008017109 9008052069 9008052082 9011908560 9011908560 9017906009 9017910016 9017910016 9151540618 9165160614 9331514012 9356615514 9356855014 9356855016 9356855016
Part # Description Qty Price
45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45025-10080

AL50..SLI,XLI

 1
45025-16130

AL50..SLI

 1
45025-10080

AL50..SLI,XLI;AL50..5F..GLI

 1
45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45026-10030

AL50..SLI,XLI

 1
45026-10030

AL50..SLI,XLI;AL50..5F..GLI

 1
45026-16060

AL50..SLI

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-0A010

AL50

 1
45205-0A020

AL50

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-12060

AL50..SLI,XLI;AL50..5F..GLI

 1
45209-12060

AL50..(SLI,XLI)..GEN

 1
45209-16060

AL50..IDN;AL50..SLI

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-0A010

AL50..SLI,XLI;AL50..5F..GLI

 1
45210-0A030

AL50..(SLI,XLI)..GEN

 1
45210-0A040

AL50..IDN;AL50..SLI

 1
45271 - CLAMP, STEERING COLUMN, UPPER
45271-16020

AL50

 1
45271-16020

AL50

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-0A010

AL50

 1
45277A - SUPPORT, TILT STEERING
45277-0A010

AL50

 1
45280A - BRACKET ASSY, STEERING COLUMN, UPPER
45280-12321

AL50..SLI,XLI

 1
45280-16110

AL50

 1
45286B - COVER, STEERING COLUMN, UPR
45286-0A010B0

AL50

SHADOW GRAY,TRIM1#

 1
45286-0A030B0

AL50

BLUISH GRAY,TRIM1#

 1
45286-0A030B0

AL50..SLI,XLI;AL50..GLI..IDN

BLUISH GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-0A030B0

AL50..SLI,XLI;AL50..GLI..IDN

BLUISH GRAY,TRIM1#

 1
45287-0A030B0

AL50

BLUISH GRAY,TRIM1#

 1
45287-0A010B0

AL50

SHADOW GRAY,TRIM1#

 1
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0A010

AL50

 2
45813 - COLLAR, TILT STEERING SUPPORT, NO.1
45813-0A010

AL50

 2
45897 - BOLT, STEERING LOCK SET
45897-12020

AL50

 2
45897A - BOLT, TILT STEERING PAWL SET
45897-0A010

AL50

 1
Common parts
90080-17109
90080-52069
90080-52082
90119-08560
90179-06009
90179-10016
91515-40618
91651-60614
93315-14012
93566-15514
93568-55014
93568-55016
Linked diagrams
5501
