AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612-0307)ATM

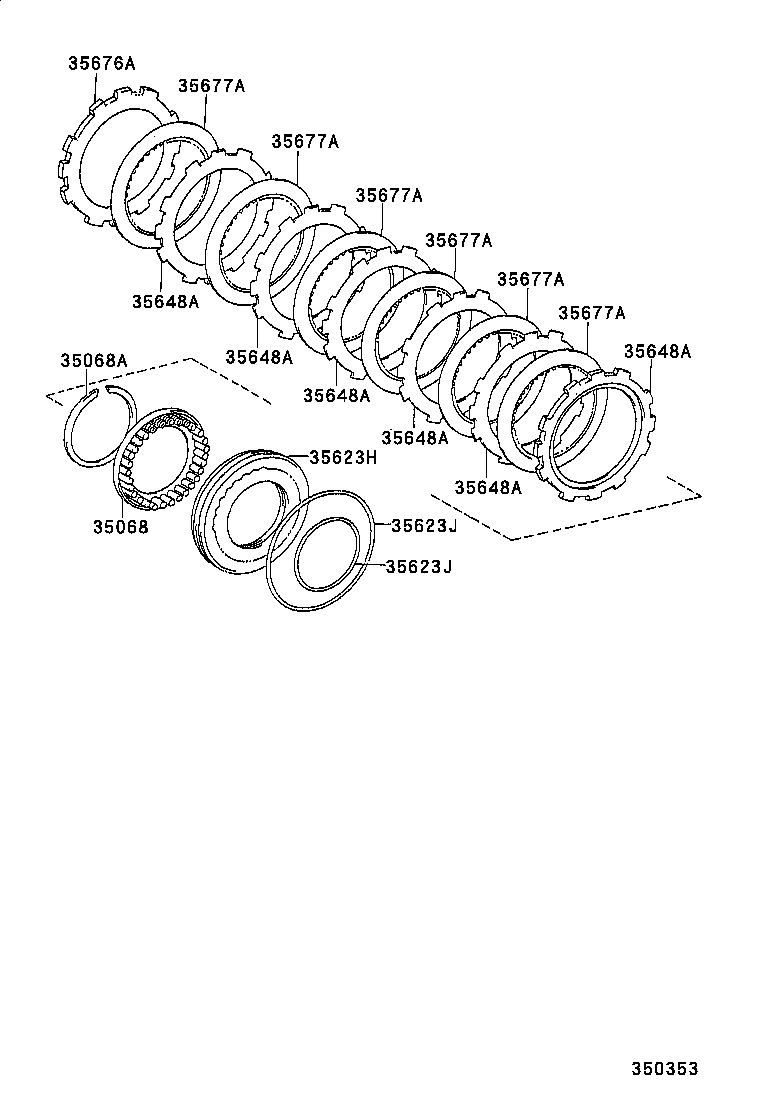

Click highlighted areas on diagram

A131L,A240L

diagram 35068 35068A 35623H 35623J 35623J 35648A 35648A 35648A 35648A 35648A 35648A 35676A 35677A 35677A 35677A 35677A 35677A 35677A
Part # Description Qty Price
35068 - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-20010

AL50..ATM

 1
35068A - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-90001

AL50..ATM

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99022

AL50..ATM

OUTER

 1
90301-94001

AL50..ATM

INNER

 1
35623J - RING, O (FOR 1ST & REVERSE BRAKE)
90301-99022

AL50..ATM

OUTER

 1
90301-94001

AL50..ATM

INNER

 1
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AL50..ATM

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AL50..ATM

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AL50..ATM

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AL50..ATM

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AL50..ATM

 6
35648A - PLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)
35648-32020

AL50..ATM

 6
35676A - FLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)
35676-12030

AL50..ATM

T=3.5

 1
