AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612-0307)ATM

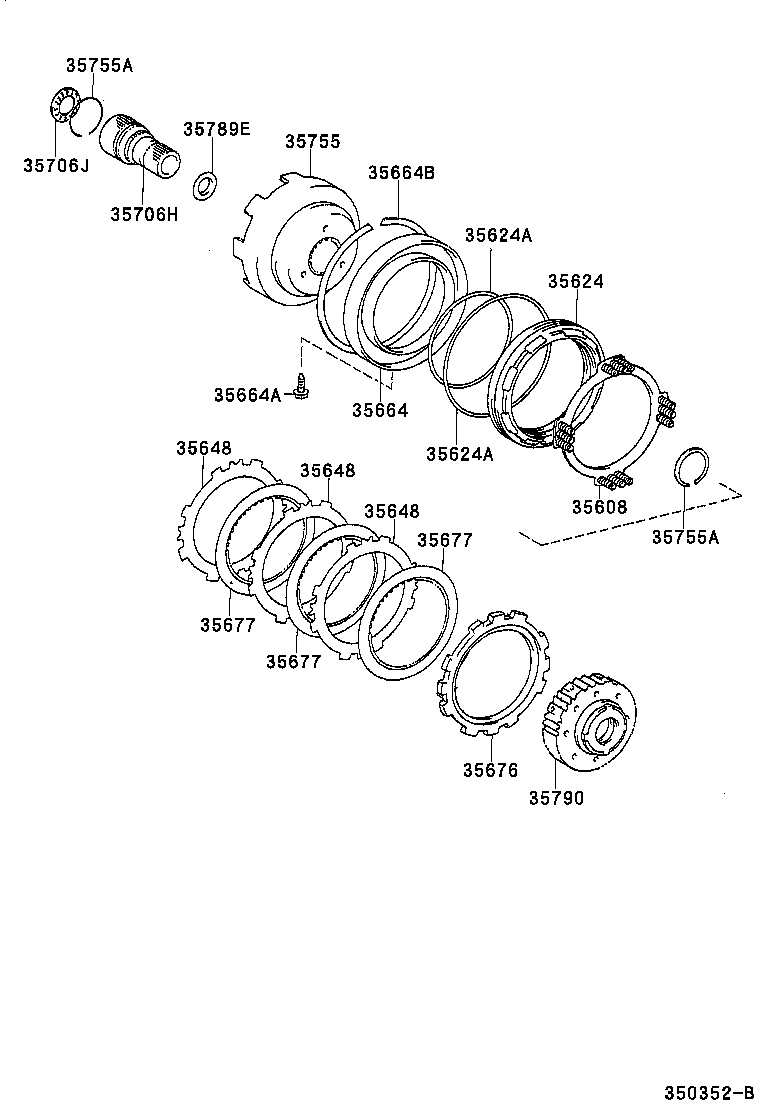

Click highlighted areas on diagram
A131L,A240L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99023 |
AL50..ATM OUTER |
1 | ||
| 90301-99021 |
AL50..ATM INNER |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99023 |
AL50..ATM OUTER |
1 | ||
| 90301-99021 |
AL50..ATM INNER |
1 | ||
| 35664 - CYLINDER, 2ND BRAKE | ||||
| 35664-32010 |
AL50..ATM |
1 | ||
| 35664A - BOLT (FOR 2ND BRAKE CYLINDER) | ||||
| 90109-06060 |
AL50..ATM |
1 | ||
| 35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER) | ||||
| 90521-99013 |
AL50..ATM |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-12030 |
AL50..ATM T=3.5 |
1 | ||
| 35706H - GEAR SUB-ASSY, PLANETARY SUN | ||||
| 35706-12010 |
AL50..ATM |
1 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-30006 |
AL50..ATM |
1 | ||
| 35755 - DRUM, SUN GEAR INPUT | ||||
| 35755-32020 |
AL50..ATM |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-47003 |
AL50..ATM T=2.3,ID=47.1 |
1 | ||
| 90520-44002 |
AL50..ATM T=1.2,ID=44.0 |
1 | ||
| 35755A - RING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM) | ||||
| 90520-47003 |
AL50..ATM T=2.3,ID=47.1 |
1 | ||
| 90520-44002 |
AL50..ATM T=1.2,ID=44.0 |
1 | ||
| 35789E - RACE, THRUST BEARING (FOR PLANETARY SUN GEAR) | ||||
| 35789-22010 |
AL50..4FC..GEN |
1 | ||
| 35789-22010 |
AL50..ATM |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-44010 |
AL50..4FC |
1 | ||
| 35790-32050 |
AL50..ATM |
1 | ||
