AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9810- )4FC

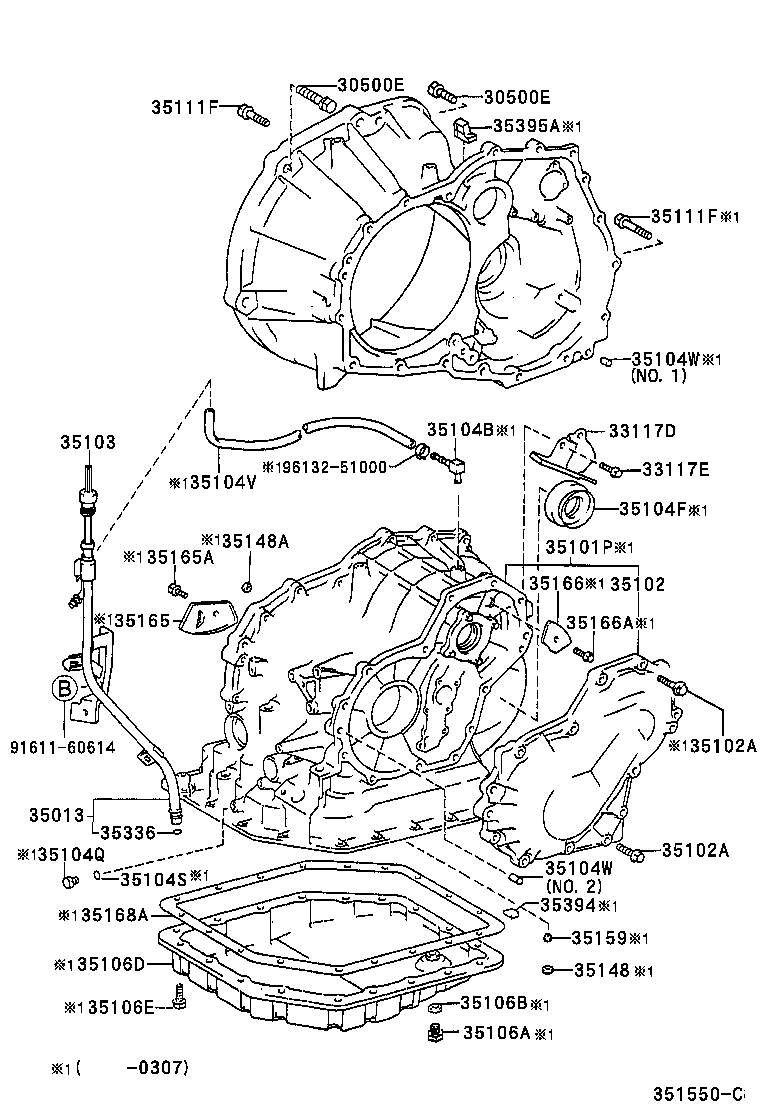

Click highlighted areas on diagram

A240L

diagram 30500E 30500E 33117D 33117E 35013 35101P 35102 35102A 35102A 35103 35104B 35104F 35104Q 35104S 35104V 35104W 35104W 35106A 35106B 35106D 35106E 35111F 35111F 35148 35148A 35159 35165 35165A 35166 35166A 35168A 35336 35394 35395A 9161160614 9613251000
Part # Description Qty Price
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91619-61245

AL50..ATM

*12-1.25PX45-30

 2
91612-41025

AL50..ATM

*10-1.25PX25-25

 3
90119-12168

AL50..ATM

*12-1.25PX55-30

 1
90105-10077

AL50..ATM

*10-1.25PX43-26

 1
30500E - BOLT(FOR TRANSAXLE & ENGINE SETTING)
91619-61245

AL50..ATM

*12-1.25PX45-30

 2
91612-41025

AL50..ATM

*10-1.25PX25-25

 3
90119-12168

AL50..ATM

*12-1.25PX55-30

 1
90105-10077

AL50..ATM

*10-1.25PX43-26

 1
33117D - PROTECTOR, AUTOMATIC TRANSMISSION CASE
33117-12030

AL50..4FC

 1
33117E - BOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)
90105-08040

AL50..ATM

 2
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-16130

AL50..4FC

 1
35013-16120

AL50..4FC

 1
35102 - COVER SUB-ASSY, TRANSAXLE REAR
35102-16031

AL50..4FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-16120

AL50..4FC

 1
35104F - SEAL, OIL (FOR TRANSAXLE CASE)
90311-34013

AL50..4FC

 1
35106D - PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106-12110

AL50..4FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AL50..ATM

 1
35168A - GASKET, AUTOMATIC TRANSAXLE OIL PAN
35168-12020

AL50..4FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AL50..ATM

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AL50..ATM

 2
Common parts
91611-60614
96132-51000
