AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

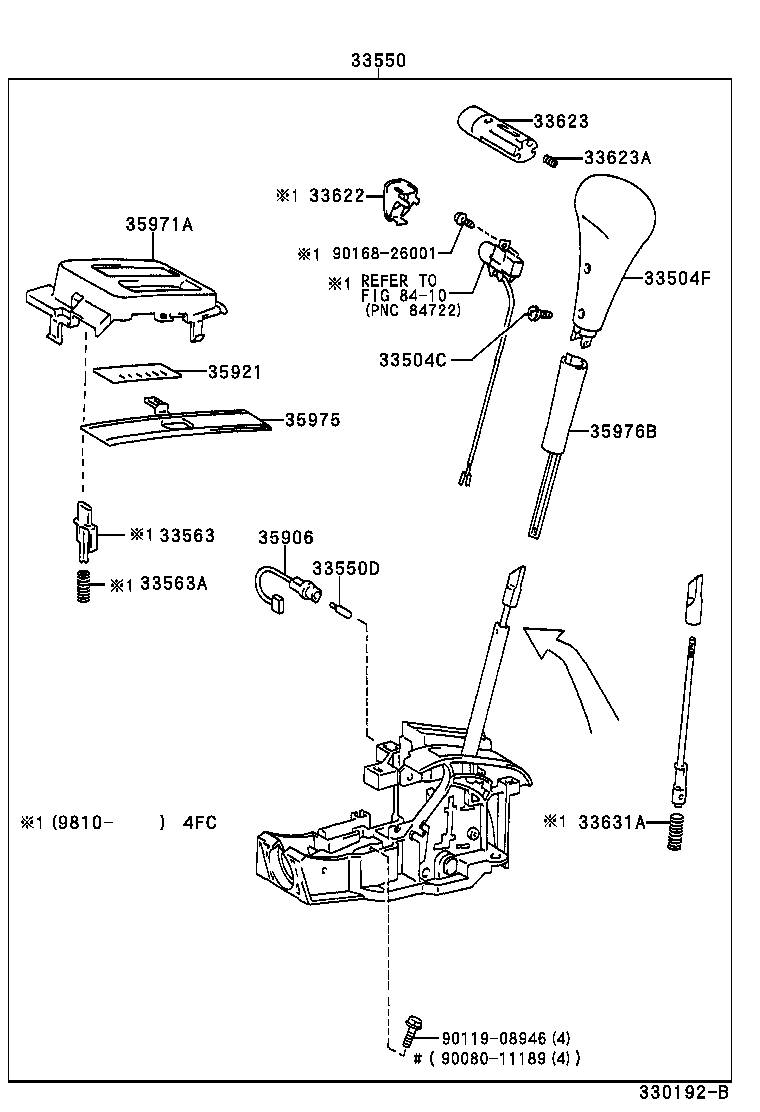

ILLUST NO. 1 OF 2(9612- )ATM

Click highlighted areas on diagram

diagram 33504C 33504F 33550 33550D 33563 33563A 33622 33623 33623A 33631A 35906 35921 35971A 35975 35976B 8410 9008011189 9011908946 9016826001
Part # Description Qty Price
33504C - SCREW (FOR SHIFT LEVER KNOB SETTING)
90159-40134

AL50..ATM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33542-16071B0

AL50..4FC

BLUISH GRAY,TRIM1#

 1
33542-16071B0

AL50..4FC..IDN;AL50..4FC..(SLI,XLI)

BLUISH GRAY,TRIM1#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-16441B1

AL50..4FC

BLUISH GRAY,TRIM1#

 1
33550-16441B1

AL50..4FC..IDN;AL50..4FC..(SLI,XLI)

BLUISH GRAY,TRIM1#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11018

AL50..ATM

12V 1.2W W/O SOCKET

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-16060

AL50..4FC

 1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
90501-07103

AL50..4FC

 1
33622 - COVER, SHIFT LEVER KNOB, NO.1
33622-16050B0

AL50..4FC..GEN

BLUISH GRAY,TRIM1#

 1
33622-16050B0

AL50..4FC

BLUISH GRAY,TRIM1#

 1
33623 - BUTTON, SHIFT LEVER KNOB
33623-16081B0

AL50..4FC

BLUISH GRAY,TRIM1#

 1
33623-16081B0

AL50..4FC..IDN;AL50..4FC..(SLI,XLI)

BLUISH GRAY,TRIM1#

 1
33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
90501-05040

AL50..ATM

 1
33631A - SPRING, COMPRESSION (FOR DETENT ROD)
90501-08119

AL50..4FC

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-16070

AL50..4FC

 1
35921 - PLATE, CONTROL POSITION INDICATOR
35921-16140

AL50..4FC

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-16130

AL50..4FC

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-16090

AL50..ATM

 1
35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
35976-16050B0

AL50..4FC

BLUISH GRAY,TRIM1#

 1
35976-16050B0

AL50..4FC..IDN;AL50..4FC..(SLI,XLI)

BLUISH GRAY,TRIM1#

 1
Common parts
90080-11189
90119-08946
90168-26001
Linked diagrams
8410

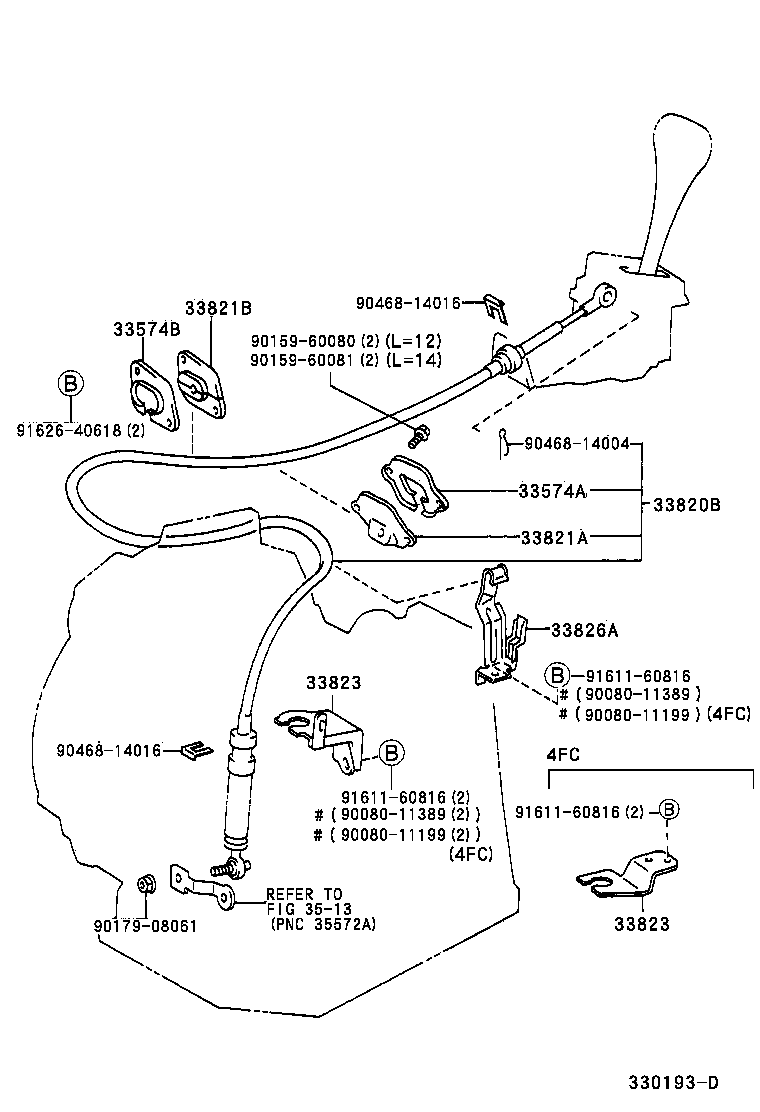

ILLUST NO. 2 OF 2(9612- )ATM

Click highlighted areas on diagram

diagram 33574A 33574B 33820B 33821A 33821B 33823 33823 33826A 3513 9008011199 9008011199 9008011389 9008011389 9015960080 9015960081 9017908061 9046814004 9046814016 9046814016 9161160816 9161160816 9161160816 9162640618
Part # Description Qty Price
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-10020

AL50..ATM

 1
33574B - RETAINER, SHIFT CABLE GROMMET, NO.2
33574-10030

AL50

 1
33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE)
90480-01667

AL50..ATM

 1
33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE)
90480-01663

AL50..ATM

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-16060

AL50..4FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-16060

AL50..4FC

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-16050

AL50..4FC

 1
Common parts
90080-11199
90080-11389
90159-60080
90159-60081
90179-08061
90468-14004
90468-14016
91611-60816
91626-40618
Linked diagrams
3513
