AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )5AFE..ATM

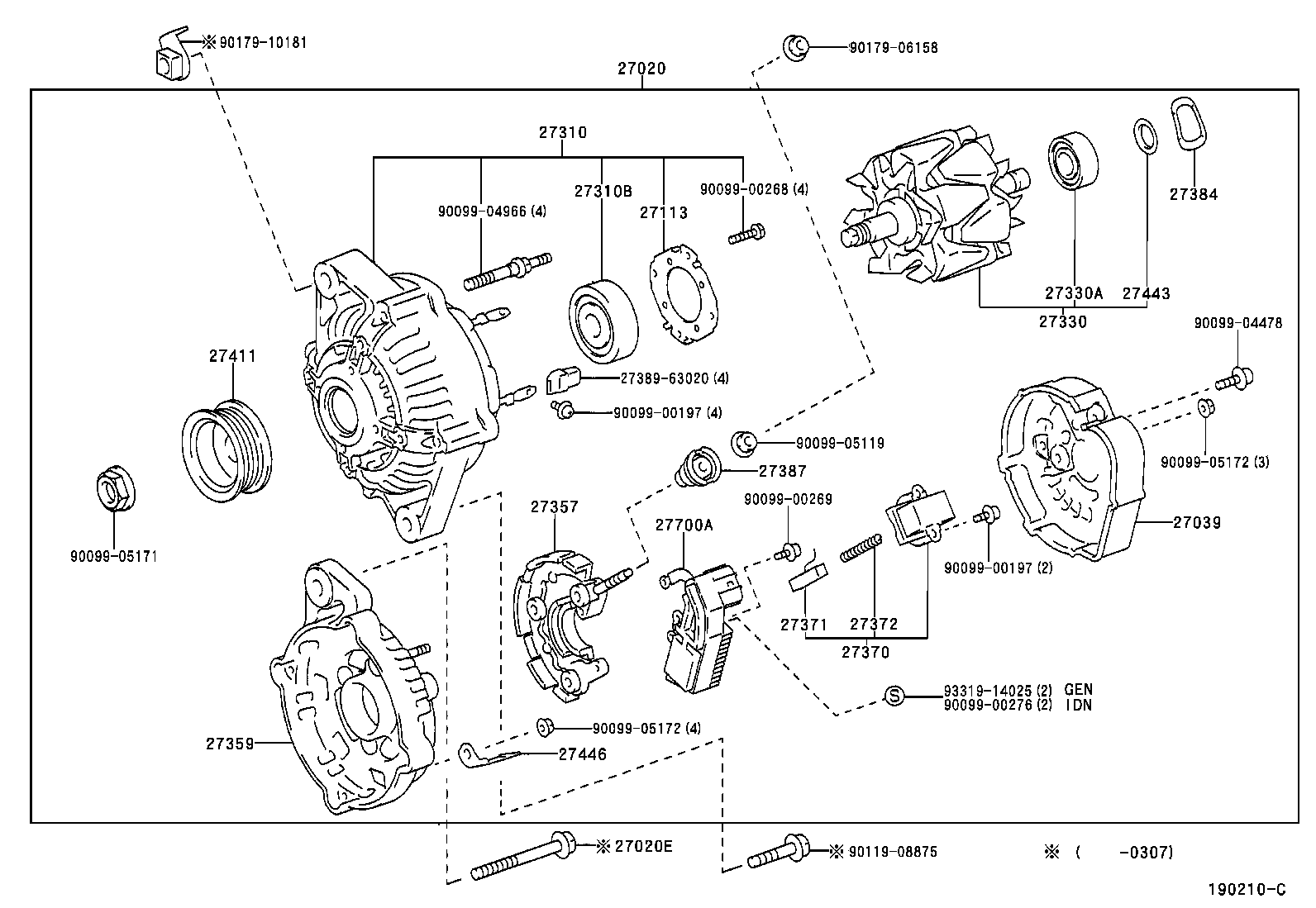

Click highlighted areas on diagram
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-02090 |
5AFE..AL50..ATM..GEN 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10336 |
5AFE..AL50 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-16380 |
5AFE..AL50..ATM |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
5AFE..AL50..ATM..GEN |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-02090 |
5AFE..AL50..ATM..GEN |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90068-10005 |
5AFE..AL50..ATM..GEN |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-02090 |
5AFE..AL50..ATM |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90068-10001 |
5AFE..AL50..ATM |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-16380 |
5AFE..AL50..ATM |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-02090 |
5AFE..AL50..ATM..GEN |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
5AFE..AL50..ATM;5AFE..AL50..5F..GEN |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
5AFE..AL50..ATM;5AFE..AL50..5F..GEN |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
5AFE..AL50..ATM;5AFE..AL50..5F..GEN |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
5AFE..AL50..ATM |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70171 |
5AFE..AL50..4FC |
1 | ||
| 27387-70170 |
5AFE..AL50..ATM |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16180 |
5AFE..AL50..ATM |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
5AFE..AL50..ATM;5AFE..AL50..5F..GEN |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-02090 |
5AFE..AL50..GEN |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
5AFE..AL50..ATM |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
5AFE..AL50..ATM |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74040 |
5AFE..AL50..ATM |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90119-08875 | ||||
| 90179-06158 | ||||
| 90179-10181 | ||||
| 93319-14025 | ||||
