AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

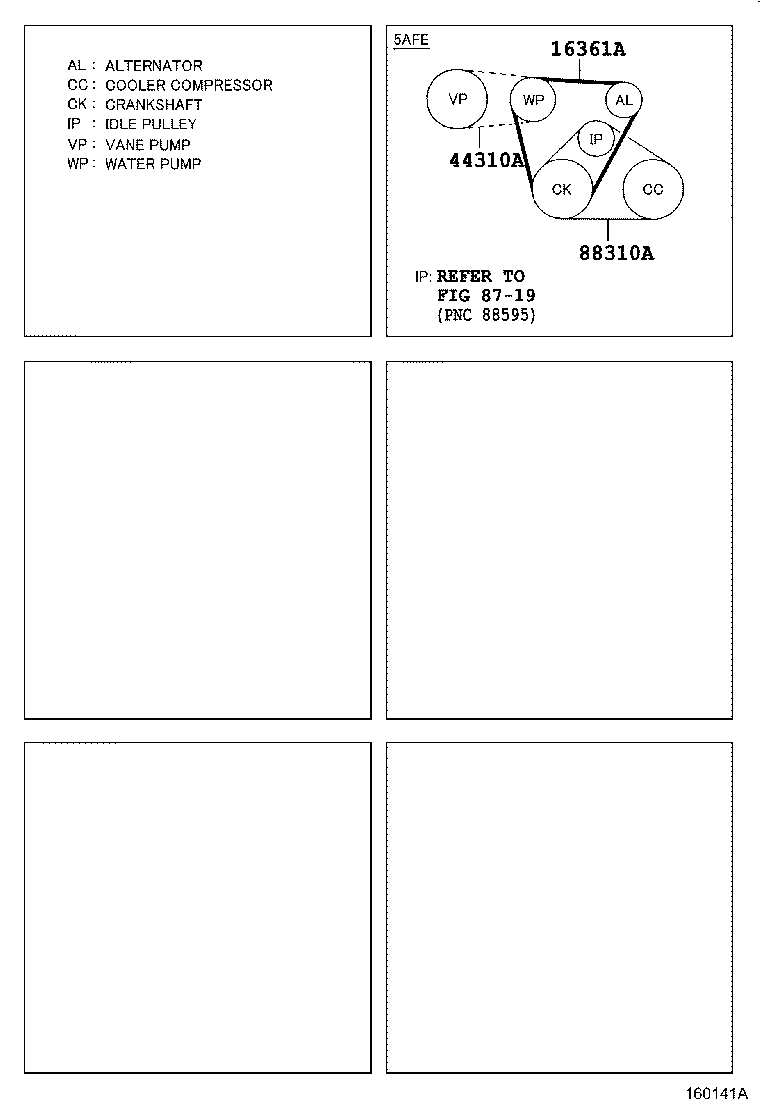

Click highlighted areas on diagram

diagram 16361A 44310A 8719 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90080-91163

5AFE..AL50..4FC

L=970,(L),MARK 90080-91163

 1
90080-91120

5AFE..AL50..4FC

(L),MARK 90080-91120

 1
99365-20970

5AFE..AL50..4FC..GEN

L=970,(J)

 1
44310A - BELT, V(FOR VANE PUMP)
99363-90630

AL50..5F..XLI..GEN;AL50..(GLI,SLI)..GEN

L=630

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
90080-91123

AL50..GEN

L=850,(L)

 1
99364-20850

AL50..GEN

L=850,(J)

 1
Linked diagrams
8719
