AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

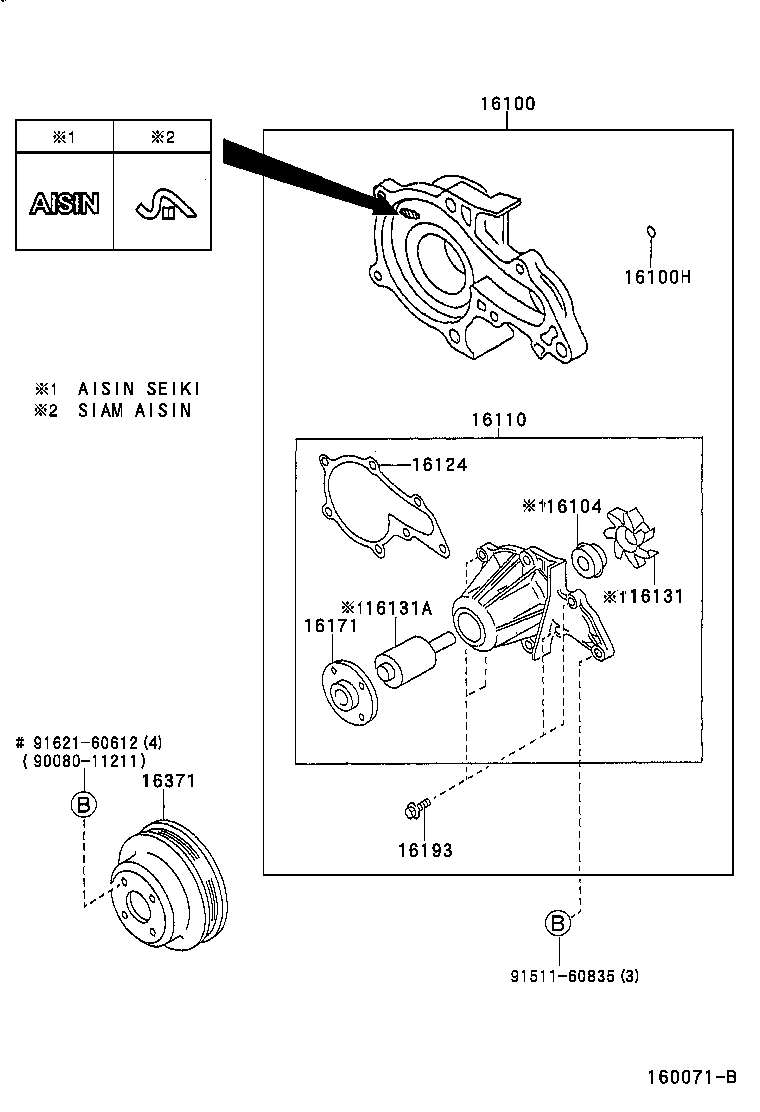

Click highlighted areas on diagram

diagram 16100 16100H 16104 16110 16124 16131 16131A 16171 16193 16371 9008011211 9151160835 9162160612
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-09110

5AFE..AL50..GEN

SIAM AISIN

 1
16100-19295

5AFE..AL50

AISIN SEIKI

 1
16100-19295

5AFE..AL50

 1
16100H - RING, O(FOR WATER PUMP)
96761-24035

5AFE..AL50

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-19205

5AFE..AL50

 1
16124 - GASKET, WATER PUMP COVER
16124-15110

5AFE..AL50

 1
16131 - ROTOR, WATER PUMP
16131-16090

5AFE..AL50

 1
16131A - BEARING, WATER PUMP
90029-36846

5AFE..AL50

 1
16171 - SEAT, WATER PUMP PULLEY
16171-10012

5AFE..AL50

 1
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16193-15011

5AFE..AL50

 4
16371 - PULLEY, FAN
16371-15071

5AFE..AL50..SLI

 1
Common parts
90080-11211
91511-60835
91621-60612
