AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

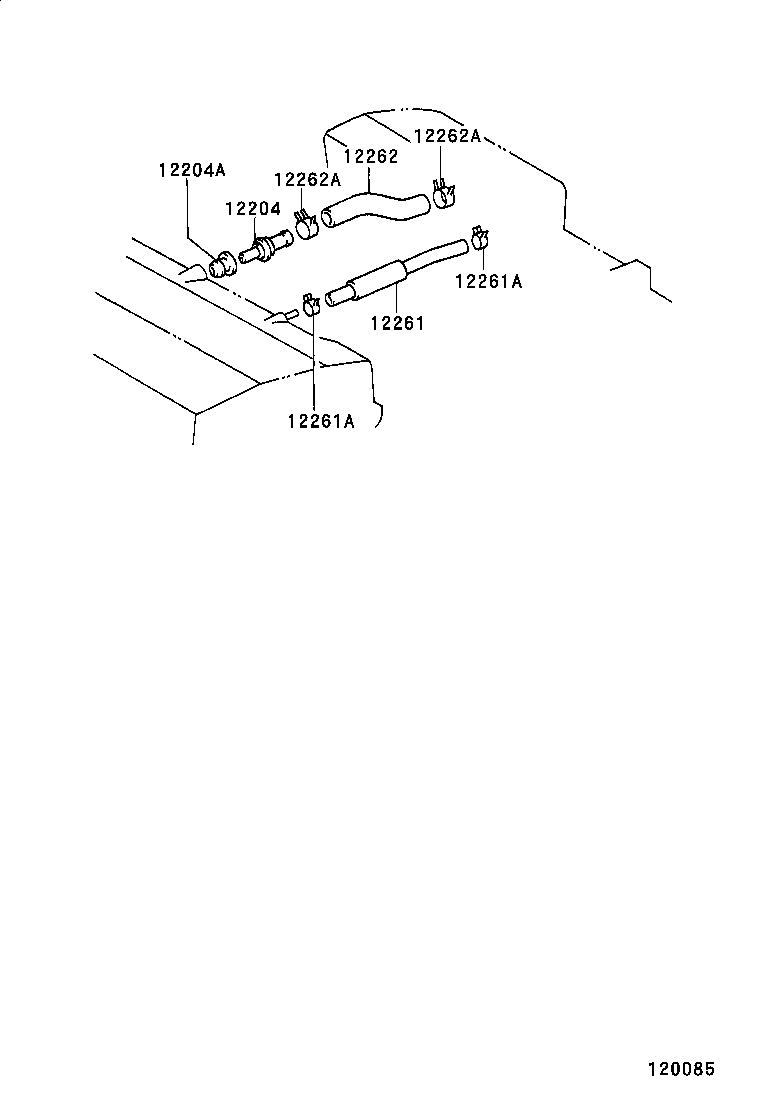

Click highlighted areas on diagram

diagram 12204 12204A 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-15050

5AFE..AL50

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

5AFE..AL50

 1
12261 - HOSE, VENTILATION
90080-91107

5AFE..AL50

(L)

 1
90910-05222

5AFE..AL50

(J)

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-10099

5AFE..AL50

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-10099

5AFE..AL50

 2
12262 - HOSE, VENTILATION, NO.2
90080-44068

5AFE..AL50

(L)

 1
90445-15068

5AFE..AL50

(J)

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14017

5AFE..AL50

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-14017

5AFE..AL50

 2
