AL50R-AEPFK (1998)
Toyota Soluna
Production
Oct 1998
-
Dec 2002
Engine
5AFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9612- )

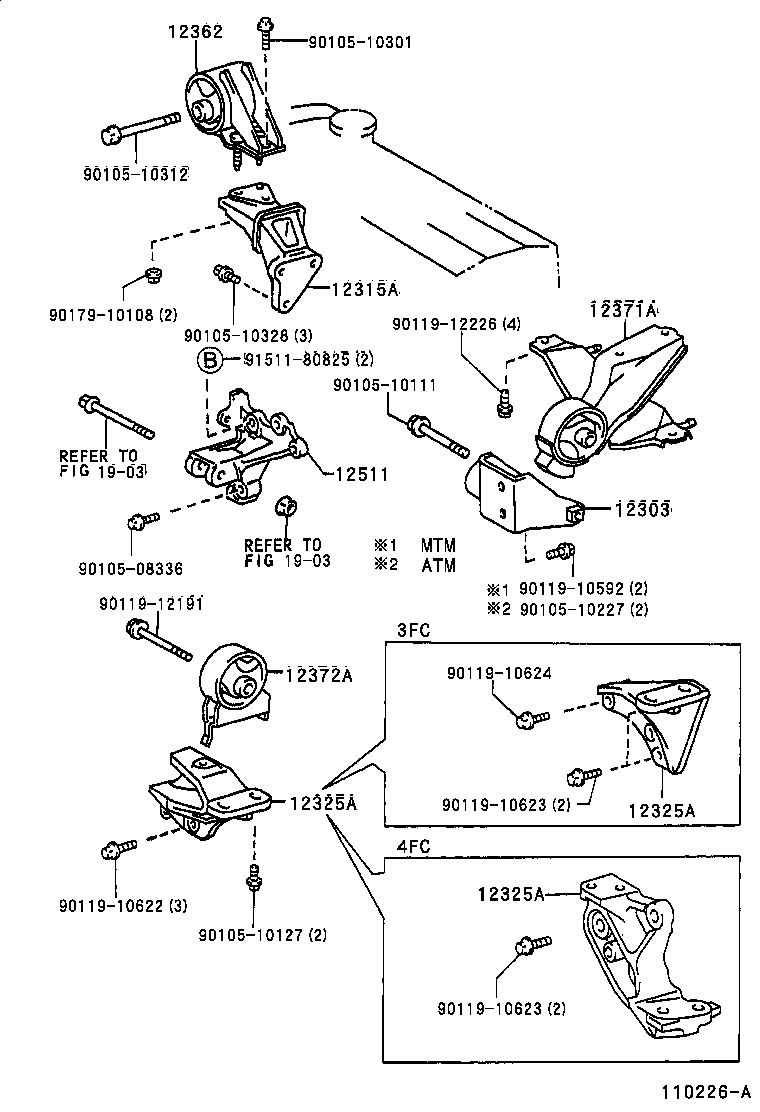

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12303 - BRACKET SUB-ASSY, ENGINE MOUNTING, REAR | ||||
| 12303-02050 |
5AFE..AL50..4FC |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-15081 |
5AFE..AL50 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-15120 |
5AFE..AL50..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-15120 |
5AFE..AL50..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-15120 |
5AFE..AL50..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-02060 |
5AFE..AL50..4FC |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-02120 |
5AFE..AL50..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-02150 |
5AFE..AL50..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-15060 |
5AFE..AL50 |
1 | ||
| Common parts | ||||
| 90105-08336 | ||||
| 90105-10111 | ||||
| 90105-10127 | ||||
| 90105-10227 | ||||
| 90105-10301 | ||||
| 90105-10312 | ||||
| 90105-10328 | ||||
| 90119-10592 | ||||
| 90119-10622 | ||||
| 90119-10623 | ||||
| 90119-10624 | ||||
| 90119-12191 | ||||
| 90119-12226 | ||||
| 90179-10108 | ||||
| 91511-80825 | ||||
| Linked diagrams | ||||
| 1903 | ||||
