AL50R-AEPFK (1998)

Toyota Soluna

Production Oct 1998 - Dec 2002
Engine 5AFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )

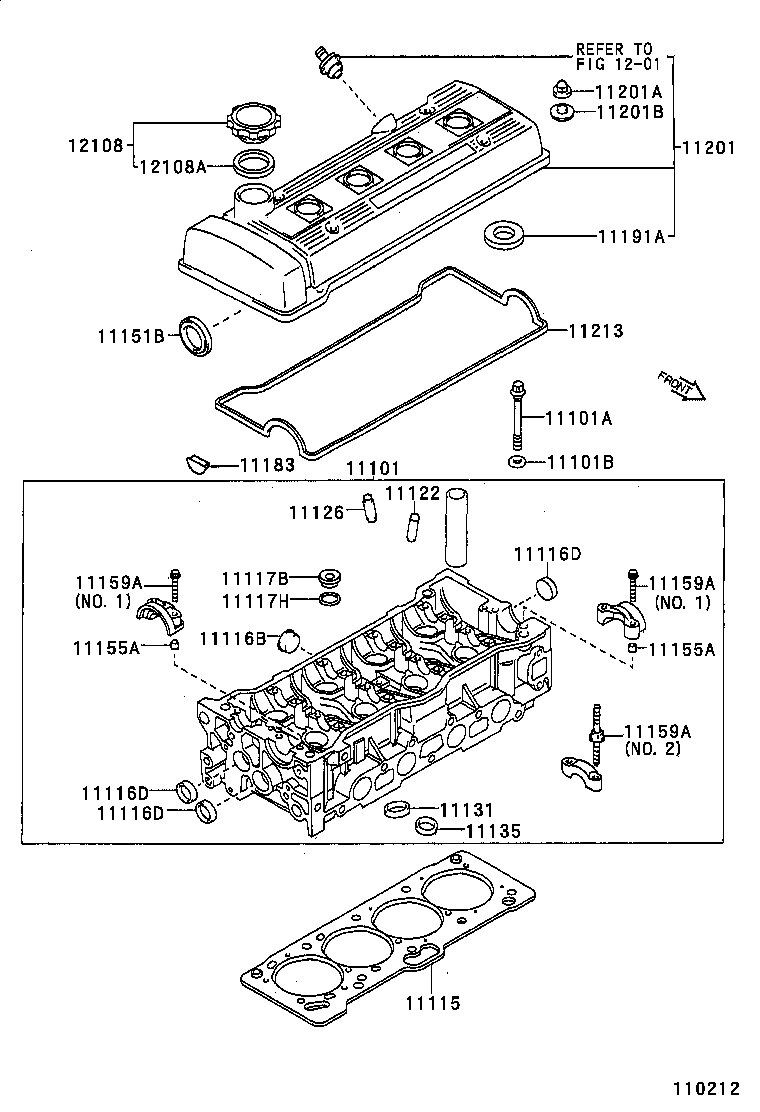

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11116B 11116D 11116D 11116D 11117B 11117H 11122 11126 11131 11135 11151B 11155A 11155A 11159A 11159A 11159A 11183 11191A 11201 11201A 11201B 11213 1201 12108 12108A
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-19375

5AFE..AL50

 1
11101-19375

5AFE..AL50..GEN

(J)

 1
11101-09120

5AFE..AL50..GEN

(L)

 1
11101-09120

5AFE..AL50

(L)

 1
11101-19375

5AFE..AL50

(J)

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90109-10058

5AFE..AL50

*10-1.25PX90-22

 5
90109-10059

5AFE..AL50

*10-1.25PX108-22

 5
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344

5AFE..AL50

 10
11115 - GASKET, CYLINDER HEAD
11115-02040

5AFE..AL50

(L)

 1
11115-15090

5AFE..AL50

T=1.25,(J)

 1
11116B - PLUG, TIGHT, NO.2
96411-42500

5AFE..AL50

 1
11116D - PLUG, TIGHT, NO.4
96411-42800

5AFE..AL50

 3
11116D - PLUG, TIGHT, NO.4
96411-42800

5AFE..AL50

 3
11116D - PLUG, TIGHT, NO.4
96411-42800

5AFE..AL50

 3
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002

5AFE..AL50

 3
11117H - GASKET(FOR WATER HOLE)
90430-20004

5AFE..AL50

 3
11122 - BUSH, INTAKE VALVE GUIDE
11123-15030

5AFE..AL50

O/S 0.05

 8
11122-15030

5AFE..AL50

STD

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-15030

5AFE..AL50

STD

 8
11123-15030

5AFE..AL50

O/S 0.05

 8
11131 - SEAT, INTAKE VALVE
11132-16040

5AFE..AL50

O/S 0.03

 8
11131-16040

5AFE..AL50

STD

 8
11135 - SEAT, EXHAUST VALVE
11136-15030

5AFE..AL50

O/S 0.03

 8
11135-15030

5AFE..AL50

STD

 8
11151B - SEAL, OIL(FOR CAMSHAFT SETTING)
90311-35013

5AFE..AL50

 1
11155A - PIN, RING W/HEAD
90253-09001

5AFE..AL50

 6
11155A - PIN, RING W/HEAD
90253-09001

5AFE..AL50

 6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

5AFE..AL50

NO.1

 18
90109-06222

5AFE..AL50

NO.2

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

5AFE..AL50

NO.1

 18
90109-06222

5AFE..AL50

NO.2

 4
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90109-06080

5AFE..AL50

NO.1

 18
90109-06222

5AFE..AL50

NO.2

 4
11183 - PLUG, SEMICIRCULAR
11183-15020

5AFE..AL50

 1
11191A - GASKET(FOR SPARK PLUG TUBE)
11193-15010

5AFE..AL50

 4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11210-15071

5AFE..AL50

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90176-06028

5AFE..AL50

 4
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06010

5AFE..AL50

 4
11213 - GASKET, CYLINDER HEAD COVER
11213-15070

5AFE..AL50

(J)

 1
11213-02050

5AFE..AL50

(L)

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

5AFE..AL50

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

5AFE..AL50

(J)

 1
90080-43023

5AFE..AL50

(L)

 1
