AL50R-AEMDK (1996)

Toyota Soluna

Production Dec 1996 - Dec 2002
Engine 5AFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9612- )5AFE..5F

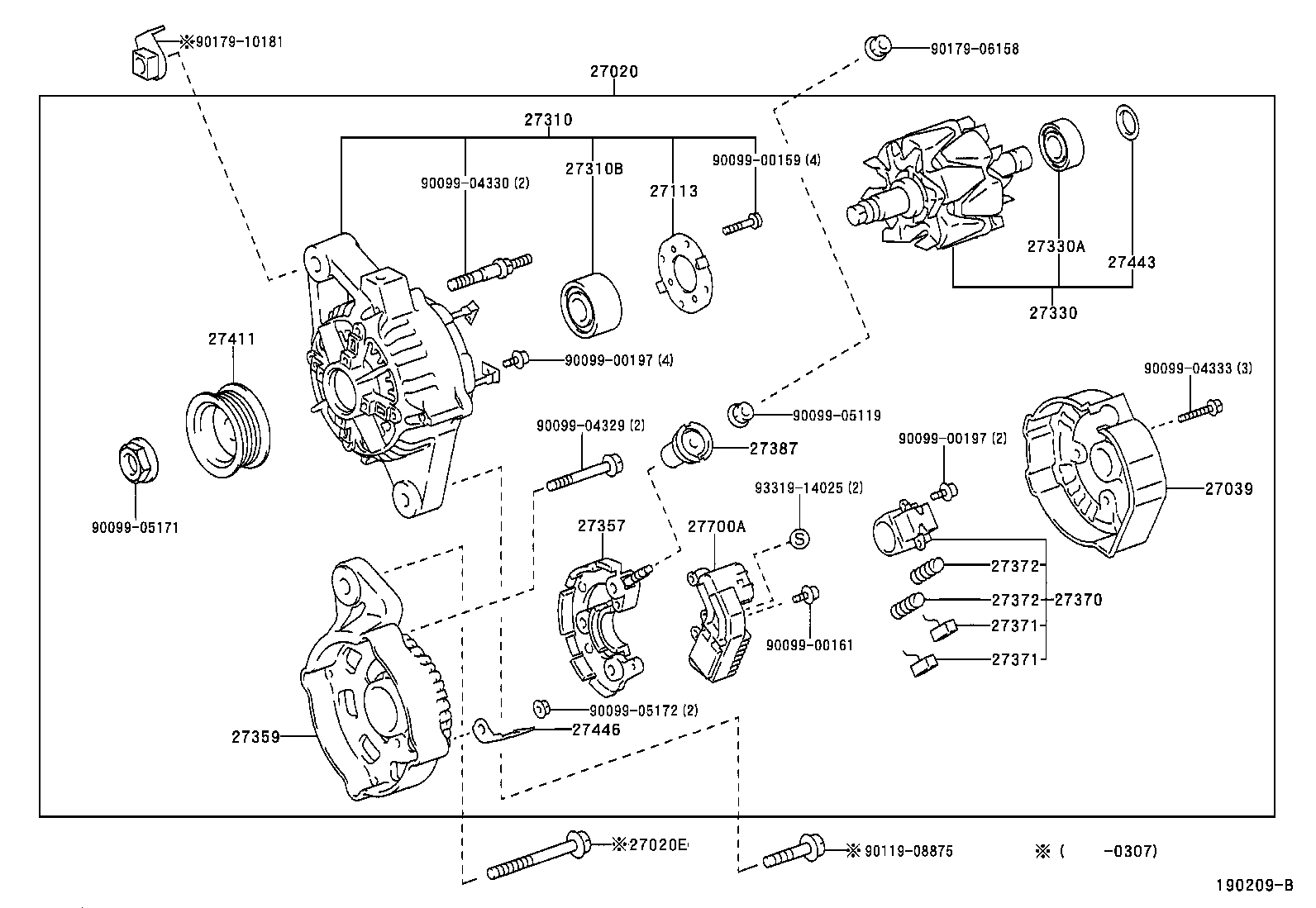

Click highlighted areas on diagram

12V 60A

diagram 27020 27020E 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27371 27372 27372 27387 27411 27443 27446 27700A 9009900159 9009900161 9009900197 9009900197 9009904329 9009904330 9009904333 9009905119 9009905171 9009905172 9011908875 9017906158 9017910181 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-02080

5AFE..AL50..5F..GEN

12V 60A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10336

5AFE..AL50

 1
27039 - COVER, ALTERNATOR REAR END
27039-11190

5AFE..AL50..5F..GEN

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72120

5AFE..AL50..5F..GEN

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-02080

5AFE..AL50..5F..GEN

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10007

5AFE..AL50..5F..GEN

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-02080

5AFE..AL50..5F..GEN

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90068-10006

5AFE..AL50..5F..GEN

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-11170

5AFE..AL50..5F..GEN

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-02080

5AFE..AL50..5F..GEN

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-35060

5AFE..AL50..ATM;5AFE..AL50..5F..GEN

 1
27371 - BRUSH, ALTERNATOR
27371-70300

5AFE..AL50..ATM;5AFE..AL50..5F..GEN

 2
27371 - BRUSH, ALTERNATOR
27371-70300

5AFE..AL50..ATM;5AFE..AL50..5F..GEN

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

5AFE..AL50..ATM;5AFE..AL50..5F..GEN

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-63020

5AFE..AL50..ATM;5AFE..AL50..5F..GEN

 2
27387 - INSULATOR, TERMINAL
27387-10080

5AFE..AL50..5F..GEN

 1
27411 - PULLEY, ALTERNATOR
27411-72120

5AFE..AL50..5F..GEN

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

5AFE..AL50..ATM;5AFE..AL50..5F..GEN

 1
27446 - CLIP, ALTERNATOR CORD
27446-02090

5AFE..AL50..GEN

 1
27700A - REGULATOR ASSY, GENERATOR
27700-15080

5AFE..AL50..5F

 1
Common parts
90099-00159
90099-00161
90099-00197
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90119-08875
90179-06158
90179-10181
93319-14025
