AL50R-AEHNK (1996)

Toyota Soluna

Production Dec 1996 - Oct 1998
Engine 5AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9612- )

Click highlighted areas on diagram

O RING

diagram 9009914119 9009914120 9009914121 9009914122 9009914125
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125

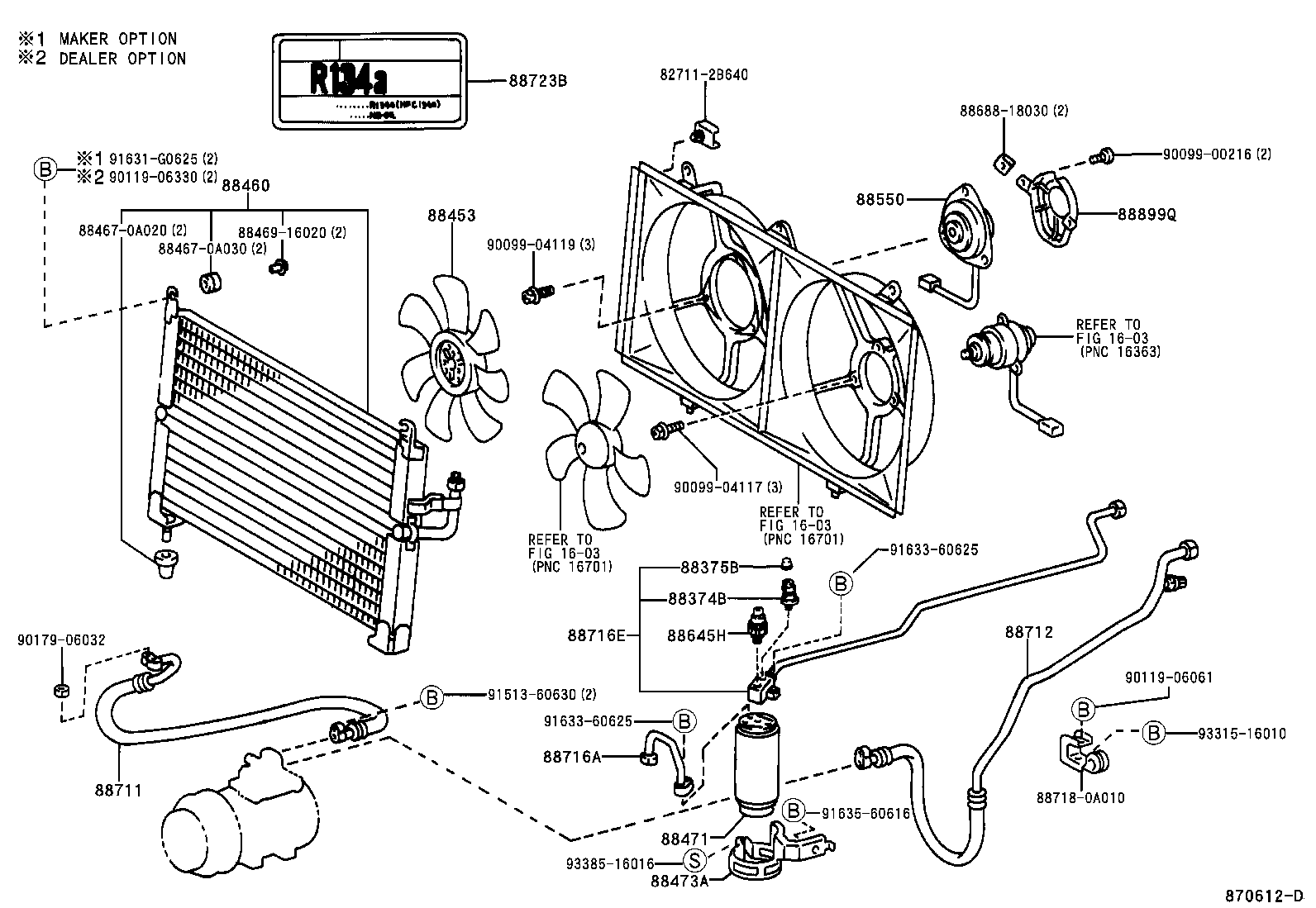

ILLUST NO. 1 OF 2(9612- )3FC,5F..GEN

Click highlighted areas on diagram

diagram 1603 1603 1603 827112B640 88374B 88375B 88453 88460 884670A020 884670A030 8846916020 88471 88473A 88550 88645H 8868818030 88711 88712 88716A 88716E 887180A010 88723B 88899Q 9009900216 9009904117 9009904119 9011906061 9011906330 9017906032 9151360630 91631G0625 9163360625 9163360625 9163560616 9331516010 9338516016
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AL50..3FC,5F

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-0A010

AL50

 1
88460 - CONDENSER ASSY, COOLER
88460-0A010

AL50..GEN

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050

AL50

 1
88473A - HOLDER, RECEIVER
88473-0A010

AL50

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160

AL50

 1
88645H - SWITCH, PRESSURE NO.1
88645-60030

AL50

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0A010

AL50..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-0A010

AL50..(3FC,5F)..GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0A020

AL50

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-0A030

AL50..3FC,5F

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-0A010

AL50..GEN

MAKER OPTION

 1
88899Q - PLATE, COVER
16374-15010

AL50

 1
Common parts
82711-2B640
88467-0A020
88467-0A030
88469-16020
88688-18030
88718-0A010
90099-00216
90099-04117
90099-04119
90119-06061
90119-06330
90179-06032
91513-60630
91631-G0625
91633-60625
91635-60616
93315-16010
93385-16016
Linked diagrams
1603
