AL50R-AEHNK (1996)

Toyota Soluna

Production Dec 1996 - Oct 1998
Engine 5AFE
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9612-9810)3FC

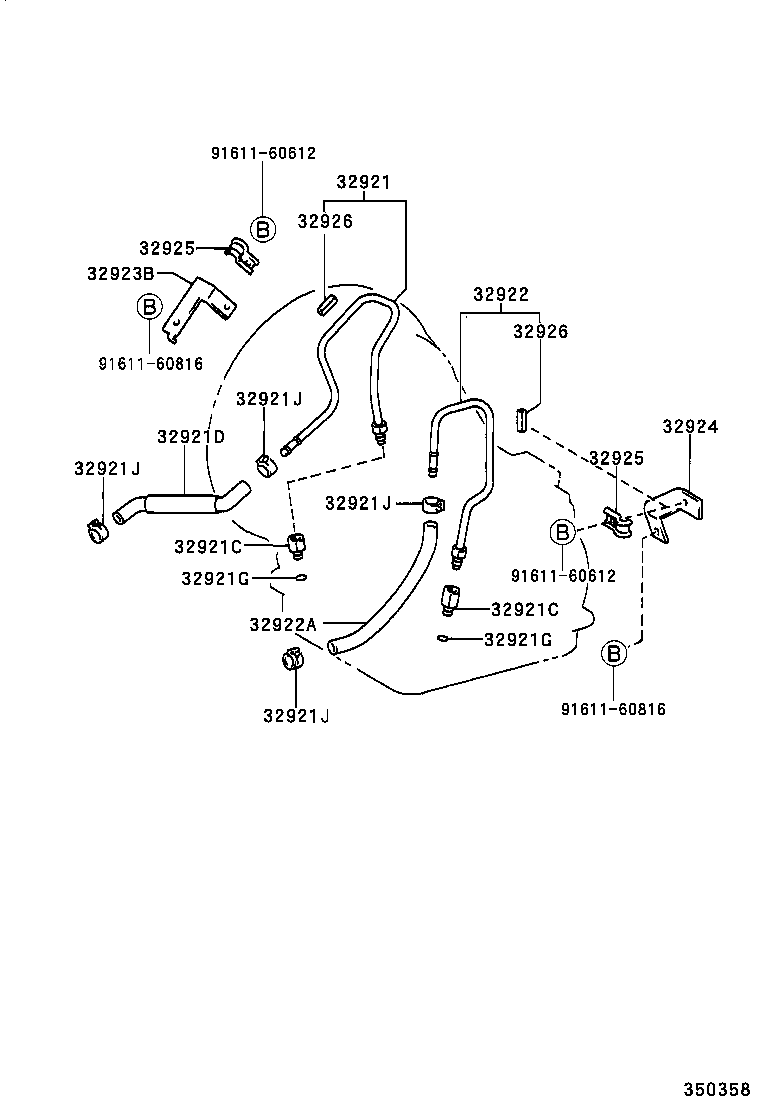

Click highlighted areas on diagram

A131L

diagram 32921 32921C 32921C 32921D 32921G 32921G 32921J 32921J 32921J 32921J 32922 32922A 32923B 32924 32925 32925 32926 32926 9161160612 9161160612 9161160816 9161160816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-16140

AL50..3FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

AL50..3FC

OUTLET

 1
90404-14007

AL50..ATM

INLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

AL50..3FC

OUTLET

 1
90404-14007

AL50..ATM

INLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-15020

AL50..3FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AL50..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

AL50..ATM

 2
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AL50..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AL50..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AL50..ATM

 4
32921J - CLIP(FOR OIL COOLER HOSE)
90467-13039

AL50..ATM

 4
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-16100

AL50..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15058

AL50..3FC

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32923-12160

AL50..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-12040

AL50..3FC

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
90462-10082

AL50..3FC

 2
32925 - CLAMP, OIL COOLER TUBE, NO.3
90462-10082

AL50..3FC

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL50..3FC

L=25,ID=8

 1
32926-10010

AL50..3FC

L=30,ID=8

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

AL50..3FC

L=25,ID=8

 1
32926-10010

AL50..3FC

L=30,ID=8

 1
Common parts
91611-60612
91611-60816
